NSN 3010-01-086-6026 00263057, 0026-3057, 01-086-6026
Product Details | SHAFT COUPLING HALF
3010-01-086-6026 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 00263057, 0026-3057, 3010-01-086-6026, 01-086-6026, 3010010866026, 010866026
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 DEC 1979 | 01-086-6026 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-01-086-6026
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-086-6026
Related Products | NSN 3010-01-086-6026
Technical Data | NSN 3010-01-086-6026
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, CL 303, COND A FED SPEC SINGLE MATERIAL RESPONSE |

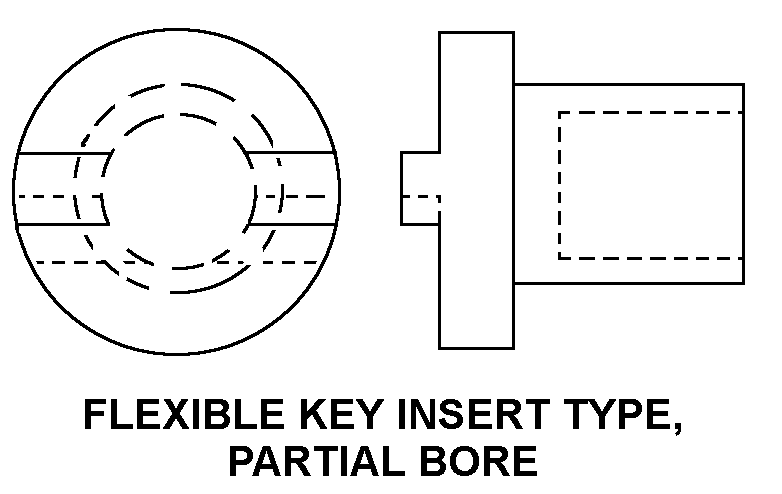

| BODY STYLE | A4 FLEXIBLE KEYWAY INSERT TYPE, PARTIAL BORE |
| OVERALL LENGTH | 0.400 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| BORE LENGTH | 0.2300 INCHES NOMINAL |
| SPECIAL FEATURES | EXTERIOR SLOTS 4 PLACES BORE END 0.030" WD BY 0.230" LG; SURFACE TREATMENT:PASSIVATED OR NICKEL PLATED; OFFSET DISTANCE BETWEEN CENTERLINES OF BORE AND BODY KEYING FACILITY:0.062" NOM.; BODY KEYING FACILITY WD:0.125" NOM.; KEYING FACILITY AND BORE COUNTERBORE FEATURE:NOT INCLUDED; O/A OUTSIDE DIMENSION:1/2" OD; HUB OD:0.312" NOM.; THREAD PROVISION:UNTHREADED; FLANGE THICKNESS:0.160" NOM. |
Restrictions/Controls & Freight Information | NSN 3010-01-086-6026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-086-6026
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
