NSN 3010-01-503-7864 4016-1.00IN BORE, 4016100INBORE, 906933
Product Details | SHAFT COUPLING HALF
3010-01-503-7864 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 4016-1.00IN BORE, 4016100INBORE, 906933, 906933 REV A, 906933REVA, 3010-01-503-7864, 01-503-7864, 3010015037864, 015037864
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 JAN 2003 | 01-503-7864 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-01-503-7864
Demand History | NSN 3010-01-503-7864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4016-1.00IN BORE | 2024-06-158 | 70 | DIBBS |
| 906933 REV A | 2024-06-158 | 70 | DIBBS |
| 3010-01-503-7864 | 2015-07-211 | 33 | DIBBS |
| 3010-01-503-7864 | 2014-10-294 | 4 | DIBBS |
| 3010-01-503-7864 | 2014-10-294 | 4 | DIBBS |
| 3010-01-503-7864 | 2011-02-38 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-503-7864
Related Products | NSN 3010-01-503-7864
Technical Data | NSN 3010-01-503-7864
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE |

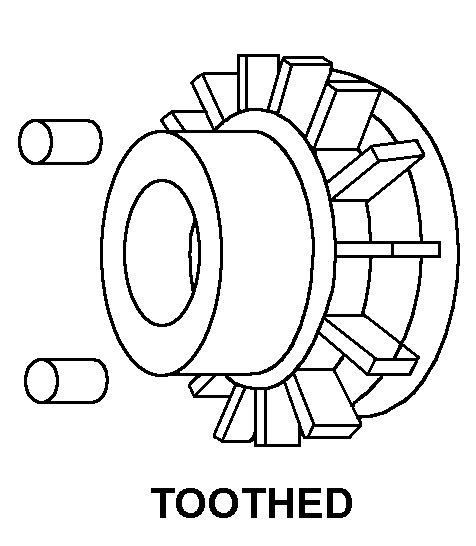

| BODY STYLE | A27 TOOTHED |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.810 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| BORE LENGTH | 1.1250 INCHES NOMINAL |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | SETSCREW IS SUPPLIED, THREADS: .25-20 X .375; KEYWAY: 1/4 X 1/8; SIZE: 40-16 |
| III END ITEM IDENTIFICATION | PUMP UNIT 50GPM 50PSIG |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ROLLER CHAIN FLEXIBLE COUPLING HALF/1.00 IN BORE |
Restrictions/Controls & Freight Information | NSN 3010-01-503-7864
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-503-7864
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
