NSN 3020-00-038-4335 AR05065, BM70958, BM73808
Product Details | CONE PULLEY
3020-00-038-4335 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: AR05065, BM70958, BM73808, 3020-00-038-4335, 00-038-4335, 3020000384335, 000384335
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-038-4335 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-00-038-4335
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-038-4335
Related Products | NSN 3020-00-038-4335
Technical Data | NSN 3020-00-038-4335
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 3.250 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 9.500 INCHES NOMINAL AND 7.250 INCHES NOMINAL |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.750 INCHES NOMINAL AND 0.750 INCHES NOMINAL AND 0.625 INCHES NOMINAL |
| GROOVE WIDTH | 0.873 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| GROOVE RADIUS | 0.031 INCHES NOMINAL |

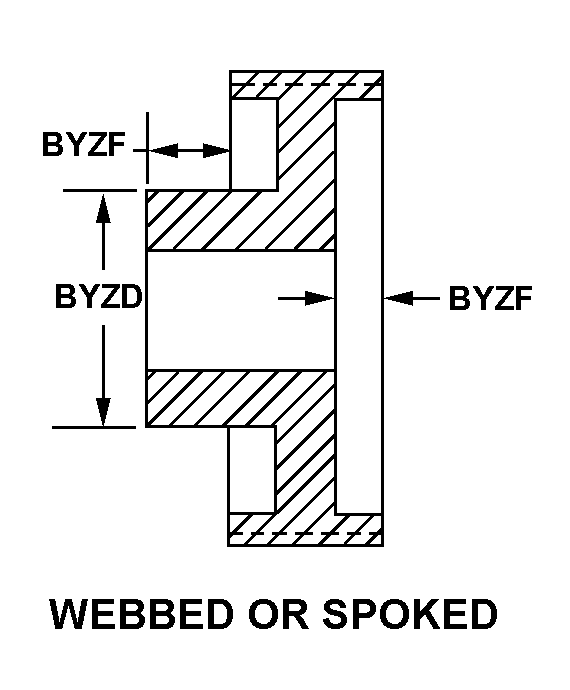

| STYLE DESIGNATOR | E14 WEBBED OR SPOKED |
| DESIGN FORM | PLAIN |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | IRON, 41-002-00, CUMMINS ENGINE CO OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 1.375 INCHES MINIMUM AND 1.376 INCHES MAXIMUM |
| BORE LENGTH | 1.609 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYING FACILITY SPACING IN DEG | ANY ACCEPTABLE |
| KEYWAY WIDTH | 0.313 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.8362 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.128 INCHES MAXIMUM AA END AND 2.123 INCHES MINIMUM AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.047 INCHES NOMINAL AA END |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | DRILLED HOLE OR THREADED HOLE |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 3 |
| THREAD SIZE | 7/16-14 |
| HOLE LOCATION | ONE HOLE ON TOP OF KEYWAY,ONE HOLE 180 DEG FROM KEYWAY,ONE HOLE 90 DEG FROM KEYWAY |
| BOLT CIRCLE DIAMETER | 3.750 INCHES NOMINAL |
| DRILLED HOLE DIAMETER | 0.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 15434 |
| DESIGN CONTROL REFERENCE | AR05065 |
Restrictions/Controls & Freight Information | NSN 3020-00-038-4335
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-038-4335
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
