NSN 3020-00-042-0427 3905995, 00-042-0427, 000420427
Product Details | GROOVE PULLEY
3020-00-042-0427 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 3905995, 3020-00-042-0427, 00-042-0427, 3020000420427, 000420427
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 15 MAY 1968 | 00-042-0427 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-042-0427
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-042-0427
Technical Data | NSN 3020-00-042-0427
| Characteristic | Specifications |
|---|---|

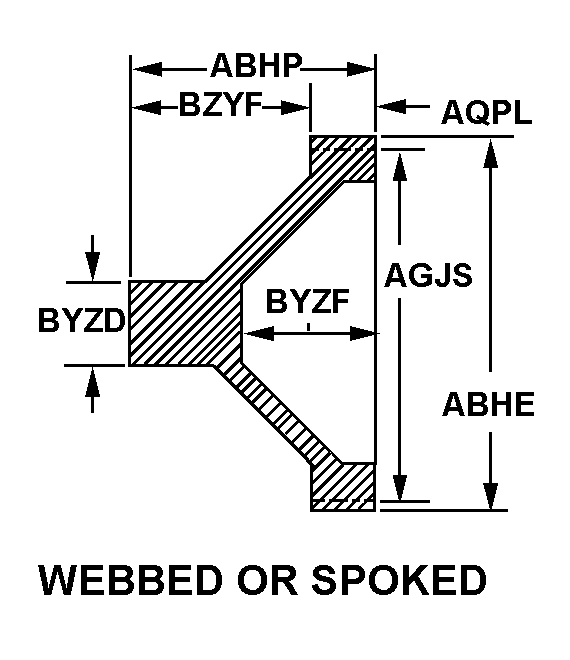

| STYLE DESIGNATOR | A16 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 7.075 INCHES MINIMUM AND 7.135 INCHES MAXIMUM |
| OVERALL LENGTH | 2.705 INCHES NOMINAL |
| PITCH DIAMETER | 7.000 INCHES NOMINAL |
| FACE WIDTH | 0.630 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.970 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 2.075 INCHES NOMINAL AA END AND 2.631 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL, FED STD 66, AISI/SAE 1008 OVERALL OR STEEL, SAE 1010 OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.430 INCHES NOMINAL |
| GROOVE WIDTH | 0.380 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.5 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.6275 INCHES MINIMUM AND 0.6295 INCHES MAXIMUM |
| BORE LENGTH | 0.074 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | DRILLED HOLE |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 4 |
| HOLE LOCATION | ON HUB END 120 DEG APART |
| BOLT CIRCLE DIAMETER | 1.750 INCHES NOMINAL |
| DRILLED HOLE DIAMETER | 0.344 INCHES NOMINAL |
| MANUFACTURERS CODE | 7X677 |
| DESIGN CONTROL REFERENCE | 3905995 |
Restrictions/Controls & Freight Information | NSN 3020-00-042-0427
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127320 | PULLEYS/SHEAVES,NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
