NSN 3020-00-047-3884 HEPC061347, HEPC061-347, 00-047-3884
Product Details | FLAT PULLEY
3020-00-047-3884 A pulley with a straight or crowned face. The item may include belt aligning flange(s). Excludes PULLEY, CONE. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: HEPC061347, HEPC061-347, 3020-00-047-3884, 00-047-3884, 3020000473884, 000473884
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-047-3884 | 08111 ( PULLEY, FLAT ) |
Drawings & Photos | NSN 3020-00-047-3884
Cross Reference | NSN 3020-00-047-3884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HEPC061-347 | 82204 | HENRY PRODUCTS DIV CARDWELL CONDENSER CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-047-3884
Technical Data | NSN 3020-00-047-3884
| Characteristic | Specifications |
|---|---|

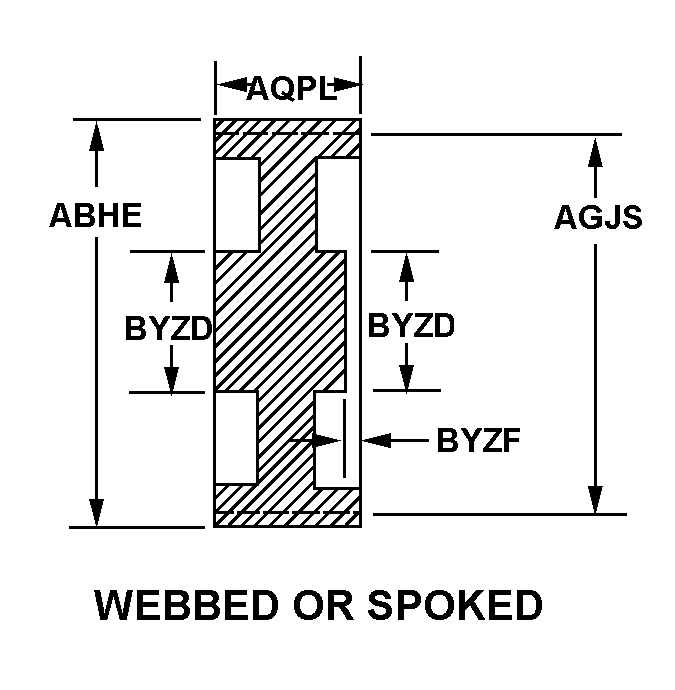

| STYLE DESIGNATOR | A12 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 6.875 INCHES NOMINAL |
| FACE WIDTH | 1.500 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.281 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.438 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| CROWN FACE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT | PAINTED |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.625 INCHES NOMINAL |
| BORE LENGTH | 1.062 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 2 |
| KEYWAY WIDTH | 0.312 INCHES NOMINAL |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.969 INCHES NOMINAL |
| KEYWAY SPACING IN DEG | 180.0 |
| SPLIT HUB FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 3020-00-047-3884
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
