Product Details | GEAR CLUSTER
3020-00-070-1158 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 6855871, 3020-00-070-1158, 00-070-1158, 3020000701158, 000701158
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 JUL 1967 | 00-070-1158 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-070-1158
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-070-1158
Related Products | NSN 3020-00-070-1158
Technical Data | NSN 3020-00-070-1158
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI-416 ASSN STD 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171,TABLE V,FINISH 5.4 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONSTRUCTION | SOLID |
| DESIGN TYPE | SPUR ALL GEARS |
| NOMINAL OUTSIDE DIAMETER | 0.449 INCHES FIRST GEAR 0.216 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.520 INCHES |

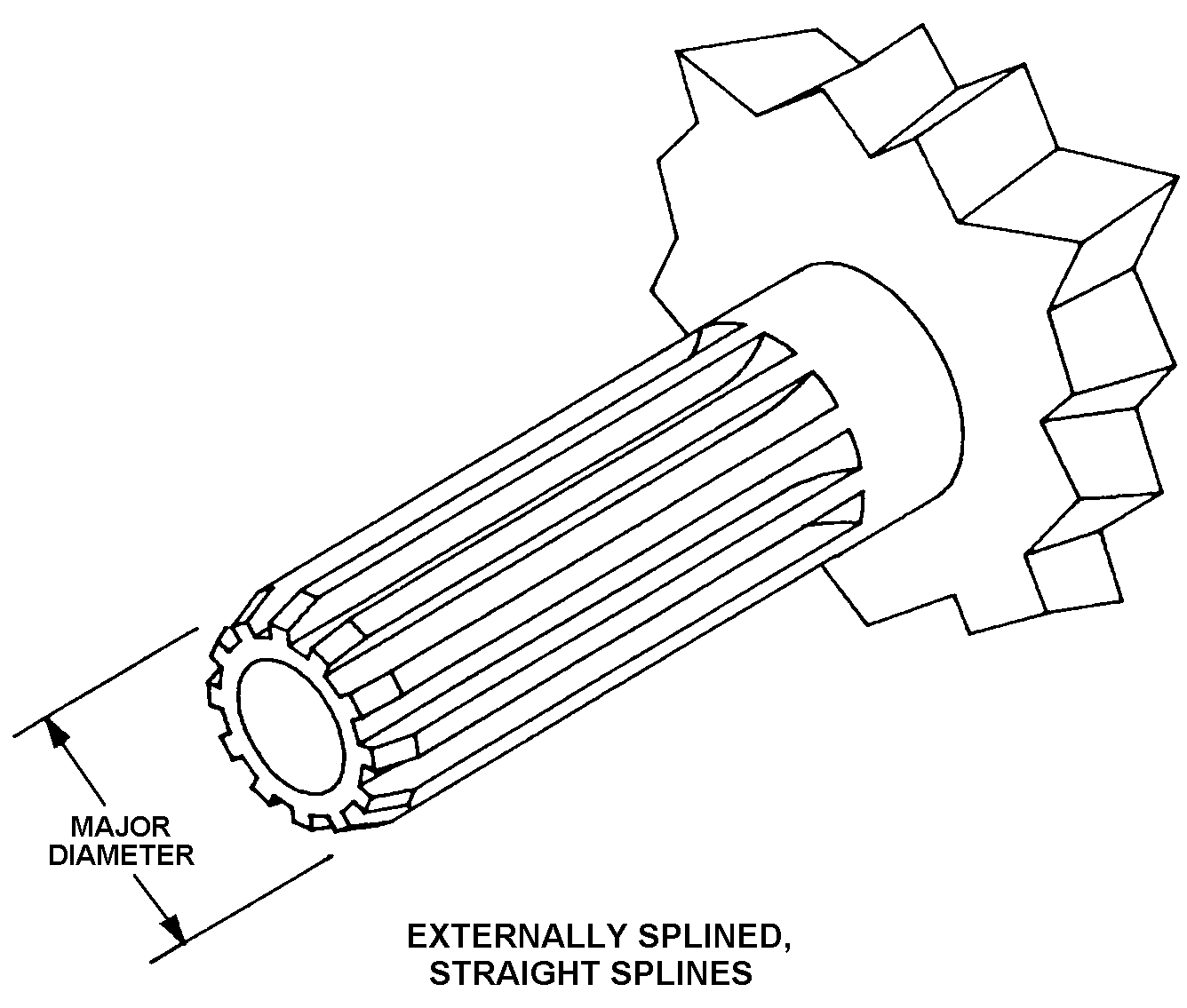

| HUB STYLE DESIGNATOR | 7 EXTERNALLY SPLINED, STRAIGHT SPLINES BOTH ENDS |
| HUB NOMINAL LENGTH | 0.130 INCHES BOTH ENDS |
| HUB NOMINAL DIAMETER | 0.125 INCHES BOTH ENDS |
