Product Details | GROOVE PULLEY
3020-00-079-8368 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 5116483, 3020-00-079-8368, 00-079-8368, 3020000798368, 000798368
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 06 DEC 1967 | 00-079-8368 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-079-8368
Demand History | NSN 3020-00-079-8368
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-079-8368 | 2013-12-344 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-079-8368
Related Products | NSN 3020-00-079-8368
Technical Data | NSN 3020-00-079-8368
| Characteristic | Specifications |
|---|---|

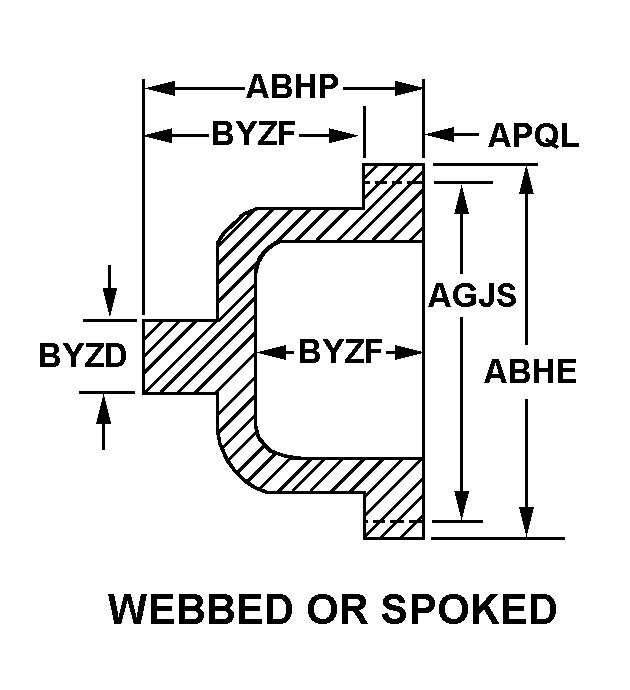

| STYLE DESIGNATOR | A19 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 5.380 INCHES NOMINAL |
| OVERALL LENGTH | 3.220 INCHES NOMINAL |
| FACE WIDTH | 1.760 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.496 INCHES MINIMUM AA END AND 1.499 INCHES MAXIMUM AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.280 INCHES NOMINAL AA END AND 1.480 INCHES NOMINAL BB END |
| DESIGN FORM | SPOKED AND QEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | IRON, CAST OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 2 |
| GROOVE DEPTH | 0.562 INCHES NOMINAL |
| GROOVE WIDTH | 0.500 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.0 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.744 INCHES MINIMUM AND 0.745 INCHES MAXIMUM |
| BORE LENGTH | 1.340 INCHES NOMINAL |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | AA END |
| COUNTERBORE DIAMETER | 1.120 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.520 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | THREADED HOLE |
| SECURING LOCATION | PULLEY SURFACE |
| SECURING HOLE QUANTITY | 4 |
| THREAD SIZE | 5.16-18 |
| HOLE LOCATION | EQUALLY SPACE 90.0 DEG APART PARALLEL TO BORE ON 2.875 IN.DIA BOLT CIRCLE |
| MANUFACTURERS CODE | 72582 |
| DESIGN CONTROL REFERENCE | 5116483 |
