NSN 3020-00-141-8886 AD33622, AD3362-2, 00-141-8886
Product Details | FLAT PULLEY
3020-00-141-8886 A pulley with a straight or crowned face. The item may include belt aligning flange(s). Excludes PULLEY, CONE. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: AD33622, AD3362-2, 3020-00-141-8886, 00-141-8886, 3020001418886, 001418886
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-141-8886 | 08111 ( PULLEY, FLAT ) |
Drawings & Photos | NSN 3020-00-141-8886
Cross Reference | NSN 3020-00-141-8886
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AD3362-2 | 54370 | ALFA LAVAL INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-141-8886
Technical Data | NSN 3020-00-141-8886
| Characteristic | Specifications |
|---|---|

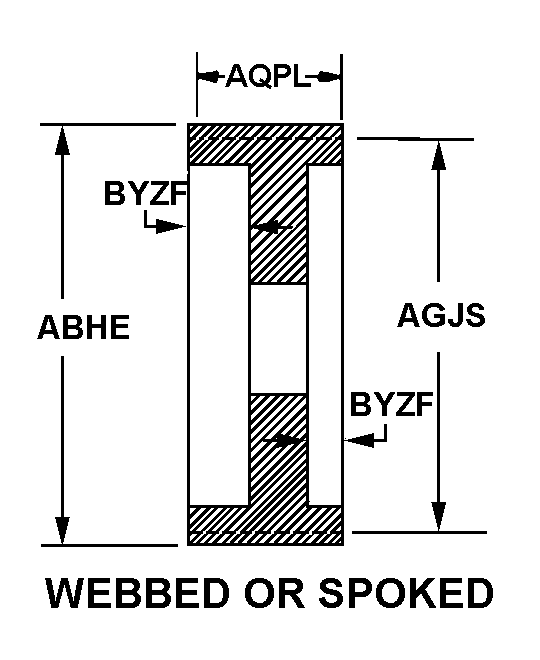

| STYLE DESIGNATOR | A9 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 9.000 INCHES NOMINAL |
| FACE WIDTH | 2.000 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.250 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| CROWN FACE | INCLUDED |
| MATERIAL AND LOCATION | PLASTIC, PHENOLIC LAMINATE OVERALL |
| SURFACE TREATMENT | PAINTED |
| RIM TYPE | SOLID |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | TAPERED |
| BORE LENGTH | 1.500 INCHES NOMINAL |
| TAPER BORE MAJOR DIAMETER | 1.682 INCHES NOMINAL |
| TAPER BORE MINOR DIAMETER | 1.380 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 3020-00-141-8886
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127320 | PULLEYS/SHEAVES,NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-141-8886
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
