NSN 3020-00-171-2603 9L5443, 00-171-2603, 001712603
Product Details | GROOVE PULLEY
3020-00-171-2603 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 9L5443, 3020-00-171-2603, 00-171-2603, 3020001712603, 001712603
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 16 FEB 1973 | 00-171-2603 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-171-2603
Cross Reference | NSN 3020-00-171-2603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9L5443 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-171-2603
Related Products | NSN 3020-00-171-2603
Technical Data | NSN 3020-00-171-2603
| Characteristic | Specifications |
|---|---|

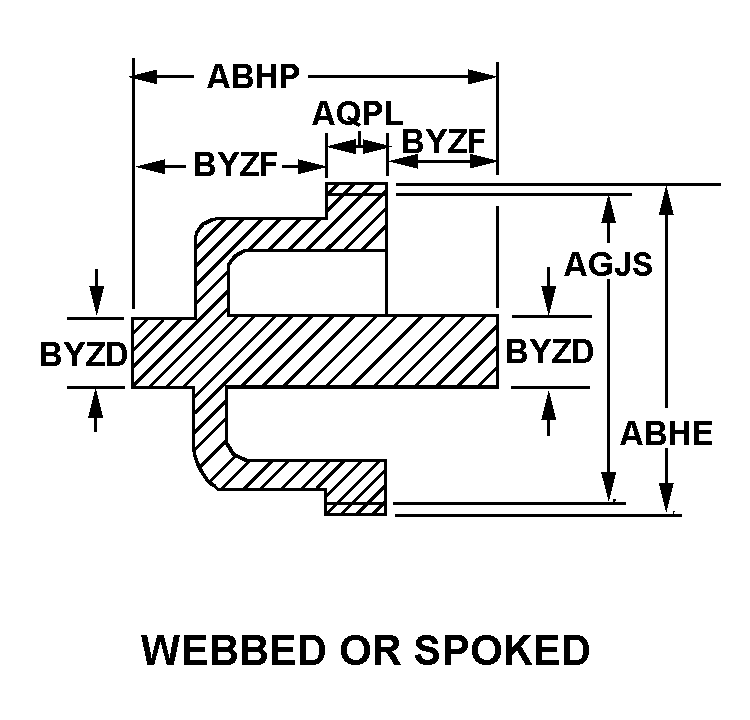

| STYLE DESIGNATOR | A22 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| OVERALL LENGTH | 4.480 INCHES NOMINAL |
| PITCH DIAMETER | 7.800 INCHES NOMINAL |
| FACE WIDTH | 1.346 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 3.500 INCHES NOMINAL AA END AND 4.499 INCHES NOMINAL BB END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 2.059 INCHES NOMINAL AA END AND 1.075 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | IRON,GRAY,FED,QQ-I-652,CLASS 30 OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 2 |
| GROOVE DEPTH | 0.577 INCHES NOMINAL |
| GROOVE WIDTH | 0.500 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.0 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | TAPERED |
| BORE LENGTH | 4.480 INCHES NOMINAL |
| TAPER BORE MAJOR DIAMETER | 2.490 INCHES NOMINAL |
| TAPER BORE MINOR DIAMETER | 2.020 INCHES NOMINAL |
| TAPER MAJOR DIAMETER LOCATION | AA END |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | STEPPED |
| FIRST STEP FACE LARGEST DIAMETER AND LOCATION | 3.750 INCHES NOMINAL AA END AND 6.380 INCHES NOMINAL BB END |
| FIRST STEP LENGTH AND LOCATION | 1.000 INCHES NOMINAL AA END AND 0.276 INCHES NOMINAL BB END |
| SECOND STEP LENGTH AND LOCATION | 1.059 INCHES NOMINAL AA END AND 0.799 INCHES NOMINAL BB END |
| HUB END OUTSIDE DIAMETER AND LOCATION | 3.500 INCHES NOMINAL AA END AND 4.499 INCHES NOMINAL BB END |
| SPLIT HUB FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 3020-00-171-2603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127320 | PULLEYS/SHEAVES,NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-171-2603
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
