NSN 3020-00-209-3591 342726, 3427261, 342726-1
Product Details | SPUR GEAR-SLIP CLUTCH
3020-00-209-3591 A slip clutch gear with complements of spur gear teeth.
Part Alternates: 342726, 3427261, 342726-1, 3020-00-209-3591, 00-209-3591, 3020002093591, 002093591
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 APR 1973 | 00-209-3591 | 28187 ( GEAR-SLIP CLUTCH, SPUR ) |
Drawings & Photos | NSN 3020-00-209-3591
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-209-3591
Related Products | NSN 3020-00-209-3591
Technical Data | NSN 3020-00-209-3591
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TOOTH FORM | STUB |

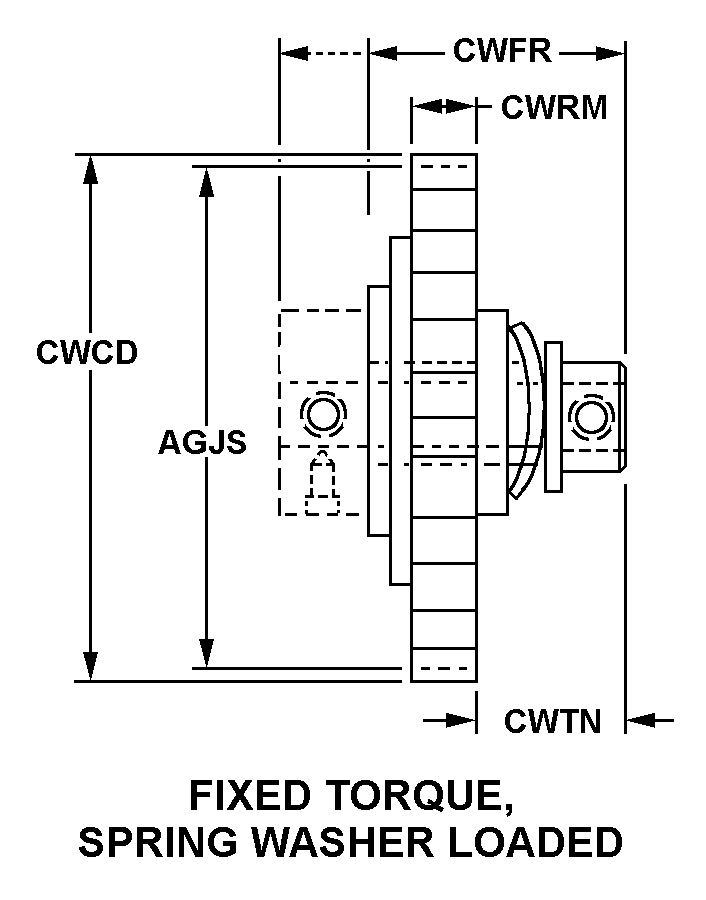

| STYLE DESIGNATOR | 56 FIXED TORQUE, SPRING WASHER LOADED |
| MANUFACTURERS CODE | 26581 |
| DESIGN CONTROL REFERENCE | 342726-1 |
Restrictions/Controls & Freight Information | NSN 3020-00-209-3591
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
