NSN 3020-00-222-3933 116066, 116066PC3, 00-222-3933
Product Details | GEAR RACK
3020-00-222-3933 A bar-like item with gear teeth on one face for engaging with a spur, bevel, or worm gear, or the like. It is specifically designed for straight line motion.
Part Alternates: 116066, 116066PC3, 3020-00-222-3933, 00-222-3933, 3020002223933, 002223933
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 00-222-3933 | 05135 ( GEAR RACK ) |
Drawings & Photos | NSN 3020-00-222-3933
Demand History | NSN 3020-00-222-3933
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 116066 | 2011-03-66 | 2 | TH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-222-3933
Technical Data | NSN 3020-00-222-3933
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMATE HUB |
| TEETH QUANTITY | 11 |
| TEETH TYPE | SPUR |
| PRESSURE ANGLE | 14.5000 DEGREES |

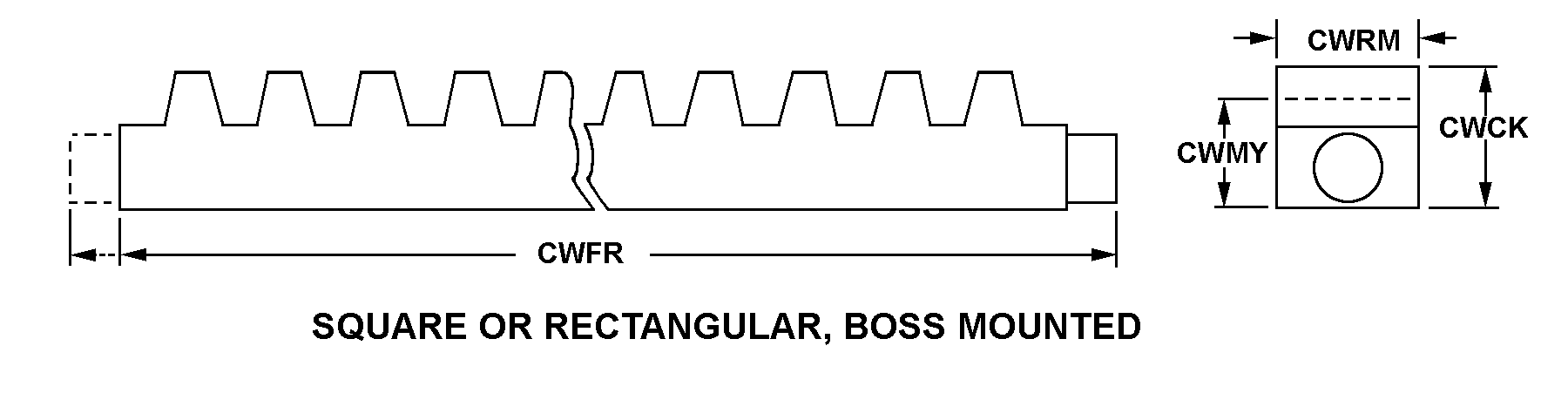

| STYLE DESIGNATOR | 51 SQUARE OR RECTANGULAR, BOSS MOUNTED |
| PITCH HEIGHT | 0.5625 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 11.000 INCHES |
| FACE NOMINAL WIDTH | 0.600 INCHES |
| NOMINAL THICKNESS | 0.687 INCHES |
| BOSS NOMINAL LENGTH | 6.300 INCHES SECOND END |
| BOSS NOMINAL DIAMETER | 0.812 INCHES SECOND END |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 1 PLAIN AXIALLY THROUGH HUB, SECOND END |
| MOUNTING HOLE NOMINAL DIAMETER | 0.185 INCHES AXIALLY THROUGH HUB, SECOND END |
Restrictions/Controls & Freight Information | NSN 3020-00-222-3933
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
