Product Details | CONE PULLEY
3020-00-282-8074 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 7903448, 3020-00-282-8074, 00-282-8074, 3020002828074, 002828074
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 26 AUG 1973 | 00-282-8074 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-00-282-8074
Cross Reference | NSN 3020-00-282-8074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7903448 | 93322 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3020-00-282-8074
3020-00-283-0993, 3020-00-283-2198, 3020-00-283-2200, 3020-00-283-2201, 3020-00-283-2221
Technical Data | NSN 3020-00-282-8074
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP CONE |
| STEP QUANTITY | 2 |
| FACE WIDTH | 0.375 INCHES NOMINAL AND 0.375 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 1.875 INCHES NOMINAL AND 0.326 INCHES NOMINAL |

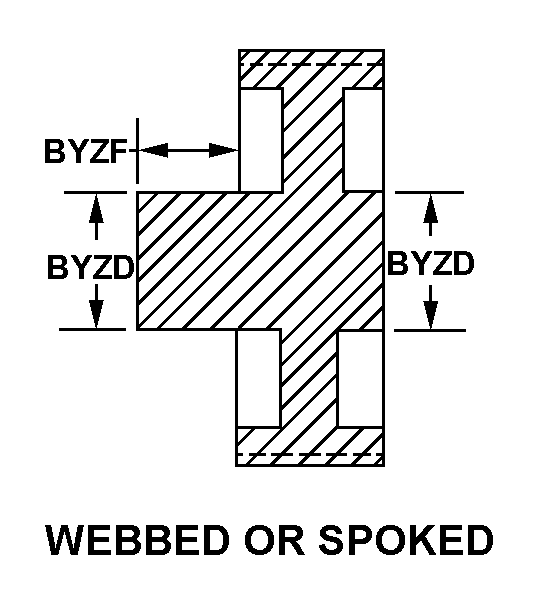

| STYLE DESIGNATOR | E6 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | BOTH ENDS |
| COUNTERBORE DIAMETER | 0.375 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.125 INCHES NOMINAL |
| BORE DIAMETER | 0.198 INCHES NOMINAL |
| BORE LENGTH | 1.000 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| MANUFACTURERS CODE | 93322 |
| DESIGN CONTROL REFERENCE | 7903448 |
