NSN 3020-00-287-6739 185N201, 00-287-6739, 002876739
Product Details | SPUR GEAR
3020-00-287-6739 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 185N201, 3020-00-287-6739, 00-287-6739, 3020002876739, 002876739
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-287-6739 | 05466 ( GEAR, SPUR ) |

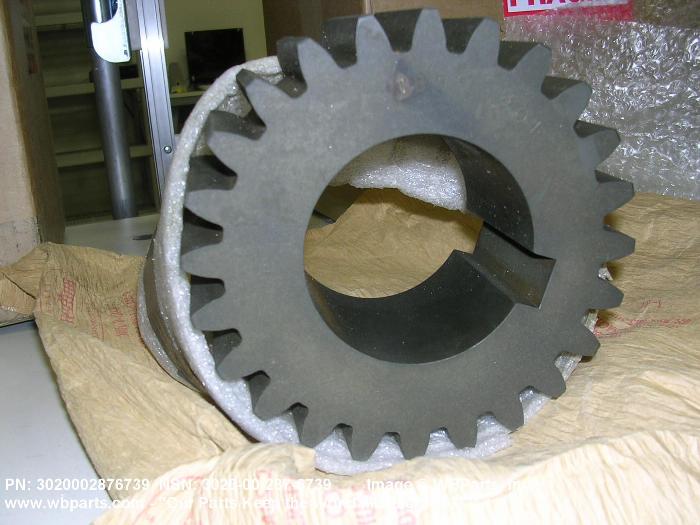

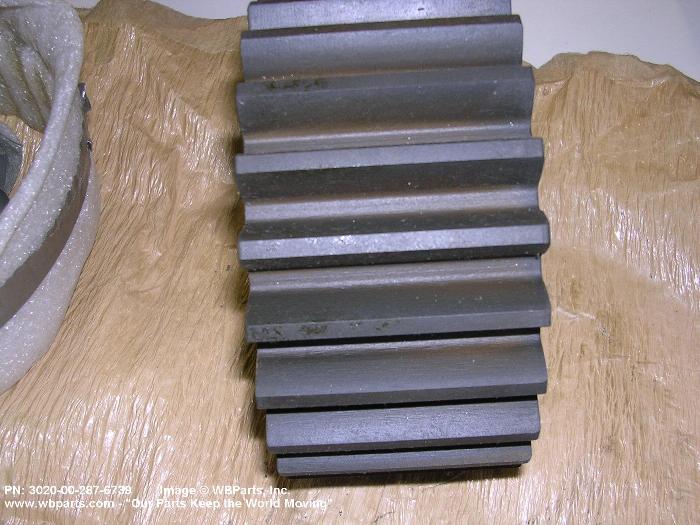

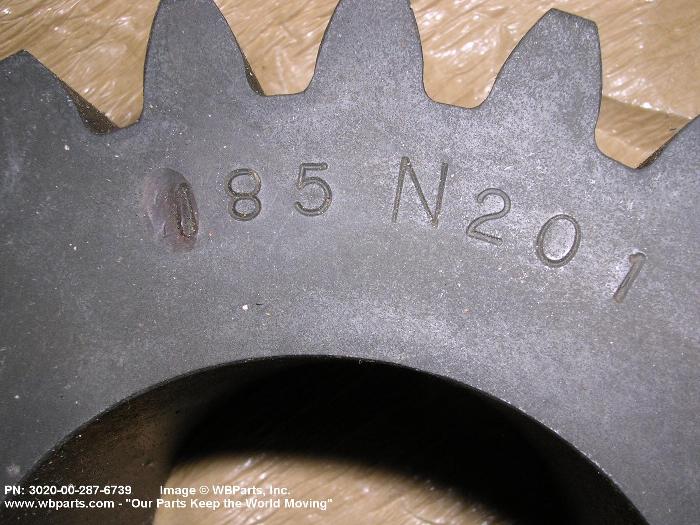

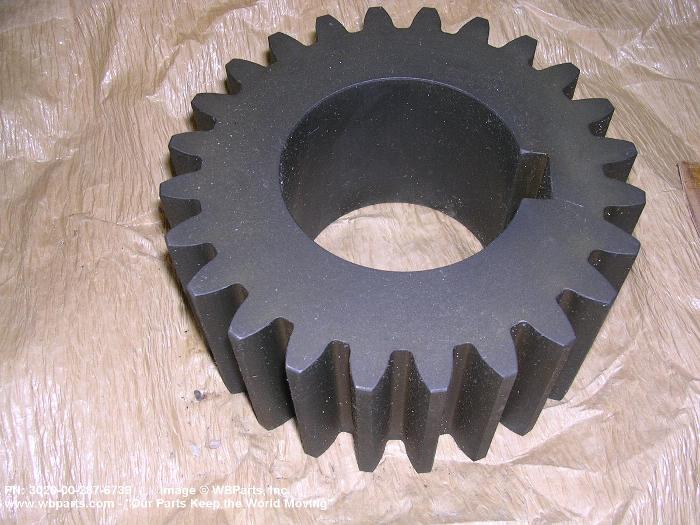

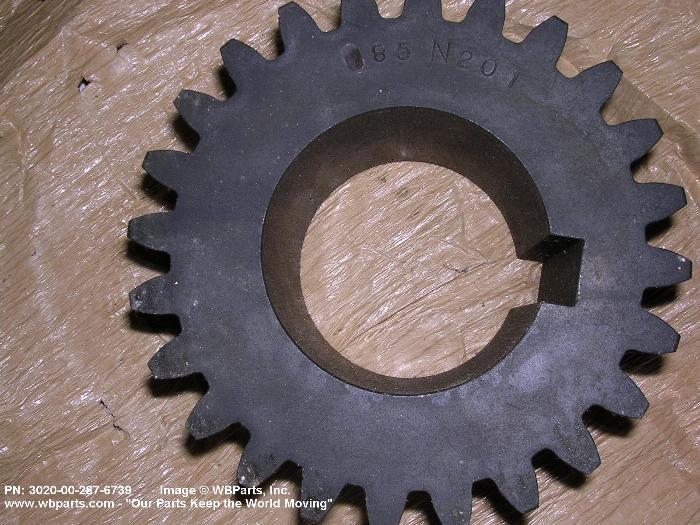

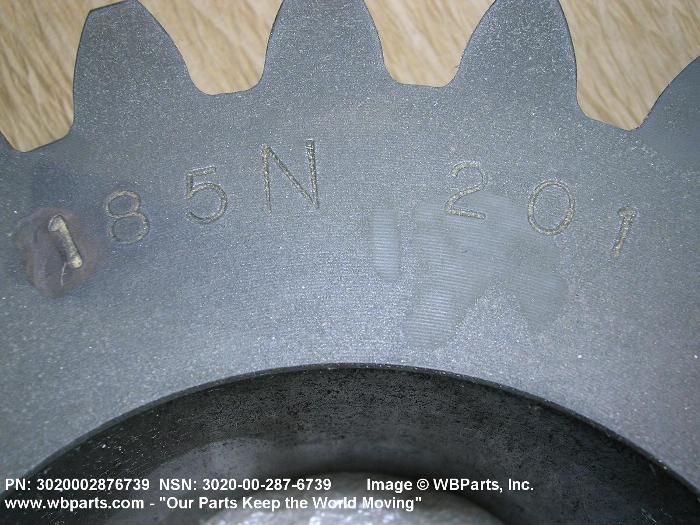

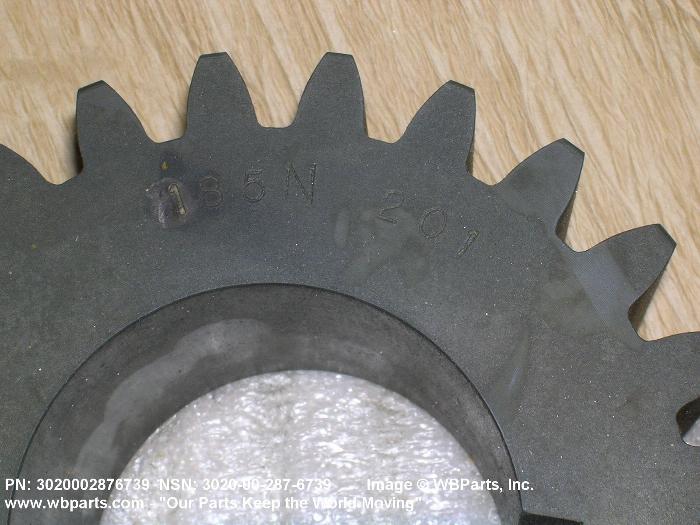

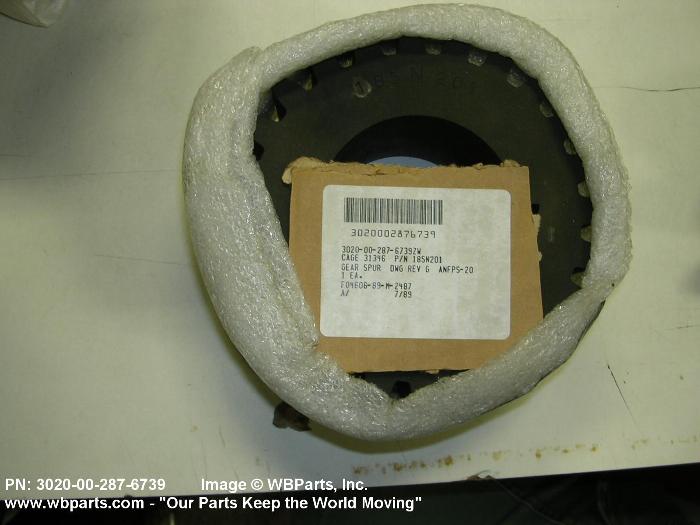

Drawings & Photos | NSN 3020-00-287-6739
Demand History | NSN 3020-00-287-6739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 185N201 | 2009-04-114 | 1 | United States |
| 3020-00-287-6739 | 2008-12-347 | 4 | DIBBS |
| 3020-00-287-6739 | 2008-12-339 | 1 | United States |
| 185N201 | 2008-11-310 | 1 | US |
| 3020-00-287-6739 | 2008-10-286 | 1 | DIBBS |
| 3020-00-287-6739 | 2008-04-100 | 10 | United States |
| 185N201 | 2008-01-14 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-287-6739
Related Products | NSN 3020-00-287-6739
Technical Data | NSN 3020-00-287-6739
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 24 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 1 HUBLESS |
| PITCH DIAMETER | 6.0000 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 6.500 INCHES |
| FACE NOMINAL WIDTH | 3.062 INCHES |
| BORE STYLE | 10A W/KEYWAY BOTH ENDS |
| BORE NOMINAL DIAMETER | 3.249 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.750 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 1.999 INCHES BOTH ENDS |
| BODY STYLE | 1 PLAIN, SOLID |
| SPECIAL FEATURES | N/H/A 5840-00-338-2123, GEAR REDUCER |
| III END ITEM IDENTIFICATION | AN/FPS-20 |
| MANUFACTURERS CODE | 73842 |
| DESIGN CONTROL REFERENCE | 185N201 |
Restrictions/Controls & Freight Information | NSN 3020-00-287-6739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-287-6739
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
