Product Details | BEVEL GEAR SECTOR
3020-00-314-5936 A gear sector with complements of bevel gear teeth.
Part Alternates: 195586, 3020-00-314-5936, 00-314-5936, 3020003145936, 003145936
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-314-5936 | 28375 ( GEAR SECTOR, BEVEL ) |
Drawings & Photos | NSN 3020-00-314-5936
Demand History | NSN 3020-00-314-5936
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 195586 | 2025-12-365 | 5 | DIBBS |
| 195586 | 2025-12-355 | 5 | DIBBS |
| 195586 | 2025-03-85 | 3 | DIBBS |
Cross Reference | NSN 3020-00-314-5936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 195586 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-314-5936
Related Products | NSN 3020-00-314-5936
Technical Data | NSN 3020-00-314-5936
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5610 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 15 |
| TEETH TYPE | STRAIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PITCH ANGLE | 63.0000 DEGREES |

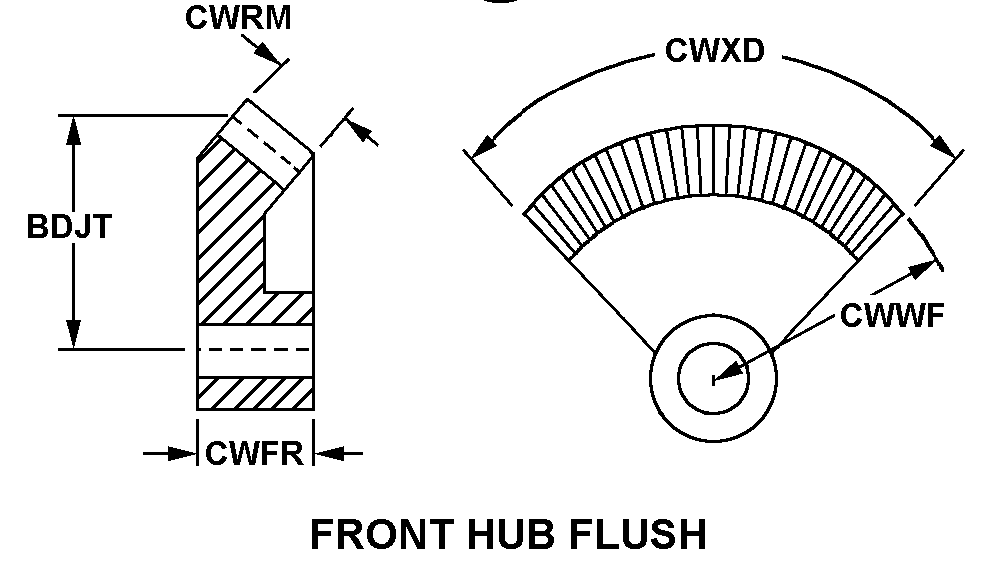

| STYLE DESIGNATOR | 65 FRONT HUB FLUSH |
| PITCH RADIUS | 1.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.188 INCHES |
| FACE NOMINAL WIDTH | 0.245 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.875 INCHES SECOND END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.969 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 4A 1 STEP SECOND END |
| END NOMINAL LENGTH | 0.875 INCHES SECOND END |
| END NOMINAL DIAMETER | 1.124 INCHES SECOND END |
| FIRST STEP NOMINAL LENGTH | 0.109 INCHES SECOND END |
| FIRST STEP NOMINAL DIAMETER | 1.391 INCHES SECOND END |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MANUFACTURERS CODE | 06848 |
| DESIGN CONTROL REFERENCE | 195586 |
