Product Details | GROOVE PULLEY
3020-00-330-5295 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 2000, 7599873, 3020-00-330-5295, 00-330-5295, 3020003305295, 003305295
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-330-5295 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-330-5295
Demand History | NSN 3020-00-330-5295
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2000 | 2019-03-06 | 1 | |
| 2000 | 2018-11-17 | 6 | |
| 2000 | 2018-07-30 | 30 | Saudi Arabia |
| 2000 | 2018-04-20 | 5 | US |
| 2000 | 2017-09-16 | 12 | Saudi Arabia |
| 2000 | 2017-09-07 | 12 | Saudi Arabia |
| 2000 | 2016-11-15 | 10 | United States |
| 2000 | 2016-03-21 | 56 | United States |
| 2000 | 2014-10-17 | 11 | |
| 2000 | 2014-06-16 | 1 | United States |
| 2000 | 2014-06-13 | 1 | US |
| 2000 | 2014-03-25 | 1 | |
| 2000 | 2014-02-12 | 2 | |
| 2000 | 2013-05-24 | 15 |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3020-00-330-5295
Related Products | NSN 3020-00-330-5295
3020-00-330-5322, 3020-00-330-5355, 3020-00-330-6361, 3020-00-330-6639, 3020-00-330-6642
Technical Data | NSN 3020-00-330-5295
| Characteristic | Specifications |
|---|---|

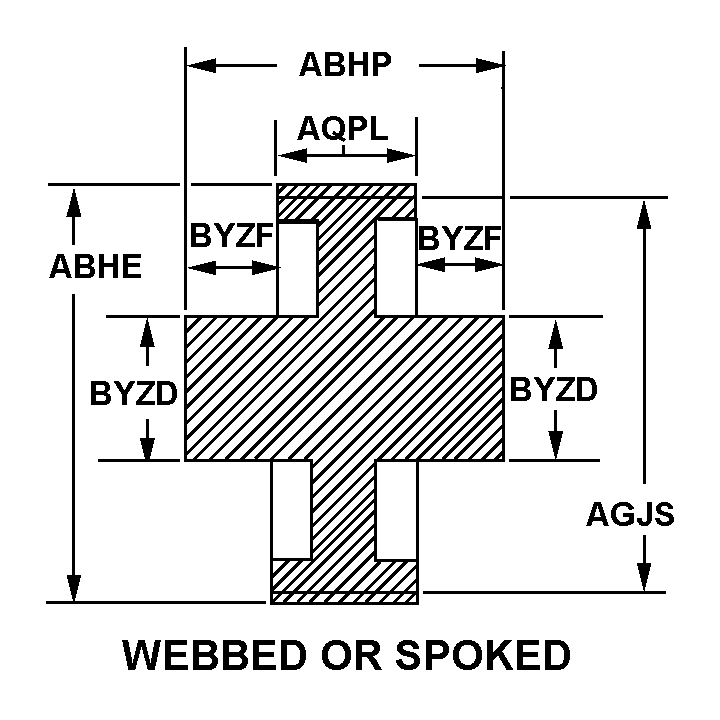

| STYLE DESIGNATOR | A7 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL LENGTH | 0.438 INCHES NOMINAL |
| FACE WIDTH | 0.281 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.375 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.078 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL OVERALL |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.125 INCHES NOMINAL |
| GROOVE WIDTH | 0.219 INCHES NOMINAL |
| GROOVE RADIUS | 0.109 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.166 INCHES NOMINAL |
| BORE LENGTH | 0.438 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| SPLIT HUB FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 3020-00-330-5295
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127320 | PULLEYS/SHEAVES,NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-330-5295
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
