Product Details | GEAR CLUSTER
3020-00-333-5927 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 411662, 3020-00-333-5927, 00-333-5927, 3020003335927, 003335927
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-333-5927 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-333-5927
Cross Reference | NSN 3020-00-333-5927
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 411662 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-333-5927
Technical Data | NSN 3020-00-333-5927
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CONSTRUCTION | SOLID |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 0.276 INCHES FIRST GEAR 0.176 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 1.050 INCHES |

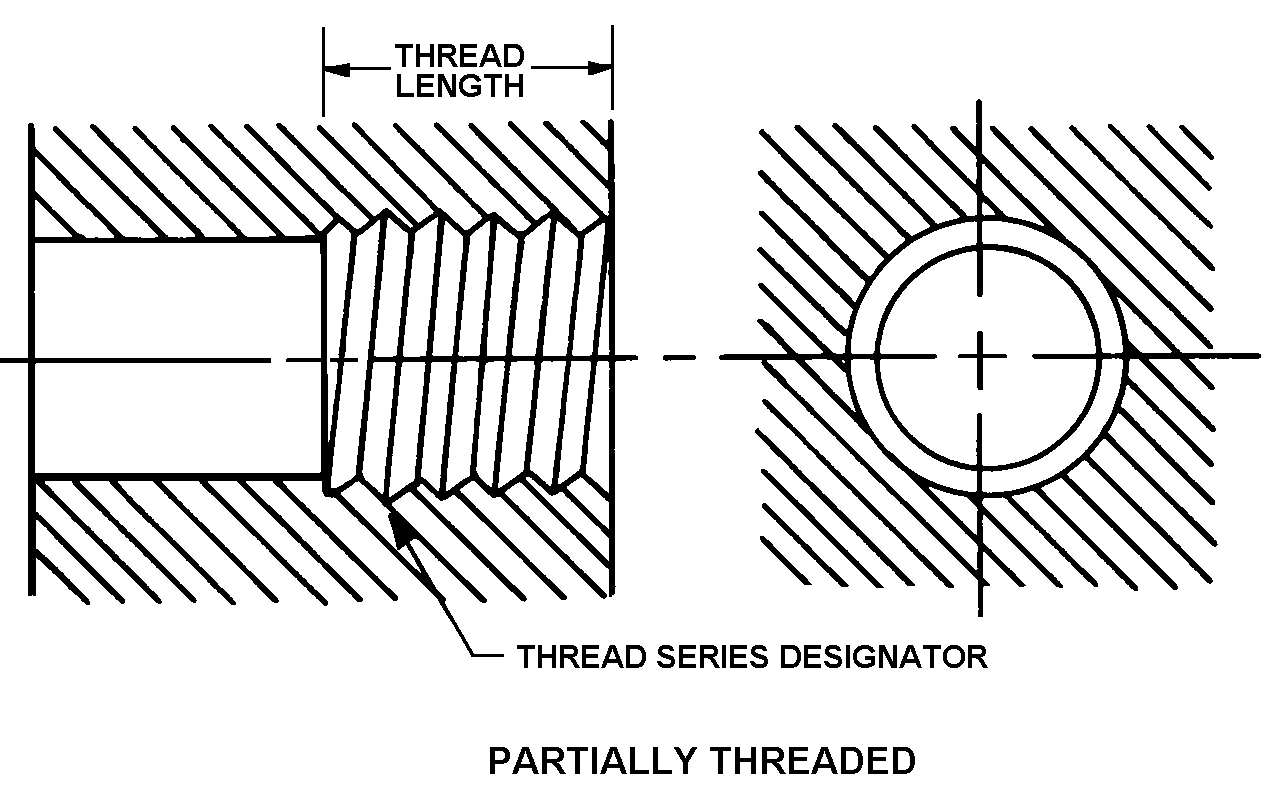

| BORE STYLE | 21 THREAD SERIES DESIGNATOR PARTIALLY THREADED FIRST END |
| THREAD SERIES DESIGNATOR | UNC FIRST END |
| NOMINAL THREAD SIZE | 0.036 INCHES FIRST END |
| THREAD CLASS | 2B FIRST END |
| THREAD DIRECTION | RIGHT-HAND FIRST END |
| NOMINAL THREAD LENGTH | 0.280 INCHES FIRST END |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END 4C 3 STEPS BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL LENGTH | 0.189 INCHES FIRST END 0.477 INCHES BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL DIAMETER | 0.187 INCHES FIRST END 0.250 INCHES BETWEEN FIRST AND SECOND GEAR |
