NSN 3020-00-408-1755 68001736, 6800-1736, 00-408-1755
Product Details | GEAR CLUSTER

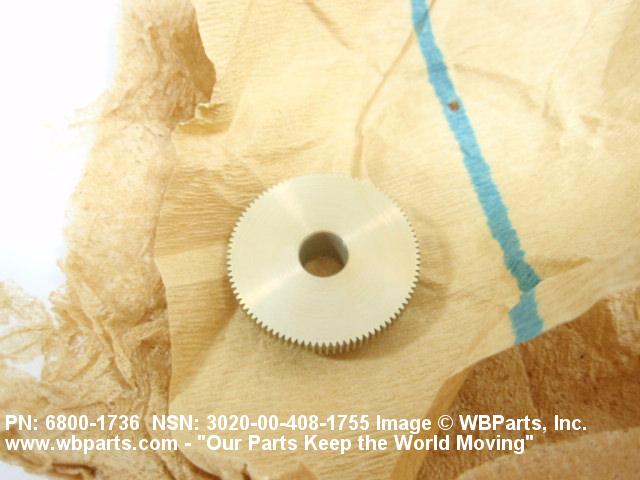

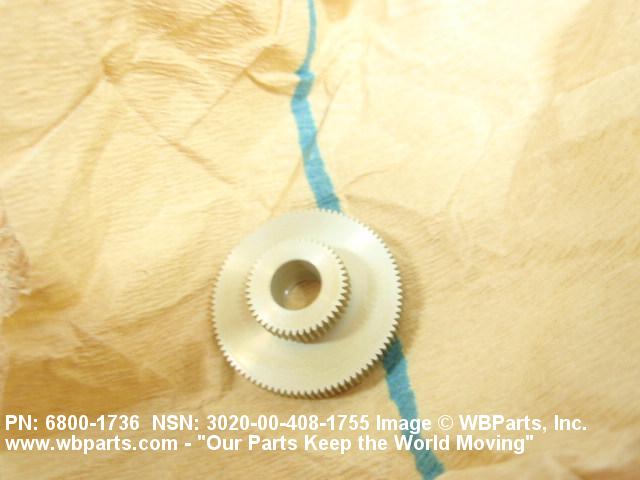

3020-00-408-1755 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 68001736, 6800-1736, 3020-00-408-1755, 00-408-1755, 3020004081755, 004081755
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 10 JUL 1970 | 00-408-1755 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-408-1755
Demand History | NSN 3020-00-408-1755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-408-1755 | 2010-12-341 | 1 | Korea |
| 68001736 | 2010-11-333 | 1 | Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-408-1755
Technical Data | NSN 3020-00-408-1755
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| CONSTRUCTION | SOLID |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 0.979 INCHES FIRST GEAR 0.500 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.295 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.250 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL LENGTH | 0.055 INCHES BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL DIAMETER | 0.375 INCHES BETWEEN FIRST AND SECOND GEAR |
| MANUFACTURERS CODE | 11871 |
| DESIGN CONTROL REFERENCE | 6800-1736 |
