Product Details | SPUR GEAR
3020-00-468-3173 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: DD692S650521PC19, DD692S6505-21PC19, 1018, 11T225LPC19, 22865909PC19, 228-65-909PC19, 313650512759PC19, 313-6505-12759PC19, 4056505590955PC19, 405-6505-590955PC19, 3020-00-468-3173, 00-468-3173, 3020004683173, 004683173
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-468-3173 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-468-3173
Cross Reference | NSN 3020-00-468-3173
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1018 | 12763 | DYNALEC CORPORATION |
| 1018 | 20049 | THE ELECTRIC TACHOMETER CORP. |
| 11T225LPC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 228-65-909PC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 313-6505-12759PC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 405-6505-590955PC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| DD692S6505-21PC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3020-00-468-3173
3020-00-468-3175, 3020-00-468-3203, 3020-00-468-3288, 3020-00-468-3391, 3020-00-468-3575
Technical Data | NSN 3020-00-468-3173
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-16782 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 72 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 14.5000 DEGREES |

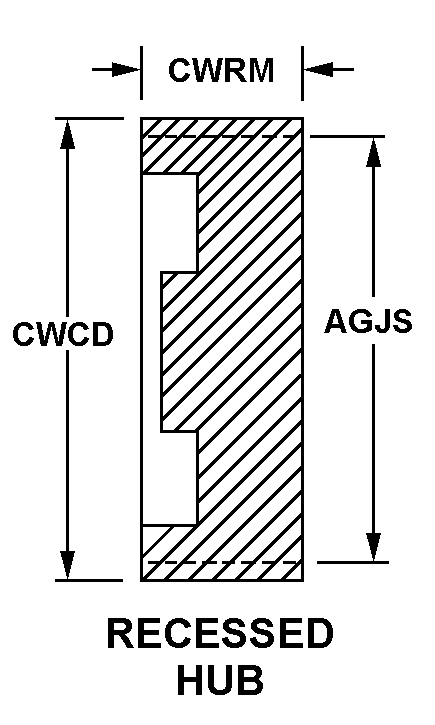

| STYLE DESIGNATOR | 13 RECESSED HUB |
| PITCH DIAMETER | 2.1250 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 2.375 INCHES |
| FACE NOMINAL WIDTH | 0.312 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND RECESSED HUB END | 0.062 INCHES FIRST END |
| BORE STYLE | 10A W/KEYWAY BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.437 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.093 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.296 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 0.750 INCHES FIRST END |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
Restrictions/Controls & Freight Information | NSN 3020-00-468-3173
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-468-3173
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
