NSN 3020-00-477-5706 5122237, 00-477-5706, 004775706
Product Details | CONE PULLEY
3020-00-477-5706 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 5122237, 3020-00-477-5706, 00-477-5706, 3020004775706, 004775706
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 16 MAY 1969 | 00-477-5706 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-00-477-5706
Cross Reference | NSN 3020-00-477-5706
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5122237 | 72582 | MTU AMERICA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-477-5706
Related Products | NSN 3020-00-477-5706
Technical Data | NSN 3020-00-477-5706
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| STEP QUANTITY | 1 |
| FACE WIDTH | 1.000 INCHES NOMINAL AND 2.020 INCHES NOMINAL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 4 |
| LARGE END OUTSIDE DIAMETER | 7.500 INCHES NOMINAL |
| SMALL END OUTSIDE DIAMETER | 6.540 INCHES NOMINAL |

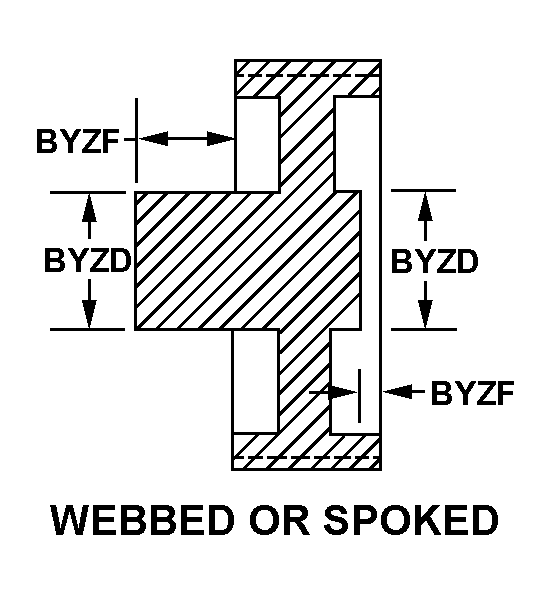

| STYLE DESIGNATOR | E11 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 4.720 INCHES NOMINAL |
| MATERIAL AND LOCATION | CAST IRON,GM 13M,OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 2.000 INCHES NOMINAL |
| BORE LENGTH | 2.800 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.376 INCHES MINIMUM AND 0.381 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 1.181 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | STEPPED |
| FIRST STEP FACE LARGEST DIAMETER AND LOCATION | 3.000 INCHES NOMINAL AA END |
| FIRST STEP LENGTH AND LOCATION | 1.420 INCHES NOMINAL AA END |
| SECOND STEP LENGTH AND LOCATION | 0.298 INCHES NOMINAL AA END |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.880 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.718 INCHES NOMINAL AA END AND 1.920 INCHES NOMINAL BB END |
| GROOVE/STEP LOCATION | AA END |
Restrictions/Controls & Freight Information | NSN 3020-00-477-5706
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-477-5706
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
