Product Details | GEAR CLUSTER
3020-00-484-4321 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 3014787, 3020-00-484-4321, 00-484-4321, 3020004844321, 004844321
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 MAY 1969 | 00-484-4321 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-484-4321
Demand History | NSN 3020-00-484-4321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3014787 | 2024-11-319 | 6 | DIBBS |
| 3014787 | 2024-09-260 | 15 | DIBBS |
| 3014787 | 2024-09-256 | 7 | DIBBS |
| 3014787 | 2024-05-133 | 15 | DIBBS |
| 3020-00-484-4321 | 2024-03-80 | 22 | DIBBS |
| 3014787 | 2023-11-307 | 3 | US |
| 3014787 | 2023-09-257 | 6 | DIBBS |
| 3014787 | 2023-06-163 | 3 | DIBBS |
| 3014787 | 2023-06-152 | 3 | DIBBS |
| 3014787 | 2022-09-255 | 8 | DIBBS |
| 3014787 | 2022-08-240 | 8 | DIBBS |
| 3014787 | 2020-04-97 | 13 | DIBBS |
| 3014787 | 2020-03-82 | 13 | DIBBS |
| 3014787 | 2020-02-44 | 8 | DIBBS |
| 3014787 | 2019-12-353 | 9 | DIBBS |
| 3014787 | 2019-09-248 | 14 | DIBBS |
| 3014787 | 2019-07-192 | 4 | DIBBS |
| 3014787 | 2019-06-164 | 5 | DIBBS |
| 3014787 | 2019-06-153 | 5 | DIBBS |
| 3020-00-484-4321 | 2018-11-333 | 2 | DIBBS |
| 3020-00-484-4321 | 2018-07-190 | 4 | DIBBS |
| 3020-00-484-4321 | 2018-06-179 | 4 | DIBBS |
| 3020-00-484-4321 | 2018-04-102 | 10 | DIBBS |
| 3020-00-484-4321 | 2018-03-88 | 6 | DIBBS |
| 3020-00-484-4321 | 2018-03-73 | 10 | DIBBS |
| 3020-00-484-4321 | 2017-08-239 | 1 | DIBBS |
| 3020-00-484-4321 | 2016-08-237 | 2 | DIBBS |
| 3020-00-484-4321 | 2016-07-203 | 1 | DIBBS |
| 3020-00-484-4321 | 2015-12-361 | 5 | DIBBS |
| 3020-00-484-4321 | 2015-10-298 | 1 | DIBBS |
| 3020-00-484-4321 | 2011-05-136 | 8 | DIBBS |
| 3020-00-484-4321 | 2010-12-349 | 7 | DIBBS |
| 3020-00-484-4321 | 2010-05-140 | 7 | DIBBS |
| 3020-00-484-4321 | 2008-09-259 | 4 | DIBBS |
| 3020-00-484-4321 | 2006-05-142 | 2 | DIBBS |
Cross Reference | NSN 3020-00-484-4321
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3014787 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-484-4321
Related Products | NSN 3020-00-484-4321
Technical Data | NSN 3020-00-484-4321
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CONSTRUCTION | WELDED |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 2.8500 INCHES FIRST GEAR 4.6000 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 2.800 INCHES |

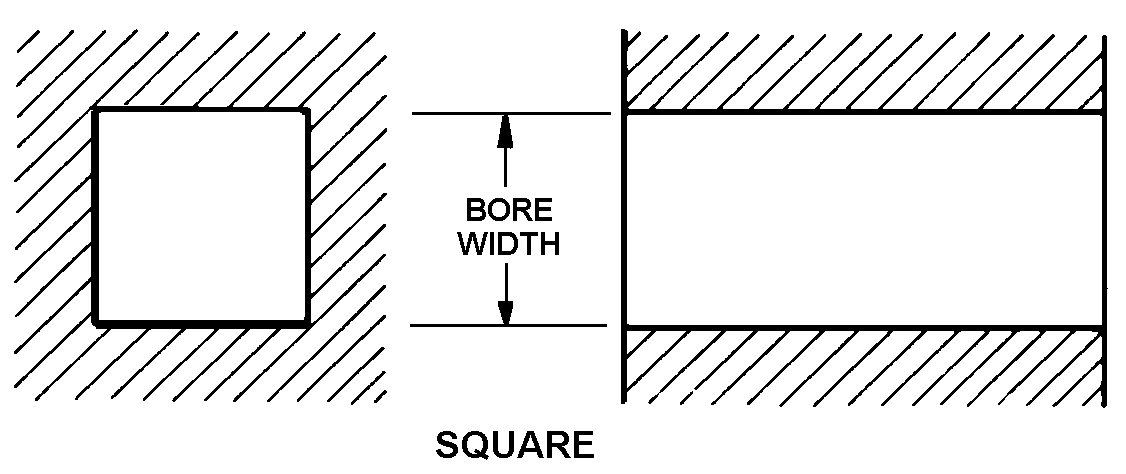

| BORE STYLE | 3 SQUARE BOTH ENDS |
| BORE NOMINAL WIDTH | 0.719 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 4A 1 STEP SECOND END 1 PLAIN BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL LENGTH | 2.605 INCHES SECOND END 0.125 INCHES BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL DIAMETER | 0.616 INCHES SECOND END 2.430 INCHES BETWEEN FIRST AND SECOND GEAR |
| SPECIAL FEATURES | STEPPED BORE ON 2ND END,1ST STEP 0.250 IN.SQUARE;2ND STEP 0.438 IN.DIA,1.125 IN.DEEP;3RD STEP 0.719 IN.DIA,1.000 IN.DEEP |
