NSN 3020-00-528-0511 005280511
Product Details | GROOVE PULLEY
3020-00-528-0511 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 005280511
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-528-0511 | 08109 ( PULLEY, GROOVE ) |

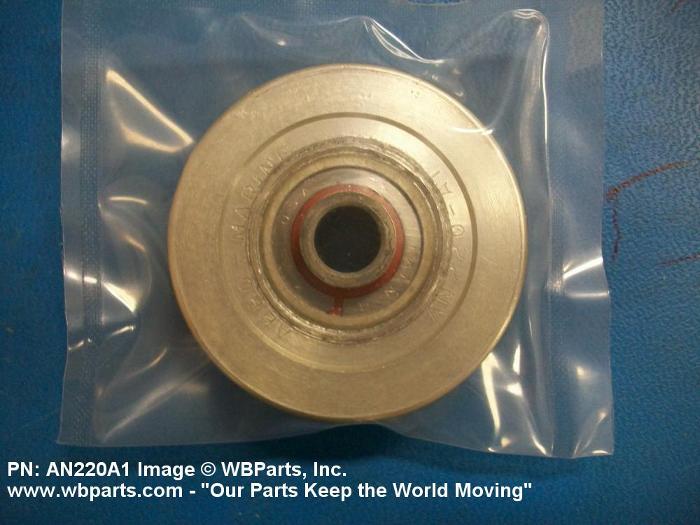

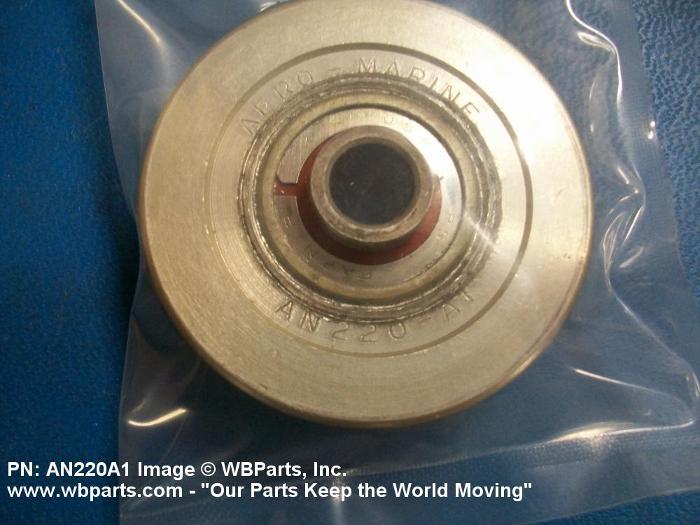

Drawings & Photos | NSN 1640-00-528-0511
Demand History | NSN 3020-00-528-0511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20220A1 | 2012-05-125 | 30 | United States |
| MS20220A1 | 2011-07-196 | 4 | United States |
| 1640-00-528-0511 | 2010-05-124 | 361 | DIBBS |
| MS20220A1 | 2010-03-78 | 20 | United States |
| 1640-00-528-0511 | 2009-06-155 | 305 | DIBBS |
| 1640-00-528-0511 | 2009-05-125 | 150 | DIBBS |
| 1640-00-528-0511 | 2009-04-114 | 239 | DIBBS |
| 1640-00-528-0511 | 2009-01-06 | 12 | US |
| 1640-00-528-0511 | 2007-07-206 | 163 | DIBBS |
| MS20220A1 | 2006-09-270 | 50 | US |
| 1640-00-528-0511 | 2006-05-136 | 23 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-528-0511
Technical Data | NSN 3020-00-528-0511
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A7 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 1.755 INCHES NOMINAL |
| OVERALL LENGTH | 0.625 INCHES NOMINAL |
| FACE WIDTH | 0.422 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.465 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.101 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-268, T4-CANCELED BODY STEEL HUB |
| SURFACE TREATMENT | ANODIZED |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.250 INCHES NOMINAL |
| GROOVE WIDTH | 0.275 INCHES NOMINAL |
| GROOVE RADIUS | 0.097 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.314 INCHES NOMINAL |
| BORE LENGTH | 0.625 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20220A1 |
Restrictions/Controls & Freight Information | NSN 3020-00-528-0511
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
