NSN 3020-00-528-1775 ES12381, 00-528-1775, 005281775
Product Details | SILENT CHAIN
3020-00-528-1775 A flexible mechanical device consisting of inverted tooth links, with or without guide links, and used for power transmission. The links are joined by pins and mate with the sprocket teeth with a sliding action. Excludes flexible mechanical devices specifically designed for use with COUPLING, SHAFT, FLEXIBLE.
Part Alternates: ES12381, 3020-00-528-1775, 00-528-1775, 3020005281775, 005281775
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-528-1775 | 04449 ( CHAIN, SILENT ) |

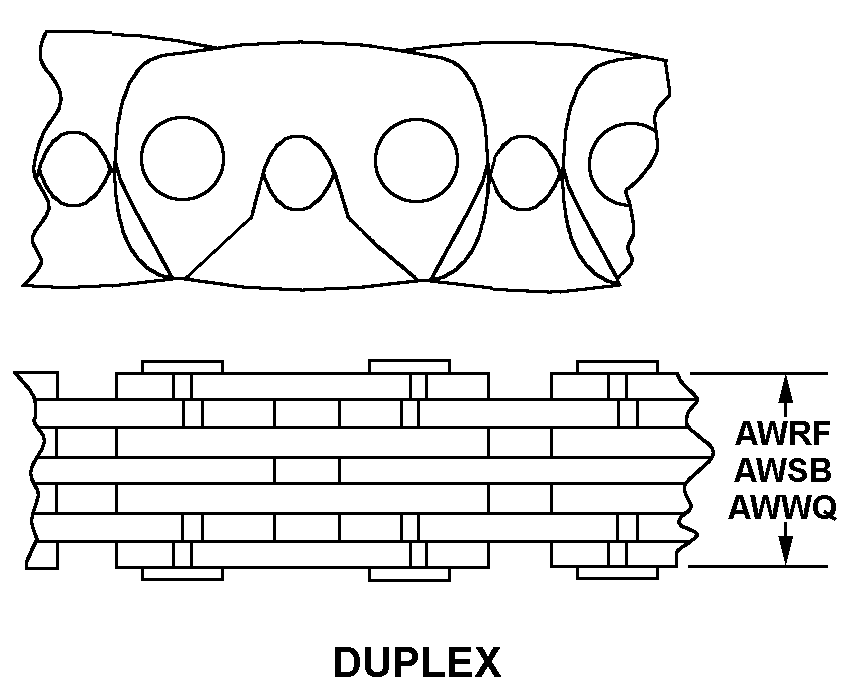

Drawings & Photos | NSN 3020-00-528-1775
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-528-1775
Technical Data | NSN 3020-00-528-1775
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PASSIVATE |
| LINK STYLE | D1 DUPLEX |
| LINK NOMINAL WIDTH | 0.2000 INCHES |
| LINK ROW QUANTITY | 4 |
| EFFECTIVE LENGTH | 0.7520 FEET NOMINAL |
| MANUFACTURERS CODE | 81733 |
| DESIGN CONTROL REFERENCE | ES12381 |
Restrictions/Controls & Freight Information | NSN 3020-00-528-1775
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093940 | CHAINS BELTING/SPROCKET |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
