Product Details | GROOVE PULLEY
3020-00-541-1630 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: MS20221A3, NAS3783, NAS378-3, NAS378A3, AN221A3, MIL-DTL-7034/3, MILDTL70343, 20221A3, 7D305210, 7D3-05210, 7D3-05210 ITEM 7, 7D305210ITEM7, 3020-00-541-1630, 00-541-1630, 3020005411630, 005411630
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-541-1630 | 08109 ( PULLEY, GROOVE ) |

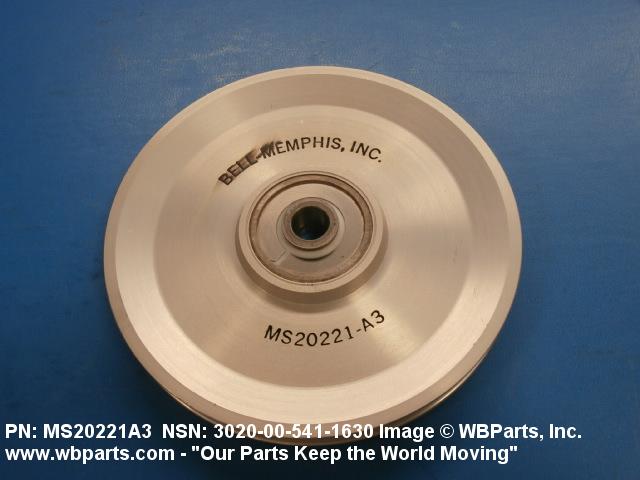

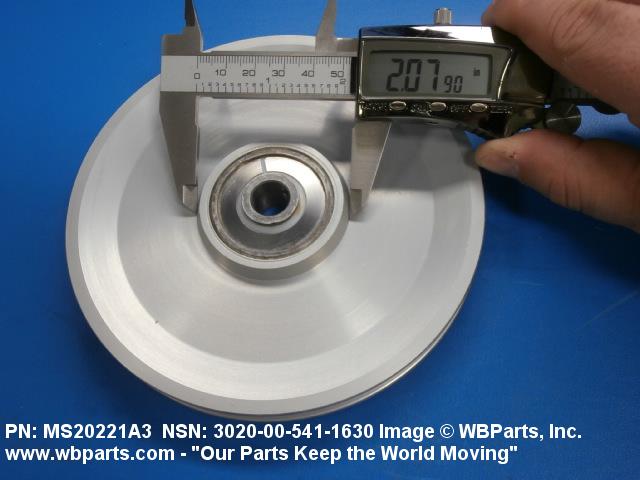

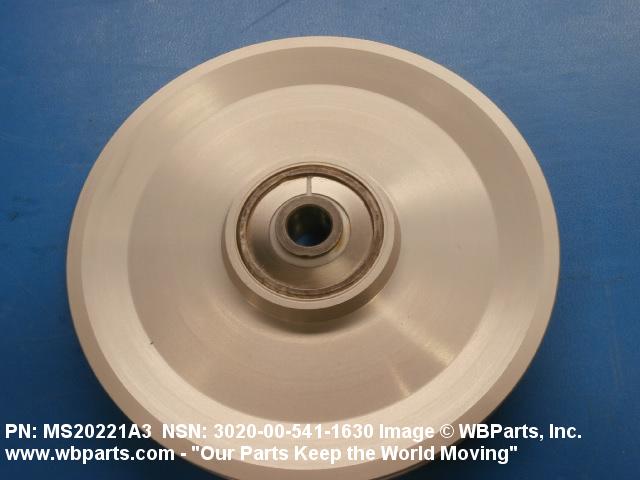

Drawings & Photos | NSN 3020-00-541-1630
Demand History | NSN 3020-00-541-1630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-541-1630 | 2025-10-282 | 56 | DIBBS |
| 3020-00-541-1630 | 2023-11-316 | 39 | DIBBS |
| MS20221A3 | 2023-06-177 | 5 | United States |
| 3020-00-541-1630 | 2023-06-172 | 22 | DIBBS |
| MS20221A3 | 2023-06-159 | 5 | United States |
| 3020-00-541-1630 | 2022-06-153 | 24 | DIBBS |
| 3020-00-541-1630 | 2020-01-20 | 4 | US |
| 3020-00-541-1630 | 2018-03-63 | 40 | DIBBS |
| 3020-00-541-1630 | 2018-01-27 | 6 | US |
| 3020-00-541-1630 | 2017-11-317 | 11 | United States |
| 3020-00-541-1630 | 2015-05-125 | 45 | DIBBS |
| 3020-00-541-1630 | 2015-03-84 | 9 | United States |
| MS20221A3 | 2009-05-149 | 18 | United States |
| MS20221A3 | 2009-05-146 | 18 | United States |
Cross Reference | NSN 3020-00-541-1630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20221A3 | 29965 | ARVAN, INC. DBA AEROSPACE DIVISION |
| 20221A3 | 83451 | ATCO PULLEY CORP |
| 7D3-05210 | 34712 | OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE |
| 7D3-05210 ITEM 7 | 34712 | OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE |
| AN221A3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-DTL-7034/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20221A3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS378-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS378A3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-541-1630
Related Products | NSN 3020-00-541-1630
Technical Data | NSN 3020-00-541-1630
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A3 PLAIN |

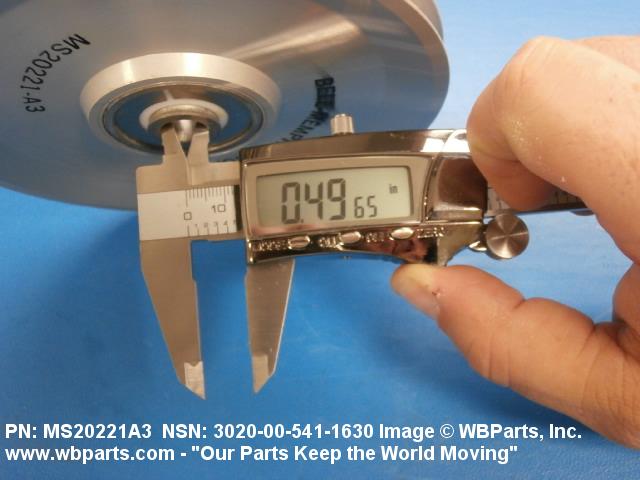

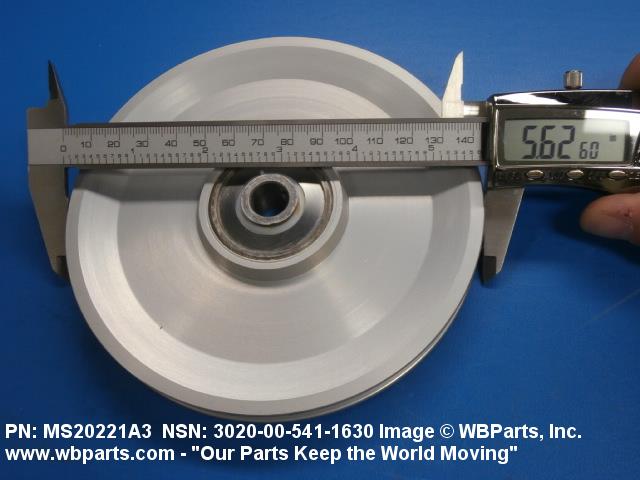

| OUTSIDE DIAMETER | 5.630 INCHES NOMINAL |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |

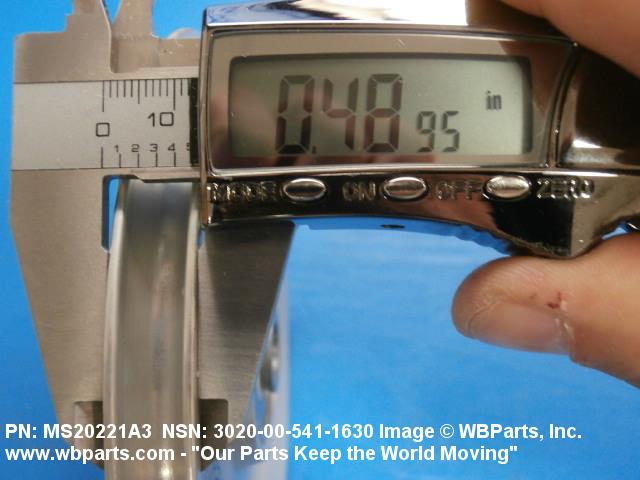

| FACE WIDTH | 0.507 INCHES NOMINAL |

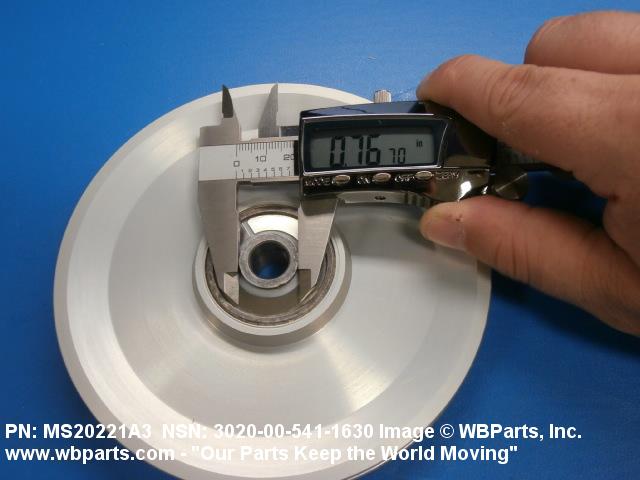

| HUB END OUTSIDE DIAMETER AND LOCATION | 0.800 INCHES NOMINAL BOTH ENDS |
