Product Details | SPUR GEAR
3020-00-550-7143 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 5507143, 3020-00-550-7143, 00-550-7143, 3020005507143, 005507143
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-550-7143 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-550-7143
Cross Reference | NSN 3020-00-550-7143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5507143 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-550-7143
Related Products | NSN 3020-00-550-7143
Technical Data | NSN 3020-00-550-7143
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-11415 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 56 |
| TOOTH FORM | STUB |
| PRESSURE ANGLE | 20.0000 DEGREES |
| BACKLASH DESIGNATION | GRADE E |
| STYLE DESIGNATOR | 9 ONE PROTRUDING HUB, ONE RECESSED HUB |
| PITCH DIAMETER | 14.0000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 2.995 INCHES |
| NOMINAL OUTSIDE DIAMETER | 14.397 INCHES |
| FACE NOMINAL WIDTH | 2.090 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.505 INCHES FIRST END |
| NOMINAL DISTANCE BETWEEN BODY FACE AND RECESSED HUB END | 0.500 INCHES SECOND END |

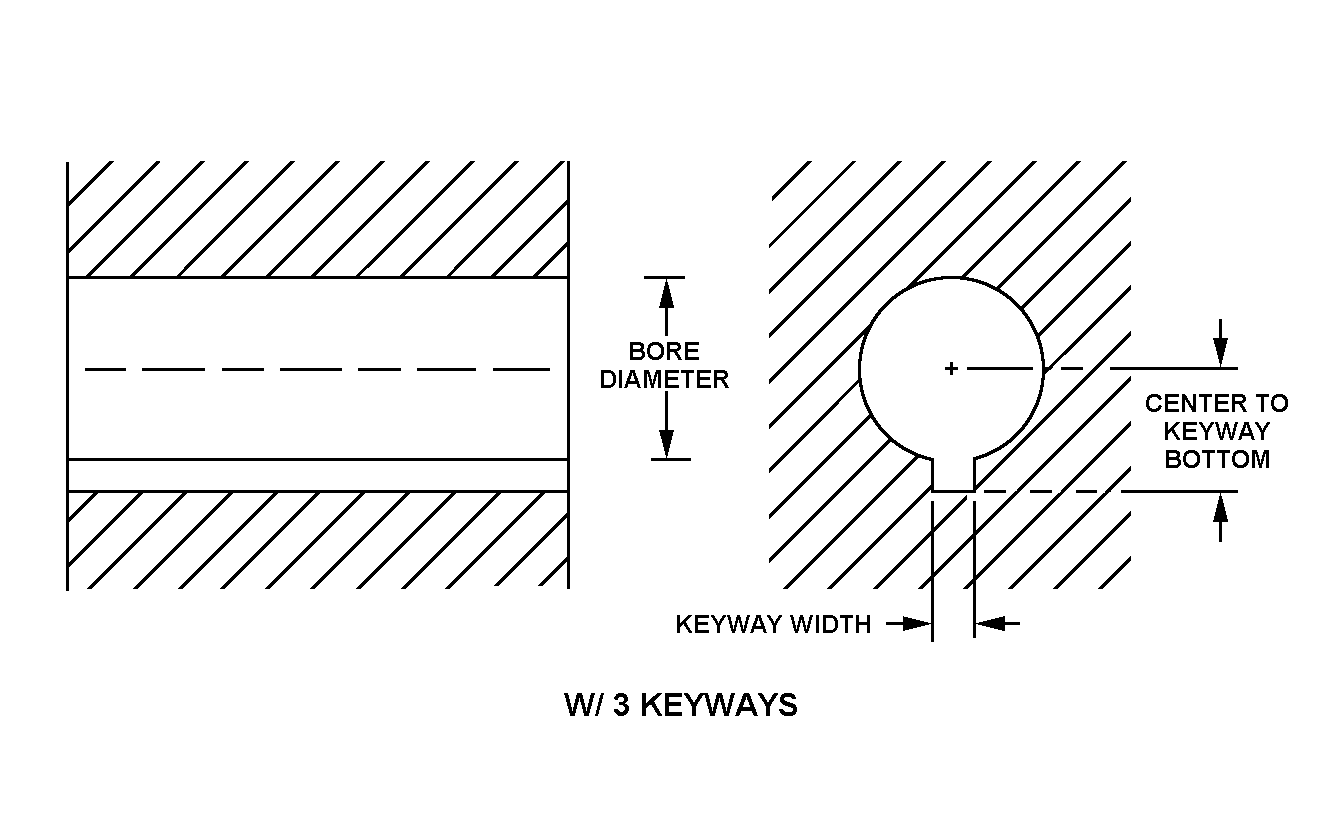

| BORE STYLE | 10C W/3 KEYWAYS BOTH ENDS |
| BORE NOMINAL DIAMETER | 3.812 INCHES BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.748 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 2.226 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 5.375 INCHES FIRST END 5.375 INCHES SECOND END |
| BODY STYLE | 3A WEBBED, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 8 THREADED AXIALLY THROUGH BODY, FIRST END 2 THREADED AXIALLY THROUGH BODY, SECOND END |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNF AXIALLY THROUGH BODY, FIRST END UNF AXIALLY THROUGH BODY, SECOND END |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.190 INCHES AXIALLY THROUGH BODY, FIRST END 0.190 INCHES AXIALLY THROUGH BODY, SECOND END |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 32 AXIALLY THROUGH BODY, FIRST END |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 12.875 INCHES AXIALLY THROUGH BODY, FIRST END 7.000 INCHES AXIALLY THROUGH BODY, SECOND END |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 5507143 |
