NSN 3020-00-604-5130 S156520457, S1565-20457, 00-604-5130

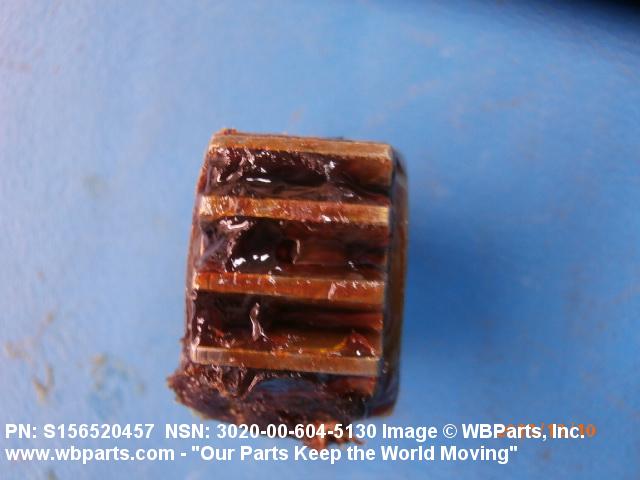

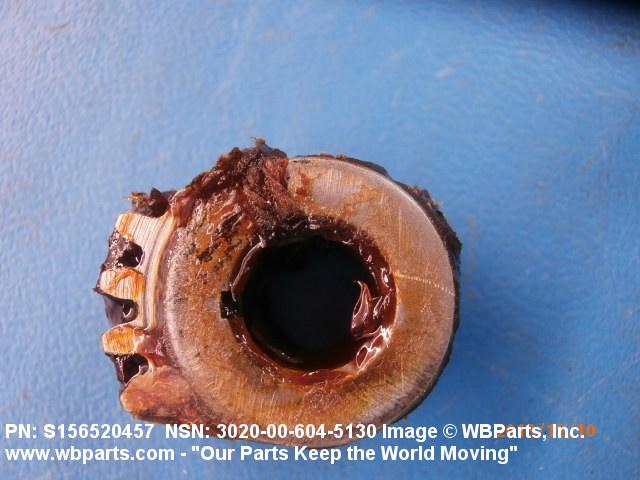

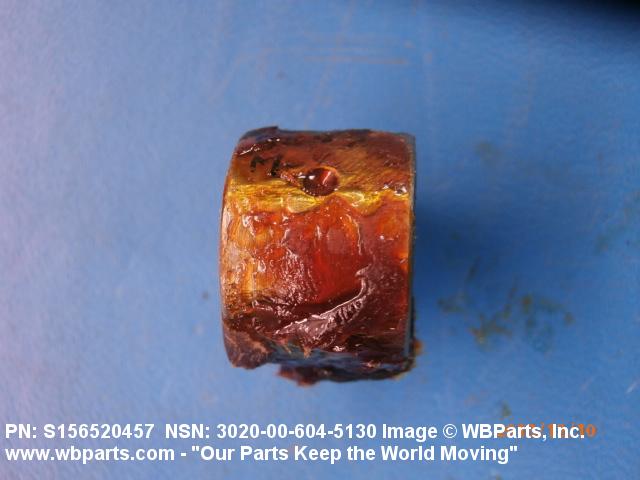

3020-00-604-5130 A gear sector with complements of spur gear teeth.

Part Alternates: S156520457, S1565-20457, 3020-00-604-5130, 00-604-5130, 3020006045130, 006045130

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	01 JAN 1963	00-604-5130	28377 ( GEAR SECTOR, SPUR )

Part Number	Request Date	QTY	Origin	SBA
S156520457	2013-10-283	5	Canada

Part Number	Cage Code	Manufacturer
S1565-20457	78286	SIKORSKY AIRCRAFT CORPORATION

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3020-00-604-5130

Compare

3020-00-604-6368, 3020-00-604-6407, 3020-00-604-6429, 3020-00-604-7482, 3020-00-604-7699

Characteristic	Specifications
MATERIAL	STEEL COMP 410 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763,CLASS 3,TYPE C FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
TEETH QUANTITY	21
TOOTH FORM	STUB
PRESSURE ANGLE	20.0000 DEGREES

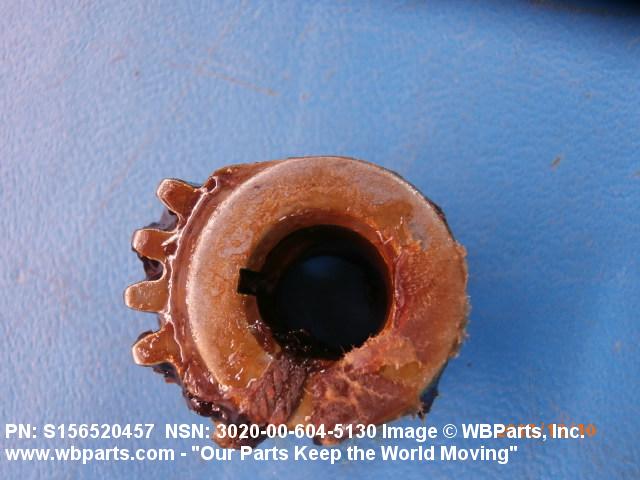

BORE STYLE	10A W/KEYWAY BOTH ENDS

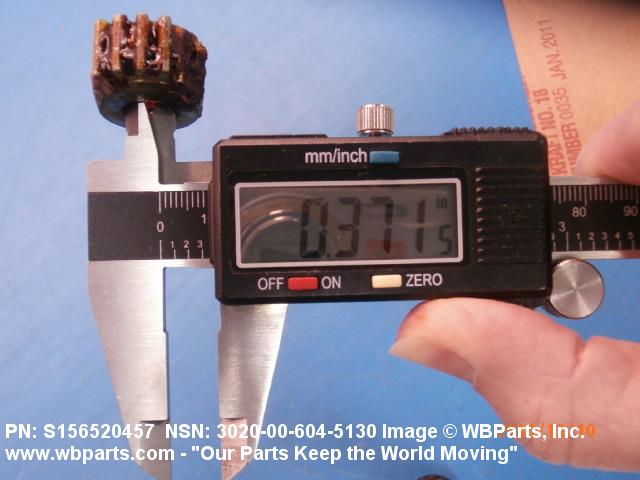

BORE NOMINAL DIAMETER	0.375 INCHES BOTH ENDS

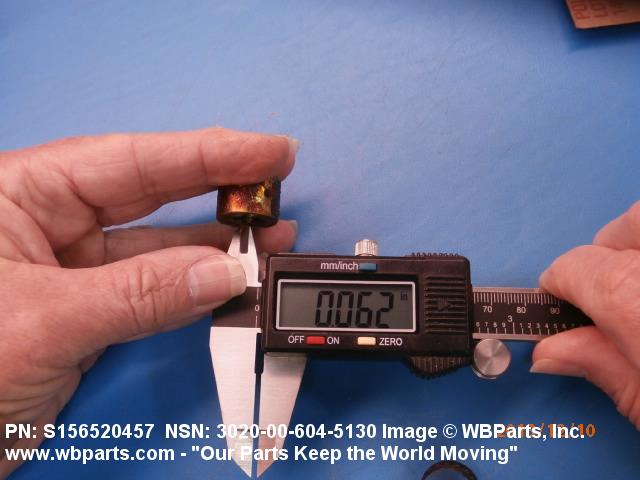

KEYWAY NOMINAL WIDTH	0.062 INCHES BOTH ENDS

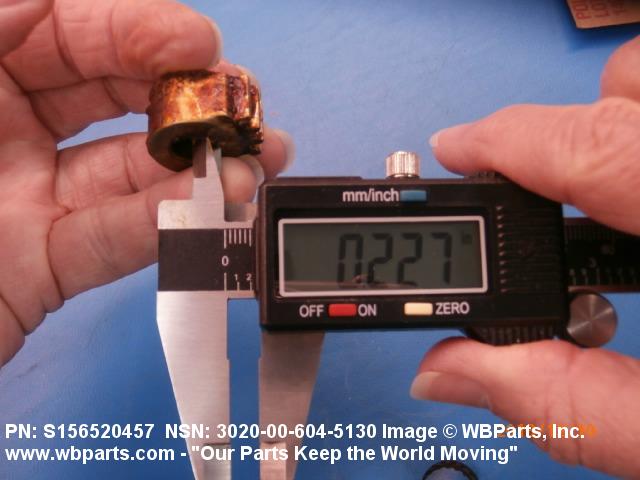

NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM	0.227 INCHES BOTH ENDS
SPECIAL FEATURES	HUB ON BOTH ENDS
MANUFACTURERS CODE	78286
DESIGN CONTROL REFERENCE	S1565-20457

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121870	GEAR/SPEED INCREASING/REDUCING MACH
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
