NSN 3020-00-657-9494 3638582, 363858-2, 00-657-9494
Product Details | CONE PULLEY
3020-00-657-9494 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 3638582, 363858-2, 3020-00-657-9494, 00-657-9494, 3020006579494, 006579494
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-657-9494 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-00-657-9494
Demand History | NSN 3020-00-657-9494
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-657-9494 | 2018-05-126 | 47 | DIBBS |
| 3020-00-657-9494 | 2018-03-65 | 47 | DIBBS |
| 3020-00-657-9494 | 2018-02-57 | 6 | DIBBS |
| 3020-00-657-9494 | 2014-11-321 | 56 | DIBBS |
| 3020-00-657-9494 | 2014-03-86 | 27 | DIBBS |
| 3020-00-657-9494 | 2013-10-275 | 104 | DIBBS |
| 3020-00-657-9494 | 2013-06-165 | 87 | DIBBS |
| 3020-00-657-9494 | 2013-02-38 | 32 | DIBBS |
| 3020-00-657-9494 | 2011-01-26 | 53 | DIBBS |
| 363858-2 | 2010-11-333 | 17 | |
| 3020-00-657-9494 | 2010-09-245 | 90 | DIBBS |
| 3020-00-657-9494 | 2008-02-57 | 114 | DIBBS |
| 3020-00-657-9494 | 2007-07-198 | 27 | DIBBS |
| 3020-00-657-9494 | 2007-07-193 | 27 | DIBBS |
Cross Reference | NSN 3020-00-657-9494
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 363858-2 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-657-9494
Related Products | NSN 3020-00-657-9494
Technical Data | NSN 3020-00-657-9494
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 0.360 INCHES MINIMUM AND 0.550 INCHES MAXIMUM |
| STEP OUTSIDE DIAMETER | 3.406 INCHES MINIMUM AND 4.406 INCHES MAXIMUM |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.159 INCHES NOMINAL |
| GROOVE WIDTH | 0.159 INCHES NOMINAL |
| GROOVE RADIUS | 0.075 INCHES NOMINAL |

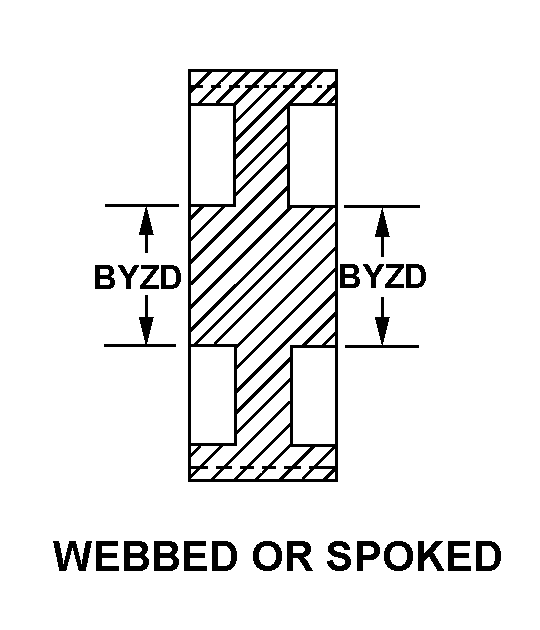

| STYLE DESIGNATOR | E8 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 0.900 INCHES MINIMUM AND 0.910 INCHES MAXIMUM |
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| BORE BEARING | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 0.625 INCHES NOMINAL |
| BORE LENGTH | 1.024 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 363858-2 |
