Product Details | INTERNAL GEAR
3020-00-689-3226 A gear with teeth formed on the inner surface of a cylinder or cone.
Part Alternates: 2587643, 3020-00-689-3226, 00-689-3226, 3020006893226, 006893226
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 FEB 1971 | 00-689-3226 | 05465 ( GEAR, INTERNAL ) |

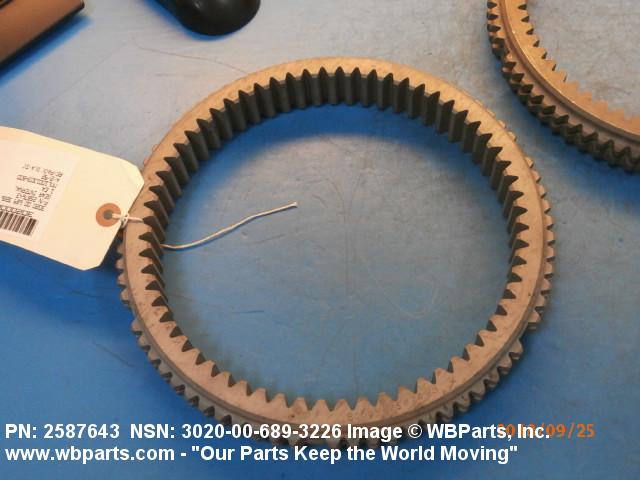

Drawings & Photos | NSN 3020-00-689-3226
Demand History | NSN 3020-00-689-3226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-689-3226 | 2021-11-22 | 11 | DIBBS |
| 3020-00-689-3226 | 2021-11-14 | 11 | DIBBS |
| 3020-00-689-3226 | 2020-10-19 | 11 | DIBBS |
| 3020-00-689-3226 | 2020-10-08 | 11 | DIBBS |
| 3020-00-689-3226 | 2020-03-23 | 46 | DIBBS |
| 3020-00-689-3226 | 2020-03-12 | 46 | DIBBS |
| 3020-00-689-3226 | 2018-08-15 | 2 | Thailand |
| 3020-00-689-3226 | 2014-10-20 | 10 | DIBBS |
| 3020-00-689-3226 | 2014-10-09 | 10 | DIBBS |
| 3020-00-689-3226 | 2014-04-21 | 8 | DIBBS |
| 3020-00-689-3226 | 2014-04-08 | 8 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3020-00-689-3226
Related Products | NSN 3020-00-689-3226
3020-00-689-3236, 3020-00-689-3237, 3020-00-689-3238, 3020-00-689-3241, 3020-00-689-3242
Technical Data | NSN 3020-00-689-3226
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-13048-CANCELED MIL SPEC SINGLE MATERIAL RESPONSE OR 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM TEETH |
| TEETH QUANTITY | 63 |
| TEETH TYPE | SPUR |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 43 PLAIN RING |
| PITCH DIAMETER | 7.8750 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.250 INCHES |
| NOMINAL OUTSIDE DIAMETER | 9.6225 INCHES |
| FACE NOMINAL WIDTH | 1.250 INCHES |
| BODY STYLE | 1 PLAIN, SOLID |
| SPECIAL FEATURES | EXTERNAL INVOLUTE SLINE,76 TEETH,30 DEG PRESSURE ANGLE,9.5000 PITCH DIA,9.2367 IN.MIN,9.2750 IN.MAX MINOR DIA,9.6200IN.MIN,9.6250 IN.MAX MAJOR DIA |
Restrictions/Controls & Freight Information | NSN 3020-00-689-3226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-689-3226
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
