NSN 3020-00-695-7285 36637, 36-637, 8333153
Product Details | GROOVE PULLEY
3020-00-695-7285 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 36637, 36-637, 8333153, 3020-00-695-7285, 00-695-7285, 3020006957285, 006957285
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-695-7285 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-695-7285
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-695-7285
Technical Data | NSN 3020-00-695-7285
| Characteristic | Specifications |
|---|---|

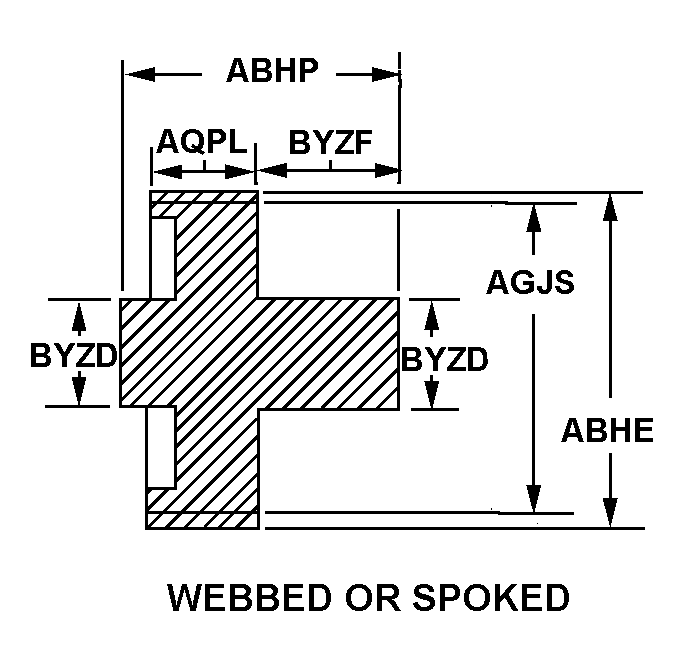

| STYLE DESIGNATOR | A21 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 7.370 INCHES MINIMUM AND 7.380 INCHES MAXIMUM |
| OVERALL LENGTH | 3.656 INCHES NOMINAL |
| PITCH DIAMETER | 6.750 INCHES NOMINAL |
| FACE WIDTH | 2.500 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.500 INCHES NOMINAL AA END AND 3.122 INCHES MINIMUM BB END AND 3.124 INCHES MAXIMUM BB END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.031 INCHES NOMINAL AA END AND 0.125 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | IRON OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.625 INCHES NOMINAL |
| GROOVE WIDTH | 0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| V GROOVE ANGLE IN DEG | 36.0 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.6885 INCHES MINIMUM AND 1.6895 INCHES MAXIMUM |
| BORE LENGTH | 3.656 INCHES NOMINAL |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | BB END |
| COUNTERBORE DIAMETER | 2.500 INCHES NOMINAL |
| COUNTERBORE DEPTH | 1.656 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.964 INCHES MINIMUM AND 0.969 INCHES MAXIMUM |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | THREADED HOLE |
| SECURING LOCATION | BB END |
| SECURING HOLE QUANTITY | 6 |
| THREAD SIZE | 5/16 - 18 |
| HOLE LOCATION | LOCATED ON 3-3/4 IN. BOLT CIRCLE |
| FURNISHED ITEMS AND QUANTITY | N/A |
| SPECIAL FEATURES | N/A |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8333153 |
Restrictions/Controls & Freight Information | NSN 3020-00-695-7285
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
