NSN 3020-00-738-3166 500053, 00-738-3166, 007383166
Product Details | SPUR GEAR
3020-00-738-3166 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 500053, 3020-00-738-3166, 00-738-3166, 3020007383166, 007383166
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-738-3166 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-738-3166
Cross Reference | NSN 3020-00-738-3166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500053 | 08638 | ALLIANT TECHSYSTEMS INC ORDNANCE SYSTEMS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-738-3166
Technical Data | NSN 3020-00-738-3166
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 260 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613,ALLOY 260,H FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 31 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 14.5000 DEGREES |

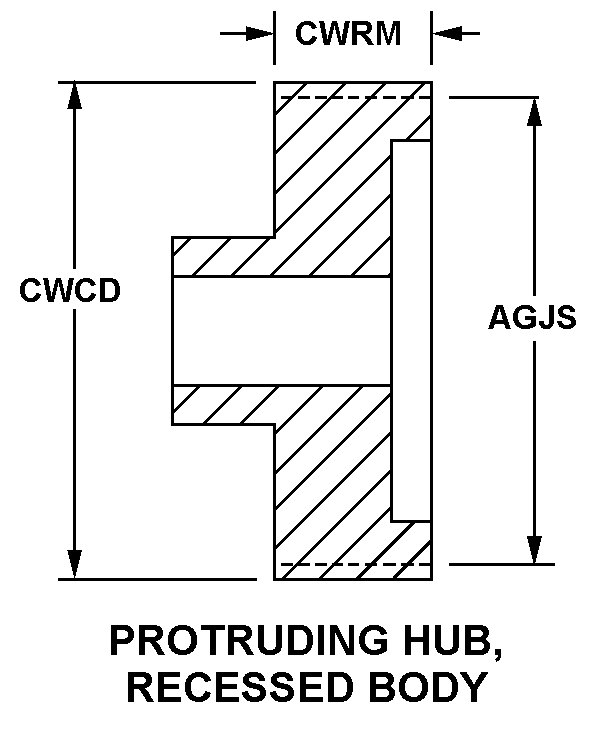

| STYLE DESIGNATOR | 8 PROTRUDING HUB, RECESSED BODY |
| PITCH DIAMETER | 0.6420 INCHES MINIMUM AND 0.6460 INCHES MAXIMUM |
| NOMINAL OVERALL LENGTH | 0.296 INCHES |
| NOMINAL OUTSIDE DIAMETER | 0.694 INCHES |
| FACE NOMINAL WIDTH | 0.203 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.093 INCHES FIRST END |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.256 INCHES BOTH ENDS |
| SPLINE QUANTITY | 11 BOTH ENDS |
| SPLINE PITCH DIAMETER | 0.2550 INCHES NOMINAL BOTH ENDS |
| COUNTERBORE NOMINAL DEPTH | 0.031 INCHES SECOND END |
| COUNTERBORE NOMINAL DIAMETER | 0.500 INCHES SECOND END |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 0.375 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| MANUFACTURERS CODE | 08638 |
| DESIGN CONTROL REFERENCE | 500053 |
Restrictions/Controls & Freight Information | NSN 3020-00-738-3166
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121870 | GEAR/SPEED INCREASING/REDUCING MACH |
| Less than car load rating | Q | 70 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
