NSN 3020-00-741-2745 02286136, 2286136, 30R0810

3020-00-741-2745 A gear with teeth on its outer surface in the form of helical threads.

Part Alternates: 02286136, 2286136, 30R0810, 7412745, 3020-00-741-2745, 00-741-2745, 3020007412745, 007412745

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	01 JAN 1963	00-741-2745	05467 ( GEAR, WORM )

Part Number	Request Date	QTY	Origin	SBA
3020-00-741-2745	2007-08-219	21	DIBBS

Part Number	Cage Code	Manufacturer
02286136	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
02286136	7X677	GENERAL MOTORS LLC DBA GENERAL MOTORS
2286136	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
30R0810	61465	GARWOOD/FELLER INC GARWOOD WINCH DIV
7412745	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3020-00-741-2745

Compare

3020-00-741-2875, 3020-00-741-2877, 3020-00-741-3287, 3020-00-741-4254, 3020-00-741-4255

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-624 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
FACE TYPE	CONCAVE
THREAD FORM QUANTITY	1
THREAD FORM DIRECTION	RIGHT-HAND
PRESSURE ANGLE	27.5000 DEGREES
HELIX ANGLE	4.9500 DEGREES
STYLE DESIGNATOR	4 PROTRUDING HUBS
PITCH DIAMETER	3.2160 INCHES NOMINAL
NOMINAL OUTSIDE DIAMETER	3.782 INCHES
FACE NOMINAL WIDTH	6.073 INCHES
NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END	3.240 INCHES FIRST END 3.188 INCHES SECOND END
BORE STYLE	10A W/KEYWAY BOTH ENDS

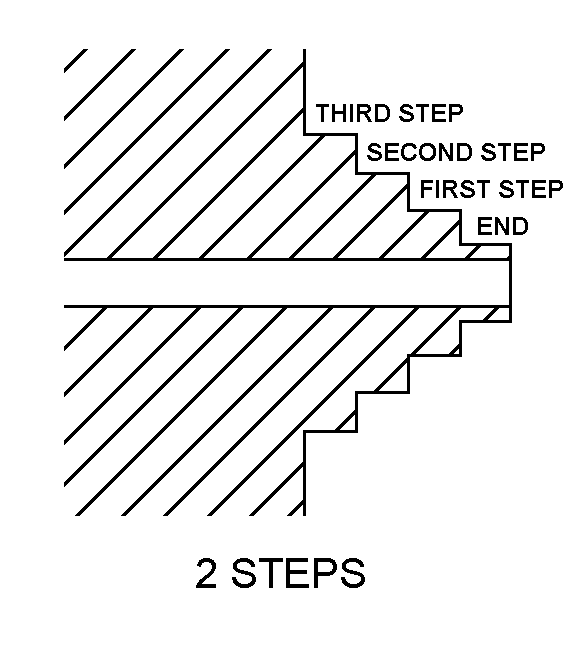

HUB STYLE DESIGNATOR	4B 2 STEPS BOTH ENDS
END NOMINAL LENGTH	0.875 INCHES FIRST END 1.250 INCHES SECOND END
END NOMINAL DIAMETER	1.000 INCHES FIRST END 1.250 INCHES SECOND END
FIRST STEP NOMINAL LENGTH	1.365 INCHES FIRST END 0.938 INCHES SECOND END
FIRST STEP NOMINAL DIAMETER	1.767 INCHES BOTH ENDS
SECOND STEP NOMINAL LENGTH	1.000 INCHES BOTH ENDS
SECOND STEP NOMINAL DIAMETER	1.772 INCHES BOTH ENDS

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
