NSN 3020-00-780-5222 K5116301, K-5116301, PC5116301
Product Details | SPUR GEAR
3020-00-780-5222 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: K5116301, K-5116301, PC5116301, 5116301, 126A, 3020-00-780-5222, 00-780-5222, 3020007805222, 007805222
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-780-5222 | 05466 ( GEAR, SPUR ) |

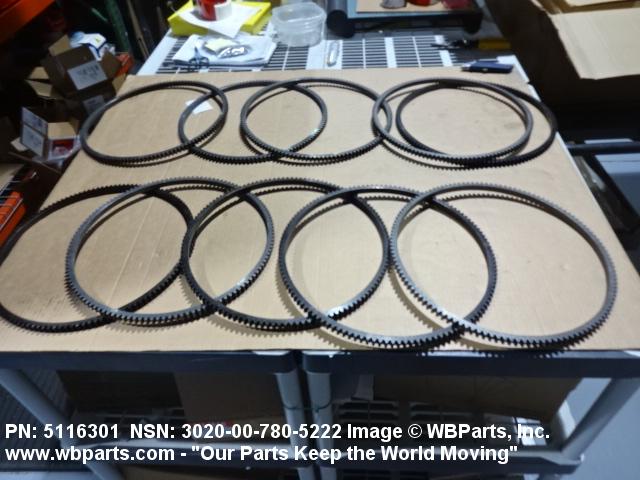

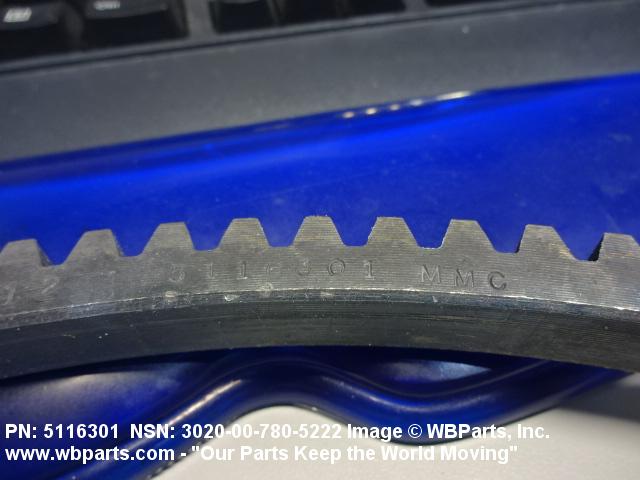

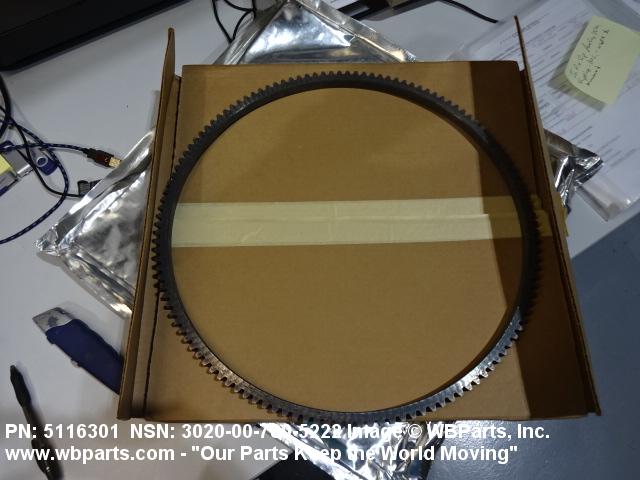

Drawings & Photos | NSN 3020-00-780-5222
Demand History | NSN 3020-00-780-5222
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-780-5222 | 2018-10-295 | 51 | DIBBS |
| 3020-00-780-5222 | 2018-09-255 | 10 | United States |
| 3020-00-780-5222 | 2018-08-214 | 1 | US |
| 3020-00-780-5222 | 2018-06-177 | 57 | DIBBS |
| 3020-00-780-5222 | 2018-06-173 | 101 | DIBBS |
| 3020-00-780-5222 | 2018-06-162 | 101 | DIBBS |
| 3020-00-780-5222 | 2018-05-151 | 101 | DIBBS |
| 3020-00-780-5222 | 2018-02-46 | 57 | DIBBS |
| 3020-00-780-5222 | 2017-07-198 | 254 | DIBBS |
| 3020-00-780-5222 | 2017-06-180 | 262 | DIBBS |
| 3020-00-780-5222 | 2017-06-155 | 226 | DIBBS |
| 3020-00-780-5222 | 2016-05-147 | 18 | DIBBS |
| 3020-00-780-5222 | 2016-05-130 | 18 | DIBBS |
| 3020-00-780-5222 | 2016-04-119 | 18 | DIBBS |
| 3020-00-780-5222 | 2011-11-311 | 61 | DIBBS |
| 3020-00-780-5222 | 2011-07-210 | 56 | DIBBS |
| 3020-00-780-5222 | 2010-09-246 | 147 | DIBBS |
| 3020-00-780-5222 | 2008-05-140 | 71 | DIBBS |
Cross Reference | NSN 3020-00-780-5222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 126A | 79398 | WOHLERT CORP |
| 3020007805222 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5116301 | 24617 | GENERAL MOTORS CORP |
| 5116301 | 40441 | MIDWEST MFG CO DIV OF SMITH JONES INC |
| 5116301 | 72582 | MTU AMERICA INC. |
| K-5116301 | 18954 | KORODY-COLYER CORP A CR INDUSTRIES CO |
| K-5116301 | 7U177 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV FP DIESEL |
| PC5116301 | C7432 | POWER COMPONENTS (DEUTSCHLAND) GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-780-5222
Related Products | NSN 3020-00-780-5222
Technical Data | NSN 3020-00-780-5222

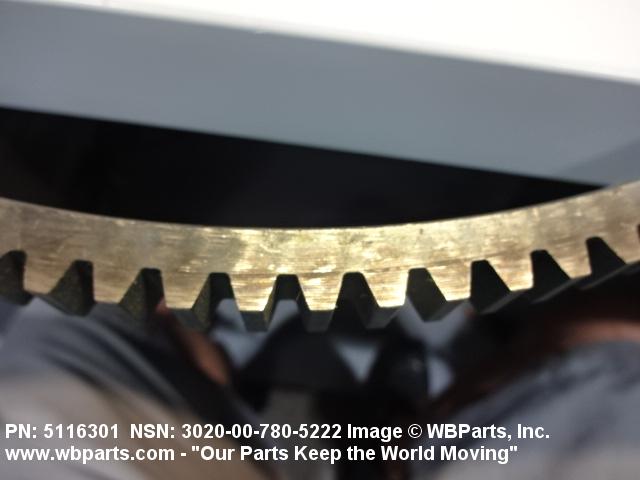

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 55.0 ROCKWELL C NOMINAL TEETH |
| TEETH QUANTITY | 126 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 1 HUBLESS |

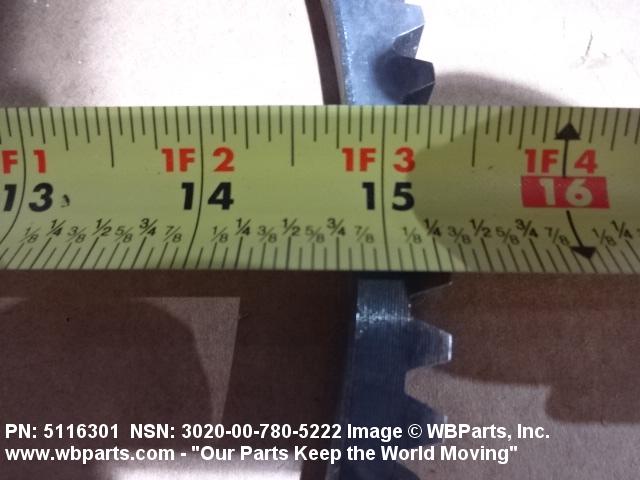

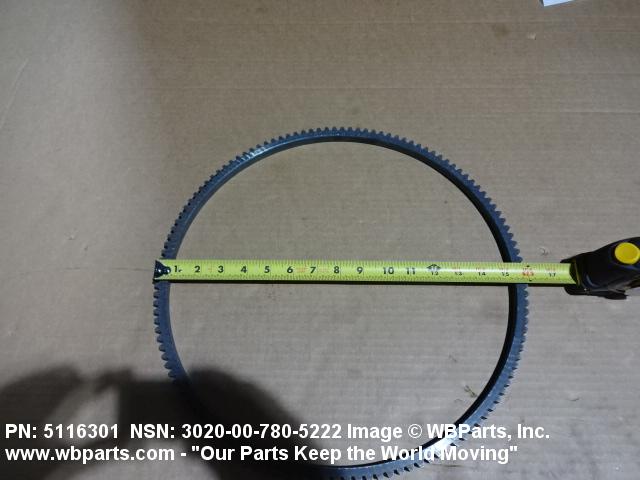

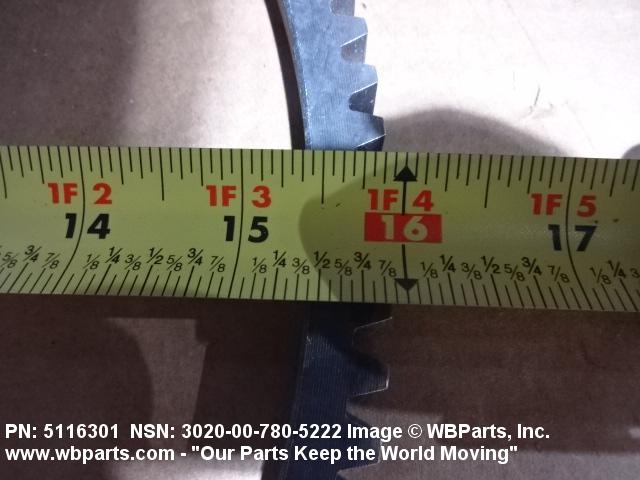

| PITCH DIAMETER | 15.8750 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 15.9375 INCHES |

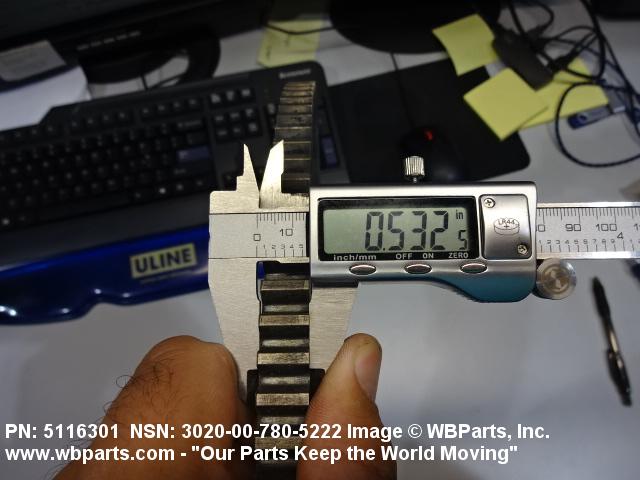

| FACE NOMINAL WIDTH | 0.537 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 14.8125 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| III END ITEM IDENTIFICATION | GRUMMAN A10 AIRCRAFT |
