Product Details | SPUR GEAR
3020-00-787-6661 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 22101182, 221-01-182, 3020-00-787-6661, 00-787-6661, 3020007876661, 007876661
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 20 MAR 1968 | 00-787-6661 | 05466 ( GEAR, SPUR ) |

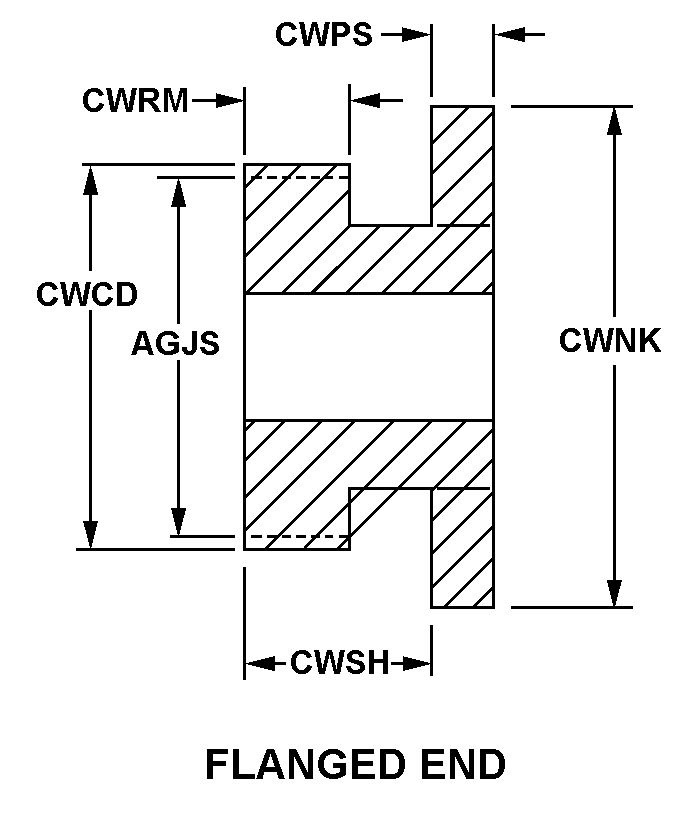

Drawings & Photos | NSN 3020-00-787-6661
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-787-6661
Technical Data | NSN 3020-00-787-6661
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,TYPE 416 COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 19 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 11 FLANGED END |
| PITCH DIAMETER | 0.3125 INCHES NOMINAL |
| FLANGE NOMINAL DIAMETER | 0.562 INCHES |
| NOMINAL OUTSIDE DIAMETER | 0.3281 INCHES |
| FLANGE NOMINAL THICKNESS | 0.032 INCHES |
| FACE NOMINAL WIDTH | 0.099 INCHES |
| NOMINAL DISTANCE BETWEEN OUTER BODY FACE AND INNER FLANGE FACE | 0.2020 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.2031 INCHES FIRST END |
| HUB NOMINAL DIAMETER | 0.260 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 3 COUNTERSUNK AXIALLY THROUGH BODY, FIRST END |
| MOUNTING HOLE NOMINAL DIAMETER | 0.067 INCHES AXIALLY THROUGH FLANGE |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 0.446 INCHES AXIALLY THROUGH FLANGE |
| MANUFACTURERS CODE | 11871 |
| DESIGN CONTROL REFERENCE | 221-01-182 |
