Product Details | SPUR ANTIBACKLASH GEAR

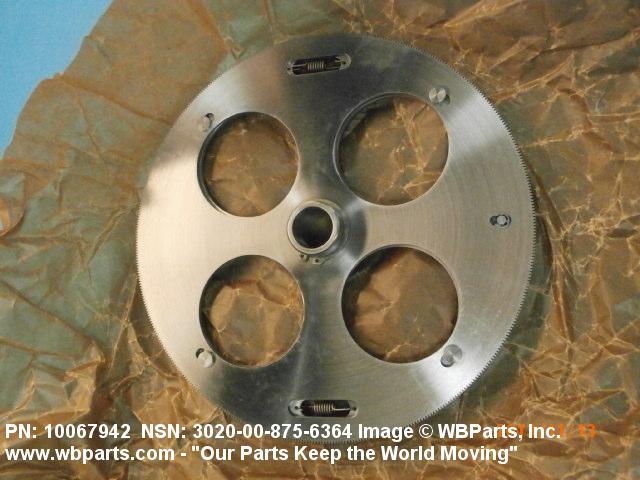

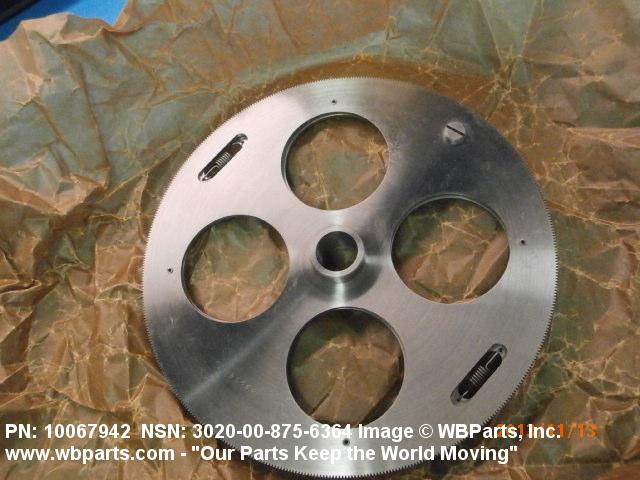

3020-00-875-6364 An item having one fixed gear and one free gear, both having the same complement of spur gear teeth, mounted on a common hub. The free gear is attached to the fixed gear by springs and operates as one gear. Upon installation with the mating gear, the teeth of the free moving gear are preset to mesh with teeth other than those of the fixed gear. This spring tension between the fixed gear and the free gear eliminates any free motion between the driver and the driven gear. The gear is used where identical and accurate transmitted motion between gears is required.
Part Alternates: 10067942, 3020-00-875-6364, 00-875-6364, 3020008756364, 008756364
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-875-6364 | 26668 ( GEAR, ANTIBACKLASH, SPUR ) |

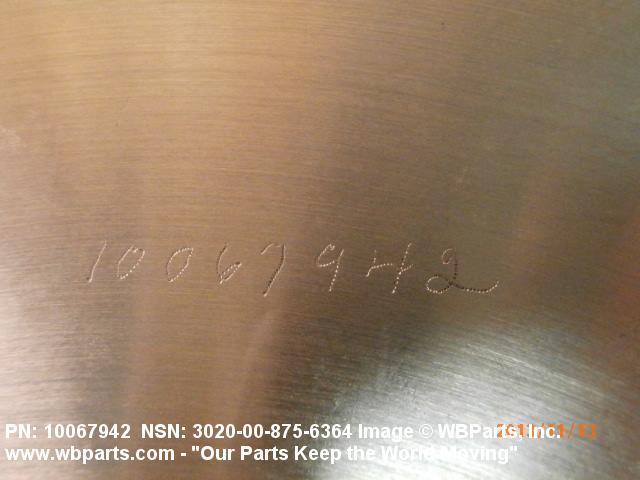

Drawings & Photos | NSN 3020-00-875-6364
Demand History | NSN 3020-00-875-6364
Cross Reference | NSN 3020-00-875-6364
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10067942 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3020-00-875-6364
Related Products | NSN 3020-00-875-6364
3020-00-875-6365, 3020-00-875-6466, 3020-00-875-6467, 3020-00-875-6483, 3020-00-875-6518
Technical Data | NSN 3020-00-875-6364

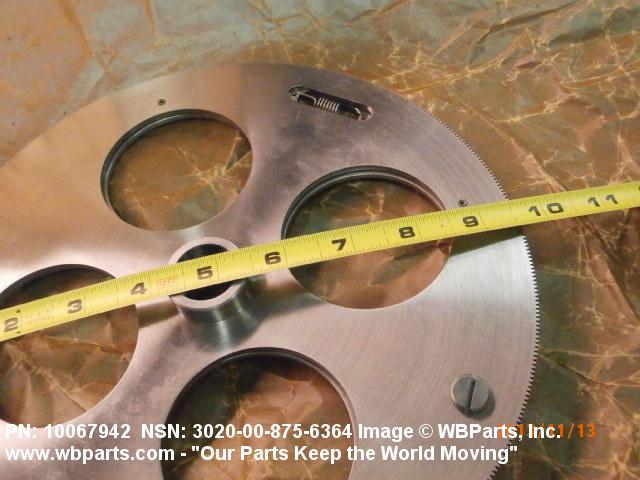

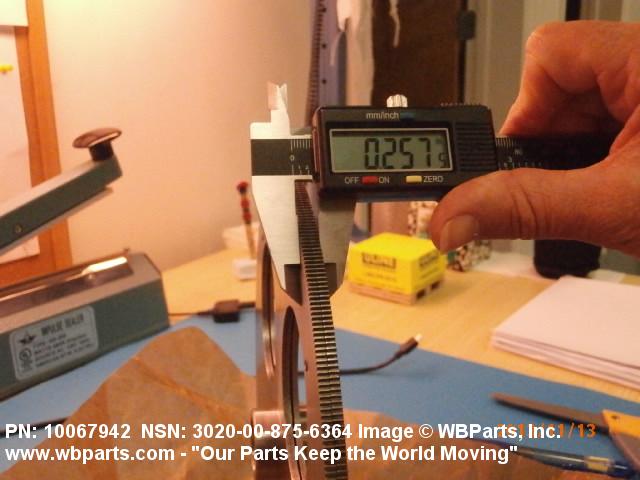

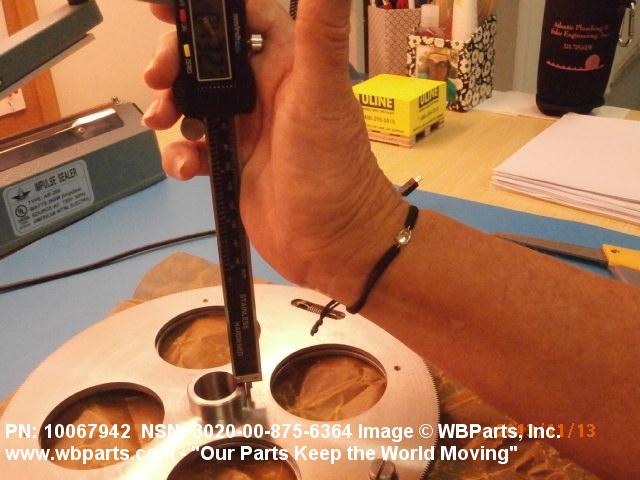

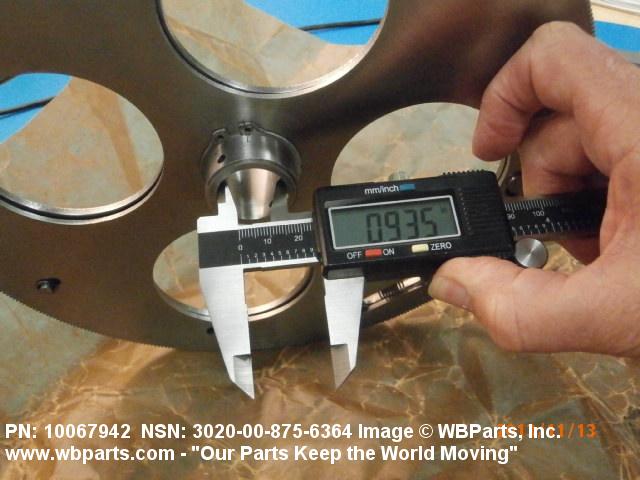

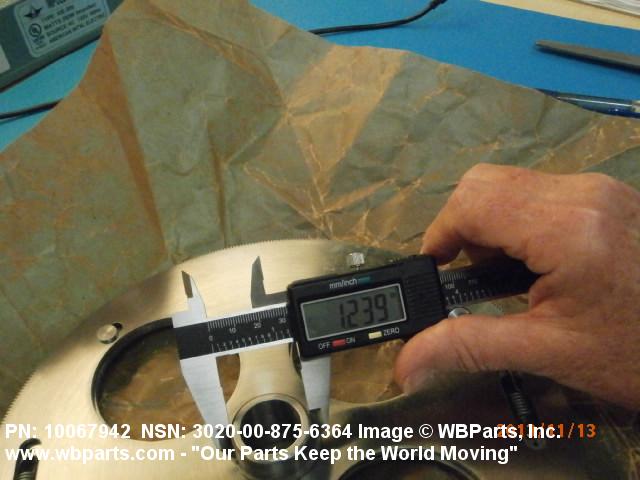

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND T FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TEETH QUANTITY | 456 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 14.5000 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 9.5000 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 9.563 INCHES |
| FACE NOMINAL WIDTH | 0.250 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.563 INCHES FIRST END 0.438 INCHES SECOND END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.938 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 5 PINNED FIRST END 1 PLAIN SECOND END |
| HUB NOMINAL DIAMETER | 1.250 INCHES BOTH ENDS |
