Product Details | GEAR RACK
3020-00-898-1864 A bar-like item with gear teeth on one face for engaging with a spur, bevel, or worm gear, or the like. It is specifically designed for straight line motion.
Part Alternates: 1676709, 3020-00-898-1864, 00-898-1864, 3020008981864, 008981864
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-898-1864 | 05135 ( GEAR RACK ) |
Drawings & Photos | NSN 3020-00-898-1864
Cross Reference | NSN 3020-00-898-1864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1676709 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-898-1864
Related Products | NSN 3020-00-898-1864
Technical Data | NSN 3020-00-898-1864
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624-CANCELED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE M,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 10 |
| TEETH TYPE | SPUR |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |

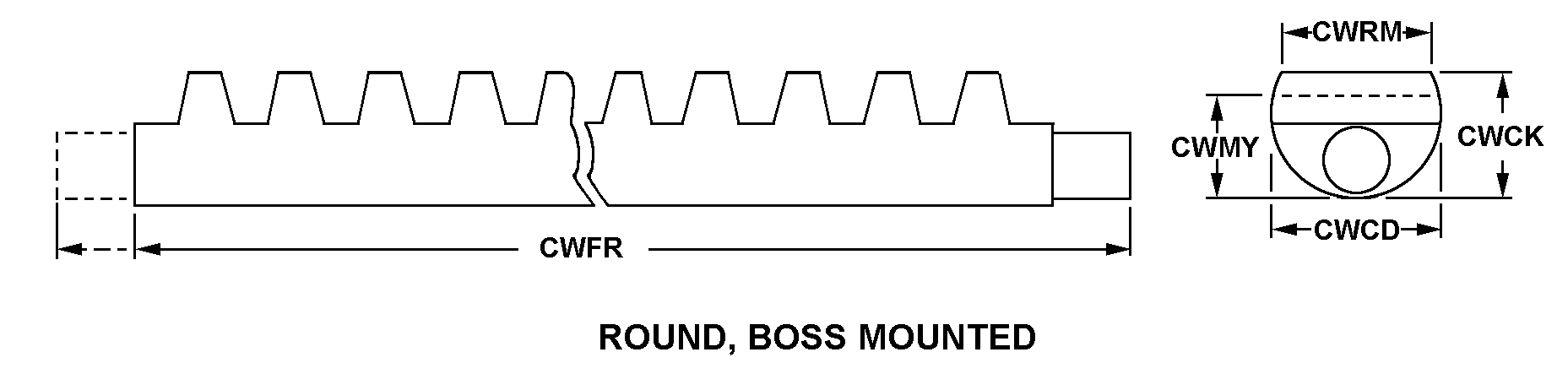

| STYLE DESIGNATOR | 52 ROUND, BOSS MOUNTED |
| PITCH HEIGHT | 0.4220 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 2.312 INCHES |
| NOMINAL THICKNESS | 0.464 INCHES |
| BOSS NOMINAL LENGTH | 0.875 INCHES BOTH ENDS |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1676709 |
