Product Details | CONE PULLEY
3020-00-906-6560 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 32873225, 32-87322-5, 3020-00-906-6560, 00-906-6560, 3020009066560, 009066560
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 JUN 1966 | 00-906-6560 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-00-906-6560
Cross Reference | NSN 3020-00-906-6560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32-87322-5 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-906-6560
Related Products | NSN 3020-00-906-6560
Technical Data | NSN 3020-00-906-6560
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 1.185 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 3.548 INCHES NOMINAL AND 1.8123 INCHES NOMINAL |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 2 |
| GROOVE DEPTH | 0.160 INCHES NOMINAL AND 0.140 INCHES NOMINAL |
| GROOVE WIDTH | 0.160 INCHES NOMINAL AND 0.160 INCHES NOMINAL |
| GROOVE RADIUS | 0.080 INCHES NOMINAL AND 0.080 INCHES NOMINAL |

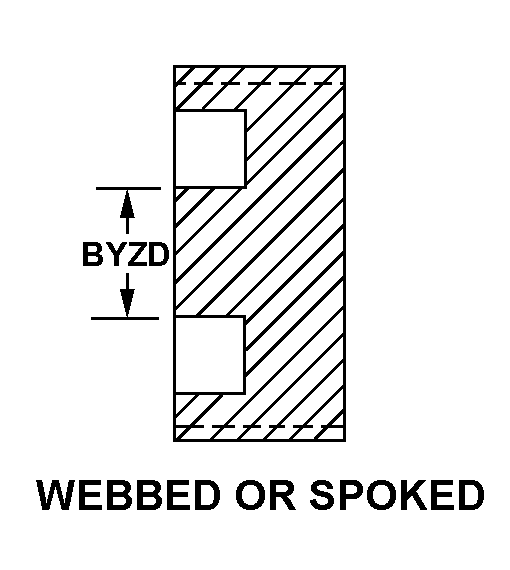

| STYLE DESIGNATOR | E27 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 1.185 INCHES NOMINAL |
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZED |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 0.250 INCHES NOMINAL |
| BORE LENGTH | 1.185 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.505 INCHES NOMINAL AA END |
| SPECIAL FEATURES | (1) LARGE PULLEY GROVE FLATTED ALONG 78 DEG ARC W/O.121 IN. DIA HOLE THRU FACE (2) SPECIAL LABEL: INTERCHANGEABLE-DO NOT ALTER INTERCHANGEABLE POINTS |
