NSN 3020-01-009-4971 158672, 158672-002, 01-009-4971
Product Details | CONE PULLEY
3020-01-009-4971 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 158672, 158672-002, 3020-01-009-4971, 01-009-4971, 3020010094971, 010094971, 158672002
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 SEP 1975 | 01-009-4971 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-01-009-4971
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-009-4971
Related Products | NSN 3020-01-009-4971
Technical Data | NSN 3020-01-009-4971
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 0.740 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 2.190 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 2 |
| GROOVE DEPTH | 0.062 INCHES NOMINAL |
| GROOVE WIDTH | 0.068 INCHES NOMINAL |
| GROOVE RADIUS | 0.038 INCHES NOMINAL |

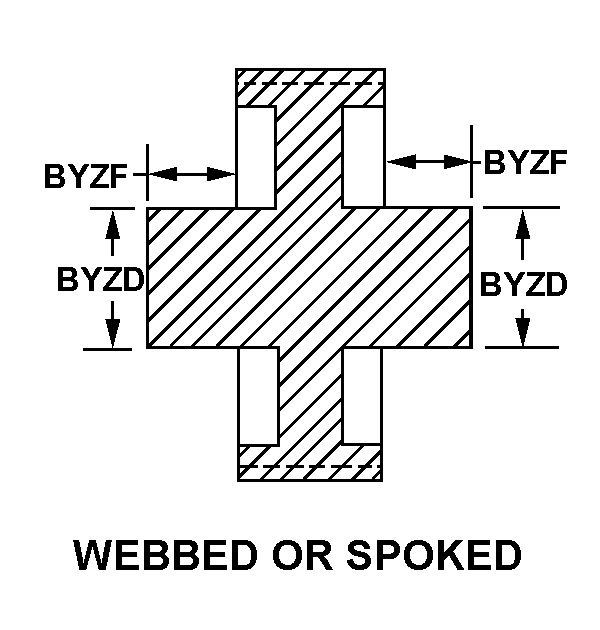

| STYLE DESIGNATOR | E7 WEBBED OR SPOKED |
| DESIGN FORM | SPOKED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 0.740 INCHES NOMINAL |
| MATERIAL AND LOCATION | POLYAMIDE NYLON OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 0.250 INCHES NOMINAL |
| BORE LENGTH | 0.740 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.888 INCHES MINIMUM AA END AND 3.000 INCHES MAXIMUM BB END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.278 INCHES MAXIMUM AA END AND 0.180 INCHES MAXIMUM BB END |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | THREADED HOLE |
| SECURING HOLE QUANTITY | 2 |
| THREAD SIZE | 6.32 |
| HOLE LOCATION | 0.050 IN. FROM SECOND HUB END |
