NSN 3020-01-023-2855 1955783, 40 2HOLEWCS1CL, 402HOLEWCS1CL
Product Details | ROLLER CHAIN LINK
3020-01-023-2855 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Part Alternates: 1955783, 40 2HOLEWCS1CL, 402HOLEWCS1CL, 7379127X3PC24, 73791-27X3PC24, 3020-01-023-2855, 01-023-2855, 3020010232855, 010232855
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 JUN 1976 | 01-023-2855 | 04488 ( LINK, ROLLER CHAIN ) |
Drawings & Photos | NSN 3020-01-023-2855
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-023-2855
Technical Data | NSN 3020-01-023-2855
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 0.500 INCHES |

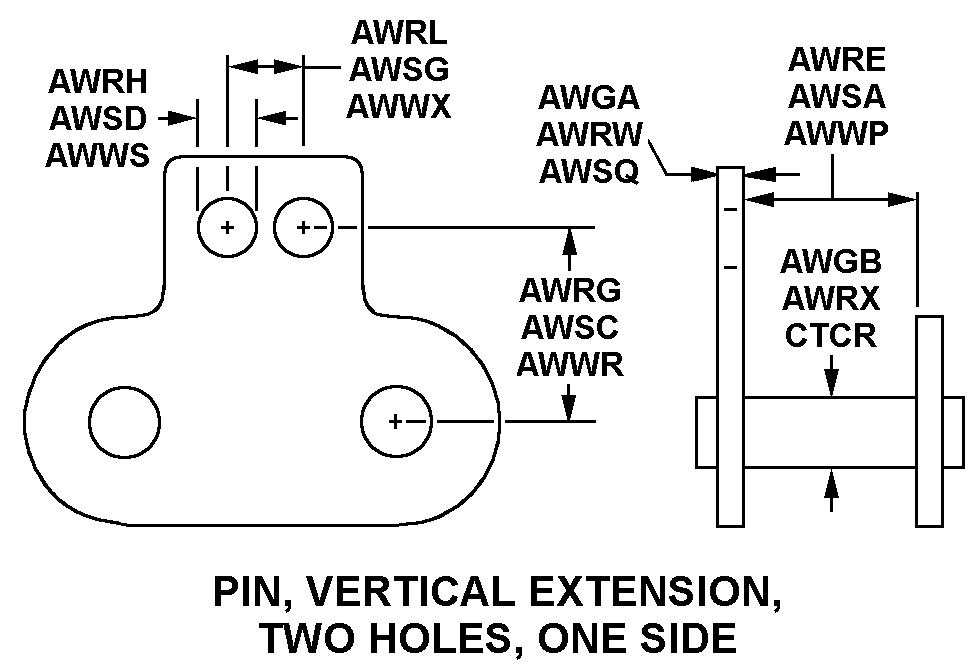

| LINK STYLE | B6 PIN, VERTICAL EXTENSION TWO HOLES, ONE SIDE |
| LINK PLATE NOMINAL THICKNESS | 0.0600 INCHES |
| LINK PIN NOMINAL DIAMETER | 0.1560 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.4375 INCHES |
| LINK HOLE NOMINAL HEIGHT ABOVE CENTER | 0.5030 INCHES |
| LINK HOLE NOMINAL DIAMETER | 0.1250 INCHES |
| LINK DISTANCE BETWEEN HOLE CENTERS | 0.500 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| PIN FASTENING METHOD | RIVETED AND SPRING CLIP |
| PIN OVERALL LENGTH | 0.6875 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3020-01-023-2855
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-023-2855
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
