Product Details | GROOVE PULLEY

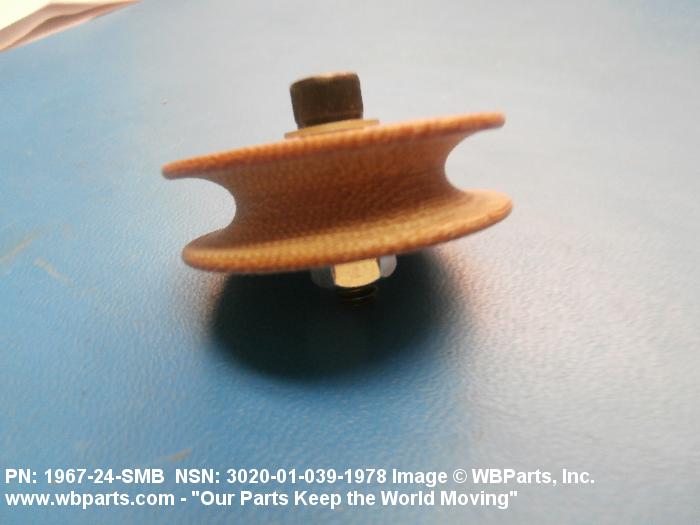

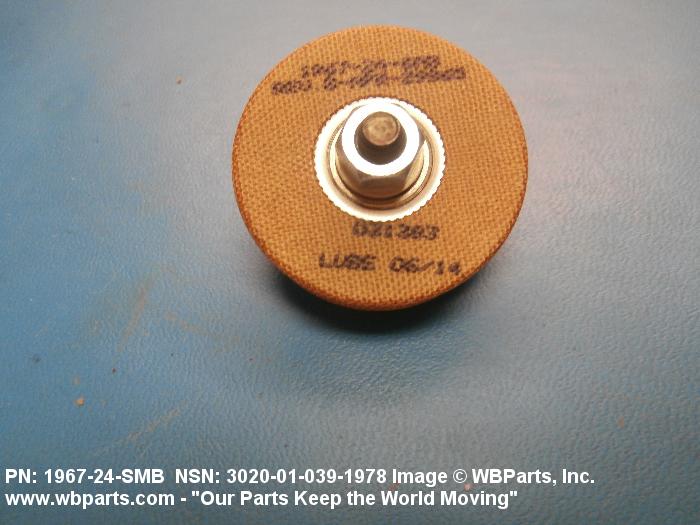

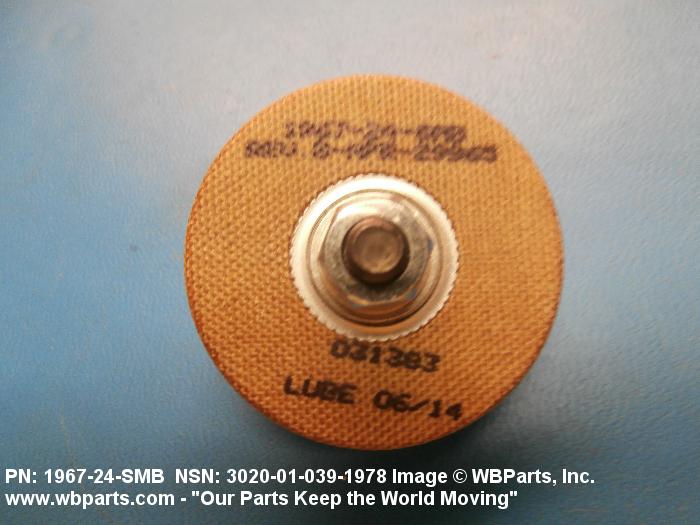

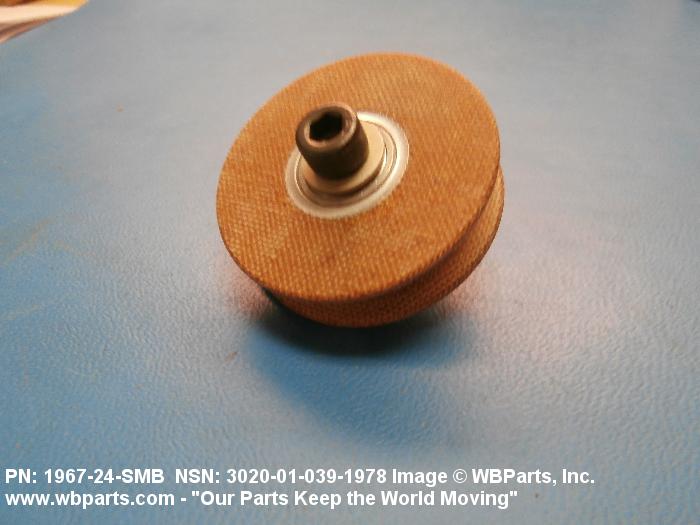

3020-01-039-1978 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.

Part Alternates: 196724, 1967-24, 196724SMB, 1967-24-SMB, 656875, 65-6875, 657444, 65-7444, 3020-01-039-1978, 01-039-1978, 3020010391978, 010391978

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	16 APR 1977	01-039-1978	08109 ( PULLEY, GROOVE )

Drawings & Photos | NSN 3020-01-039-1978

Part Number	Request Date	QTY	Origin
3020-01-039-1978	2017-05-121	317	DIBBS
3020-01-039-1978	2017-04-109	317	DIBBS
3020-01-039-1978	2015-10-274	480	DIBBS
3020-01-039-1978	2015-08-221	143	DIBBS
3020-01-039-1978	2015-07-210	84	DIBBS
3020-01-039-1978	2015-05-140	68	DIBBS
3020-01-039-1978	2015-01-15	111	DIBBS
196724SMB	2015-01-12	2	United States
3020-01-039-1978	2014-12-337	75	DIBBS
3020-01-039-1978	2014-05-148	95	DIBBS
3020-01-039-1978	2013-07-199	41	DIBBS
3020-01-039-1978	2013-05-128	44	DIBBS
3020-01-039-1978	2012-12-342	80	DIBBS
3020-01-039-1978	2012-08-215	35	DIBBS
3020-01-039-1978	2012-05-139	36	DIBBS
3020-01-039-1978	2012-03-75	32	DIBBS
3020-01-039-1978	2011-12-362	48	DIBBS
3020-01-039-1978	2011-12-339	58	DIBBS
3020-01-039-1978	2011-11-320	11	DIBBS
3020-01-039-1978	2011-11-306	9	DIBBS
657444	2010-09-260	4	US
3020-01-039-1978	2009-02-40	28	DIBBS
3020-01-039-1978	2008-11-317	42	DIBBS
3020-01-039-1978	2008-10-294	30	DIBBS
3020-01-039-1978	2008-08-218	45	DIBBS
3020-01-039-1978	2008-05-127	71	DIBBS
3020-01-039-1978	2008-03-64	23	DIBBS
3020-01-039-1978	2007-12-340	106	DIBBS
3020-01-039-1978	2007-06-156	61	DIBBS
3020-01-039-1978	2007-03-67	21	DIBBS

Cross Reference | NSN 3020-01-039-1978

Part Number	Cage Code	Manufacturer
1967-24	29965	ARVAN, INC. DBA AEROSPACE DIVISION
1967-24-SMB	29965	ARVAN, INC. DBA AEROSPACE DIVISION
65-6875	81205	THE BOEING COMPANY DBA BOEING
65-7444	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3020-01-039-1978

Compare

Related Products | NSN 3020-01-039-1978

3020-01-039-1979, 3020-01-039-1980, 3020-01-039-2696, 3020-01-039-2821, 3020-01-039-3379

Technical Data | NSN 3020-01-039-1978

Characteristic	Specifications
STYLE DESIGNATOR	A3 PLAIN

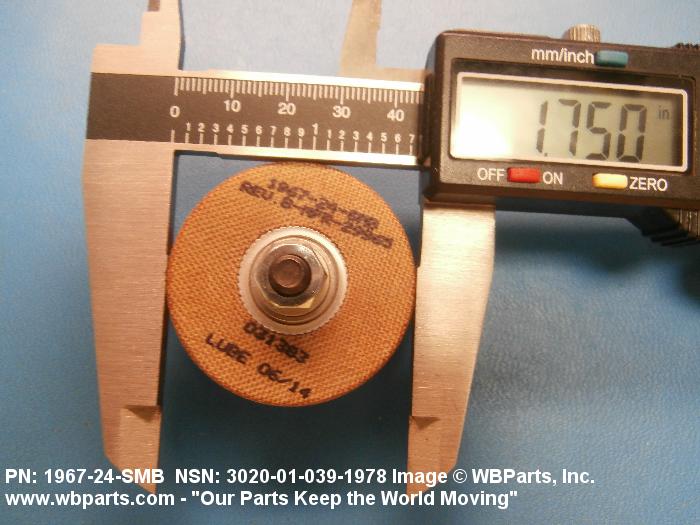

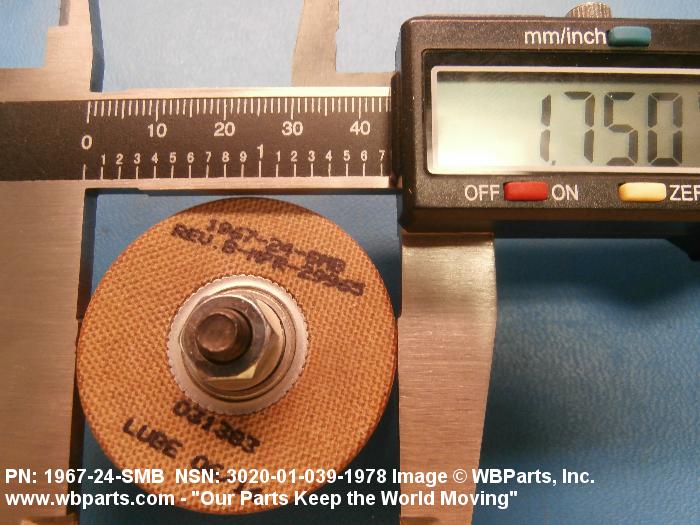

OUTSIDE DIAMETER	1.750 INCHES NOMINAL
OVERALL LENGTH	0.615 INCHES MINIMUM AND 0.620 INCHES MAXIMUM

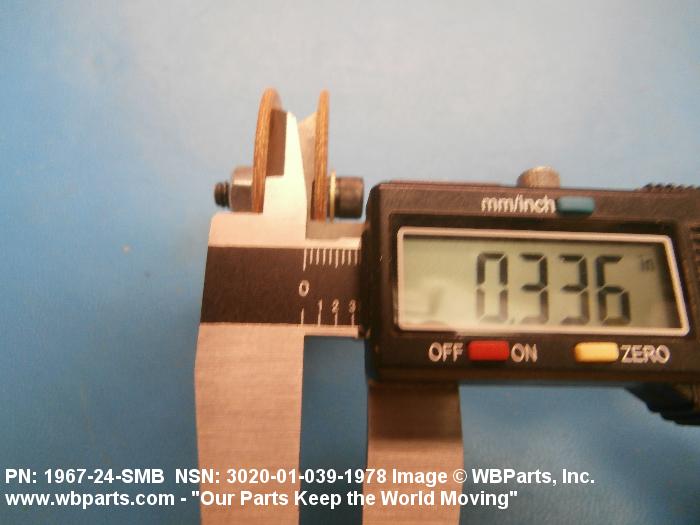

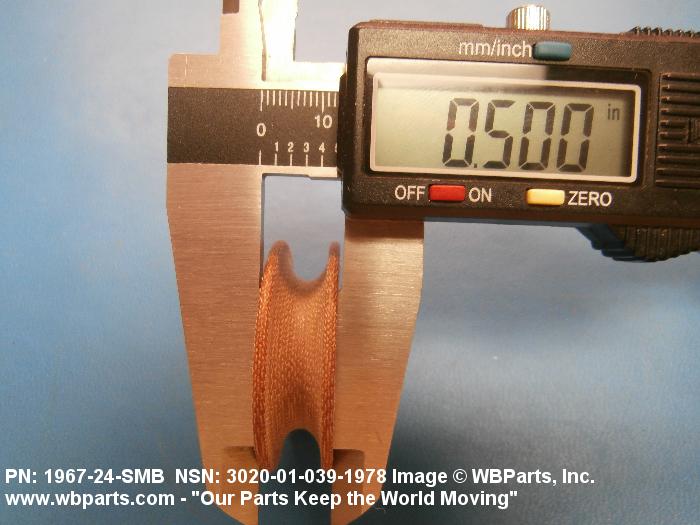

FACE WIDTH	0.493 INCHES MINIMUM AND 0.507 INCHES MAXIMUM
HUB END OUTSIDE DIAMETER AND LOCATION	0.410 INCHES NOMINAL BOTH ENDS
DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION	0.113 INCHES MINIMUM BOTH ENDS AND 0.122 INCHES MAXIMUM BOTH ENDS
DESIGN FORM	PLAIN
LIGHTENING HOLE	NOT INCLUDED
INTEGRAL COOLING VANE	NOT INCLUDED
MATERIAL AND LOCATION	PLASTIC,PHENOLIC REINFORCED WITH NYLON,MIL-P-7034-OVERALL
GROOVE SHAPE	U
GROOVE QUANTITY	1
GROOVE DEPTH	0.625 INCHES NOMINAL
GROOVE WIDTH	0.320 INCHES MINIMUM AND 0.360 INCHES MAXIMUM
GROOVE RADIUS	0.125 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
BORE FEATURE	INCLUDED
BEARINGS	INCLUDED
BEARING TYPE	ANY ACCEPTABLE
BEARING QUANTITY	2
BORE TYPE	STRAIGHT
BORE DIAMETER	0.250 INCHES NOMINAL
BORE LENGTH	0.615 INCHES MINIMUM AND 0.620 INCHES MAXIMUM
COUNTERBORE FEATURE	NOT INCLUDED
KEYING FACILITY	NOT INCLUDED
PROTRUDING HUB CHARACTERISTIC	PLAIN
SPLIT HUB FEATURE	NOT INCLUDED
