NSN 3020-01-060-2549 12253519-2, 01-060-2549, 122535192
Product Details | FLAT PULLEY
3020-01-060-2549 A pulley with a straight or crowned face. The item may include belt aligning flange(s). Excludes PULLEY, CONE. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 12253519-2, 3020-01-060-2549, 01-060-2549, 3020010602549, 122535192, 010602549
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 18 MAY 1978 | 01-060-2549 | 08111 ( PULLEY, FLAT ) |

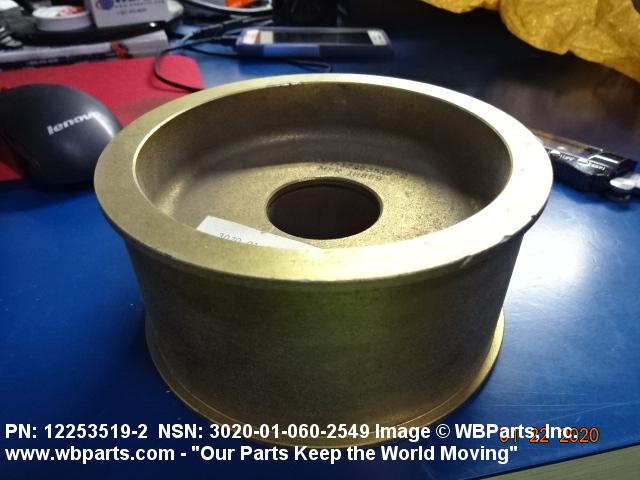

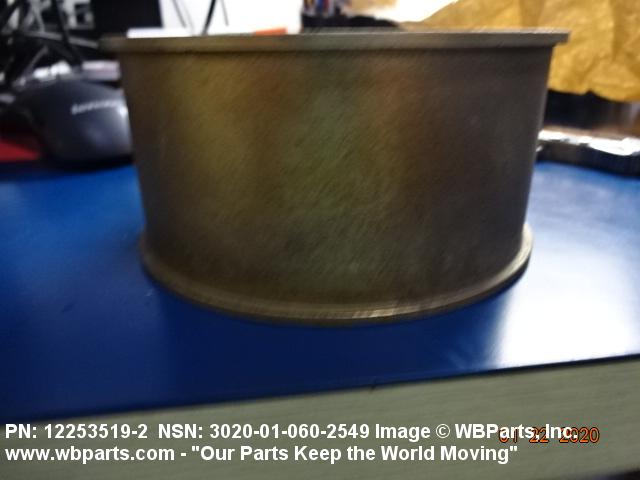

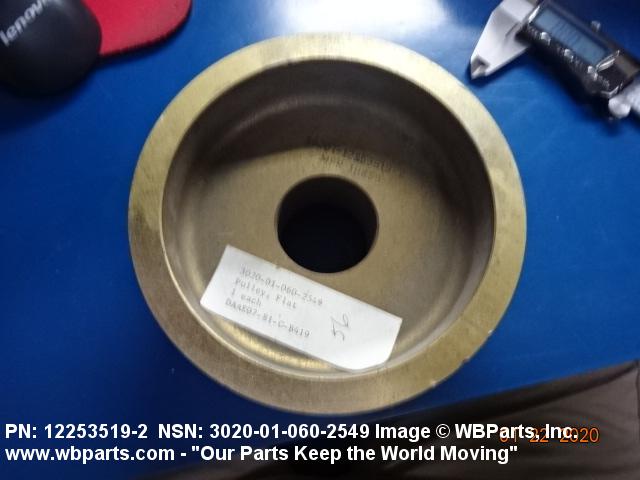

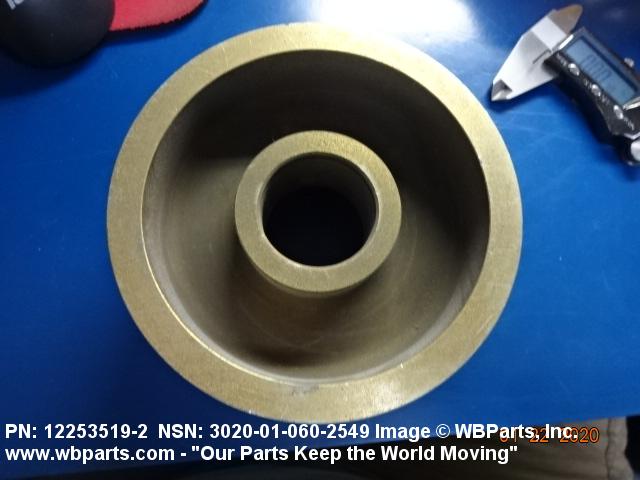

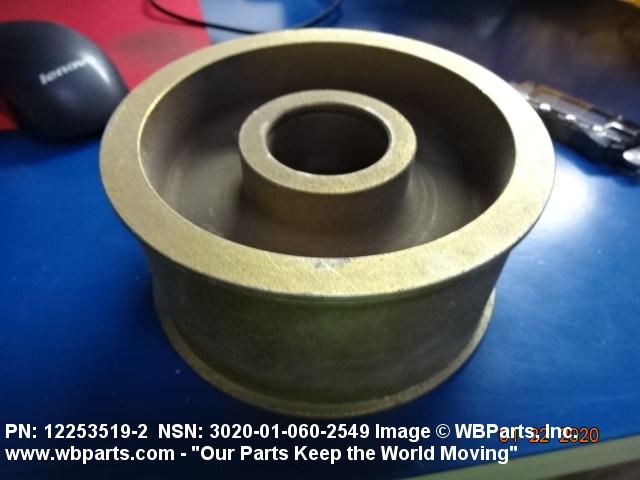

Drawings & Photos | NSN 3020-01-060-2549
Demand History | NSN 3020-01-060-2549
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-060-2549 | 2024-08-228 | 166 | DIBBS |
| 3020-01-060-2549 | 2024-02-38 | 303 | DIBBS |
| 3020-01-060-2549 | 2023-01-17 | 331 | DIBBS |
| 3020-01-060-2549 | 2022-11-317 | 331 | DIBBS |
| 3020-01-060-2549 | 2022-07-209 | 284 | DIBBS |
| 3020-01-060-2549 | 2022-03-66 | 493 | DIBBS |
| 3020-01-060-2549 | 2022-02-55 | 493 | DIBBS |
| 3020-01-060-2549 | 2022-02-34 | 203 | DIBBS |
| 3020-01-060-2549 | 2021-12-340 | 142 | DIBBS |
| 3020-01-060-2549 | 2021-10-301 | 149 | DIBBS |
| 3020-01-060-2549 | 2020-01-30 | 325 | DIBBS |
| 122535192 | 2020-01-06 | 3 | Malaysia |
| 3020-01-060-2549 | 2018-03-84 | 370 | DIBBS |
| 3020-01-060-2549 | 2018-01-16 | 284 | DIBBS |
| 3020-01-060-2549 | 2017-12-346 | 255 | DIBBS |
| 3020-01-060-2549 | 2017-08-215 | 274 | DIBBS |
| 12253519-2 | 2017-07-187 | 6 | PK |
| 3020-01-060-2549 | 2016-12-364 | 353 | DIBBS |
| 3020-01-060-2549 | 2016-10-287 | 233 | DIBBS |
| 3020-01-060-2549 | 2016-10-276 | 233 | DIBBS |
| 3020-01-060-2549 | 2013-10-275 | 259 | DIBBS |
| 3020-01-060-2549 | 2013-06-156 | 10 | United States |
| 3020-01-060-2549 | 2013-03-64 | 968 | DIBBS |
| 3020-01-060-2549 | 2013-01-11 | 272 | DIBBS |
| 3020-01-060-2549 | 2012-12-353 | 695 | DIBBS |
| 3020-01-060-2549 | 2009-01-30 | 255 | DIBBS |
Cross Reference | NSN 3020-01-060-2549
| Part Number | Cage Code | Manufacturer |
|---|---|---|

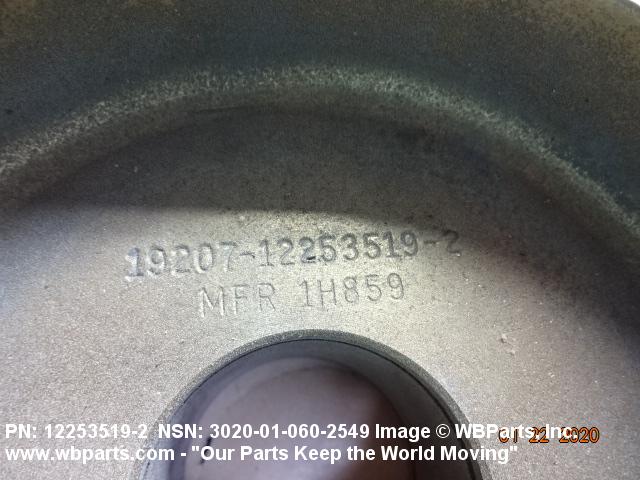

| 12253519-2 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-060-2549
Related Products | NSN 3020-01-060-2549
Technical Data | NSN 3020-01-060-2549
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 PLAIN |
| OUTSIDE DIAMETER | 5.380 INCHES NOMINAL |

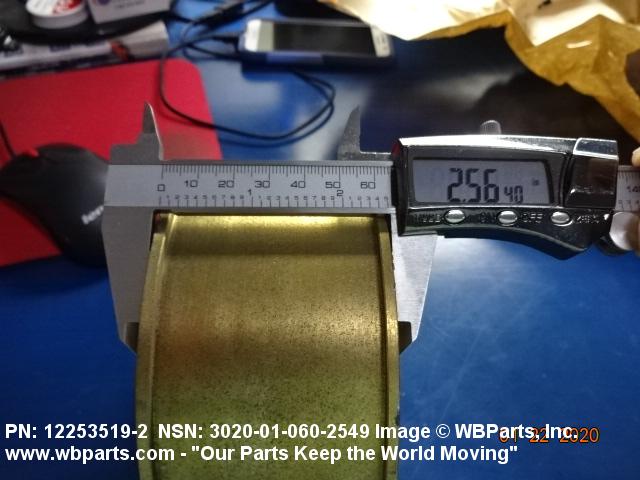

| FACE WIDTH | 2.560 INCHES NOMINAL |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| CROWN FACE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM PLATED |
| RIM TYPE | DOUBLE SPLIT |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |

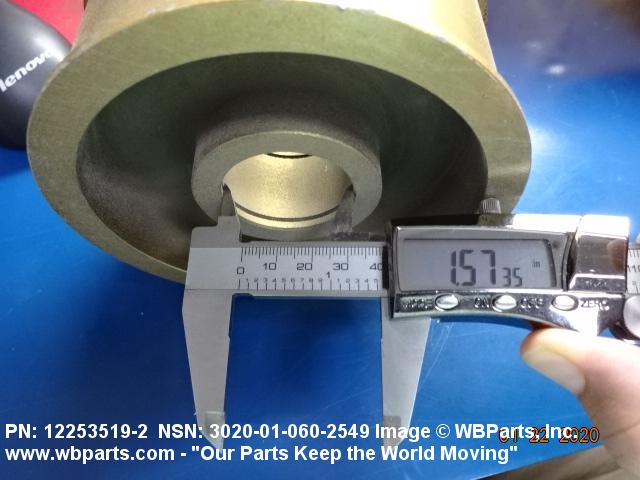

| BORE DIAMETER | 1.574 INCHES NOMINAL |

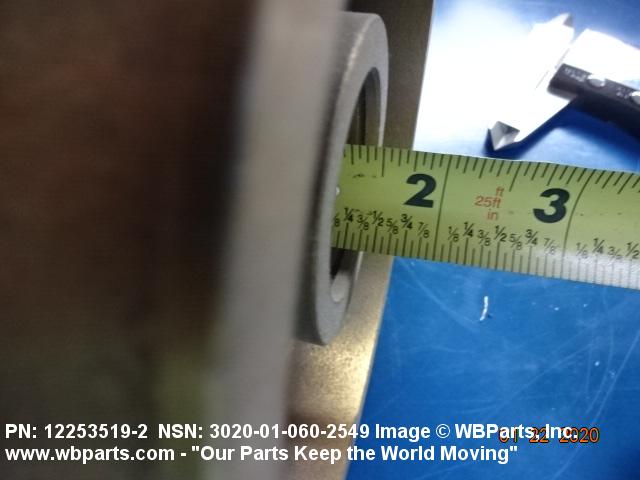

| BORE LENGTH | 1.380 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| SPLIT HUB FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12253519-2 |
Restrictions/Controls & Freight Information | NSN 3020-01-060-2549
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127320 | PULLEYS/SHEAVES,NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-060-2549
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MC | M113A1/A2 Armored Personnel Carrier, Combat Vehicle, Anti tank |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
