Product Details | CONE PULLEY
3020-01-141-7236 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 78001, 3020-01-141-7236, 01-141-7236, 3020011417236, 011417236
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 03 NOV 1982 | 01-141-7236 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-01-141-7236
Cross Reference | NSN 3020-01-141-7236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78001 | 59500 | TENNANT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-141-7236
Related Products | NSN 3020-01-141-7236
Technical Data | NSN 3020-01-141-7236
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 0.688 INCHES NOMINAL AND 0.688 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 6.297 INCHES NOMINAL AND 5.750 INCHES NOMINAL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 2 |
| GROOVE DEPTH | 0.344 INCHES NOMINAL AND 0.688 INCHES NOMINAL |
| GROOVE WIDTH | 0.380 INCHES NOMINAL AND 0.429 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 38.0 AND 40.0 |
| STANDARD V-BELT SECTION DESIGNATION FOR WHICH DESIGNED | ANY ACCEPTABLE |
| V GROOVE PITCH DIAMETER | 7.500 INCHES NOMINAL AND 5.422 INCHES NOMINAL |

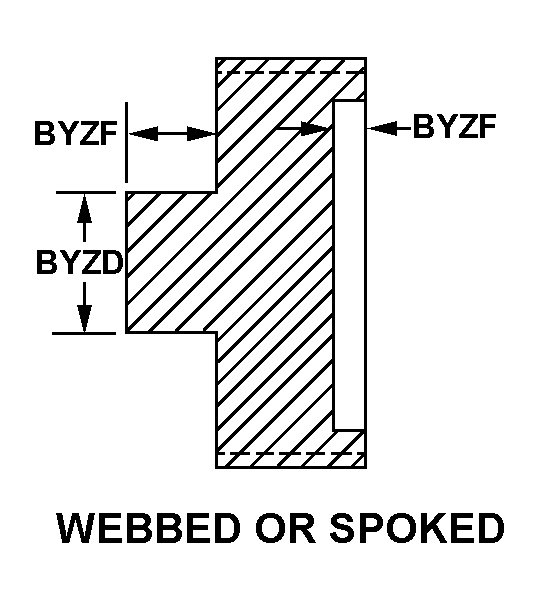

| STYLE DESIGNATOR | E10 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 8.016 INCHES NOMINAL |
| MATERIAL AND LOCATION | IRON, CAST, QQ-I-652, CLASS 30 OVERALL |
| SURFACE TREATMENT | PAINTED |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 1.963 INCHES NOMINAL |
| BORE LENGTH | 8.016 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.963 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.188 INCHES NOMINAL AA END AND 1.266 INCHES NOMINAL BB END |
