Product Details | CONE PULLEY
3020-01-146-3773 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 3013336, 5731066, 3020-01-146-3773, 01-146-3773, 3020011463773, 011463773
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 29 JAN 1983 | 01-146-3773 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-01-146-3773
Demand History | NSN 3020-01-146-3773
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-146-3773 | 2011-08-241 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-146-3773
Related Products | NSN 3020-01-146-3773
Technical Data | NSN 3020-01-146-3773
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 1.040 INCHES NOMINAL AND 2.190 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 7.550 INCHES NOMINAL AND 7.035 INCHES NOMINAL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.560 INCHES NOMINAL AND 0.690 INCHES NOMINAL AND 0.690 INCHES NOMINAL |
| GROOVE WIDTH | 0.515 INCHES NOMINAL AND 0.800 INCHES NOMINAL AND 0.800 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.0 AND 38.0 AND 38.0 |
| STANDARD V-BELT SECTION DESIGNATION FOR WHICH DESIGNED | ANY ACCEPTABLE |
| V GROOVE PITCH DIAMETER | ANY ACCEPTABLE |

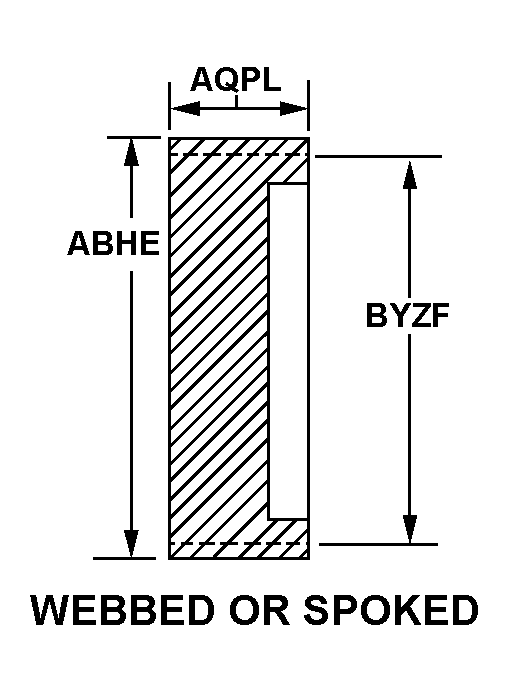

| STYLE DESIGNATOR | E4 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 3.235 INCHES NOMINAL |
| MATERIAL AND LOCATION | IRON, CAST OVERALL |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | BB END |
| COUNTERBORE DIAMETER | 3.751 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.595 INCHES NOMINAL |
| BORE DIAMETER | 1.875 INCHES NOMINAL |
| BORE LENGTH | 0.645 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 2.140 INCHES NOMINAL AA END |
| SECURING METHOD | DRILLED HOLE |
| SECURING HOLE QUANTITY | 6 |
| HOLE LOCATION | IN FIRST PULLEY SURFACE |
| BOLT CIRCLE DIAMETER | 1.280 INCHES NOMINAL |
| DRILLED HOLE DIAMETER | 0.406 INCHES NOMINAL |
