NSN 3020-01-154-7664 10501236, 2402-8213.02, 2402821302
Product Details | SPUR GEAR

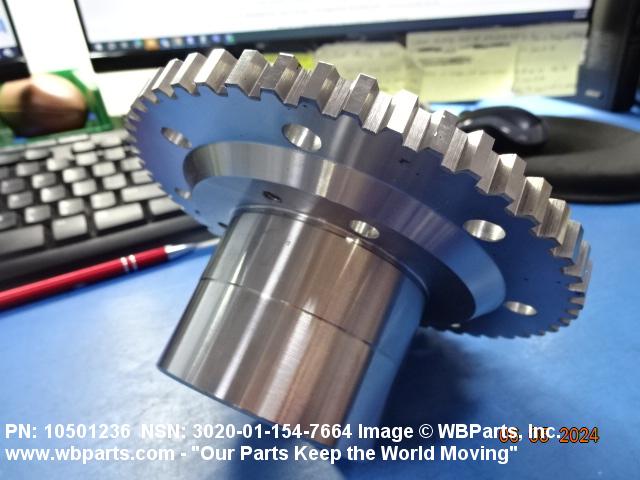

3020-01-154-7664 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 10501236, 2402-8213.02, 2402821302, 3020-01-154-7664, 01-154-7664, 3020011547664, 011547664
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 31 MAY 1983 | 01-154-7664 | 05466 ( GEAR, SPUR ) |

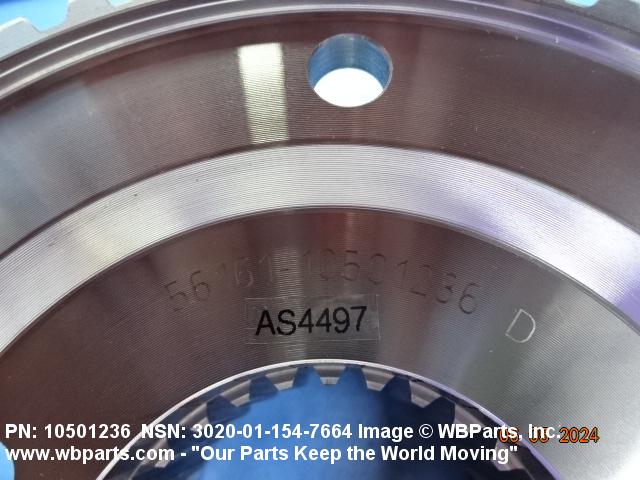

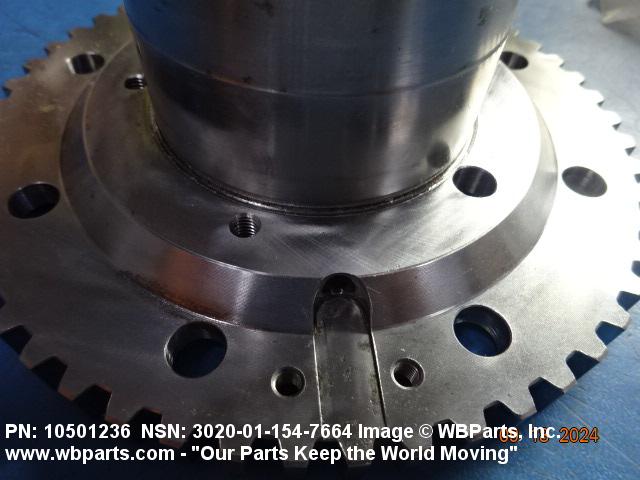

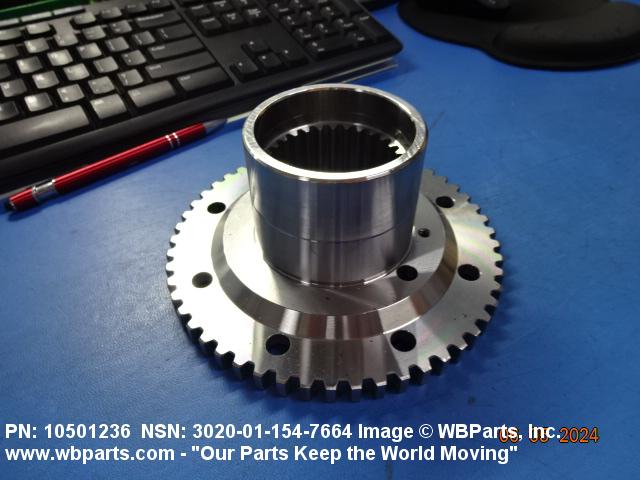

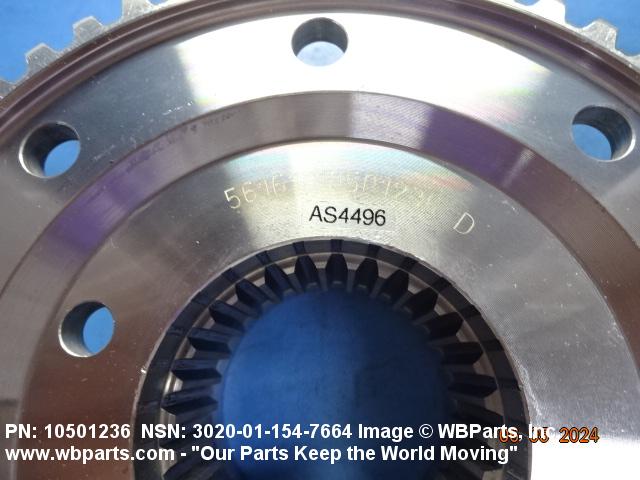

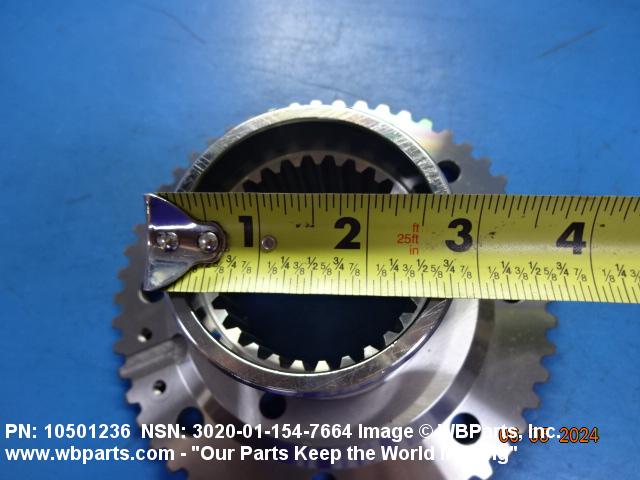

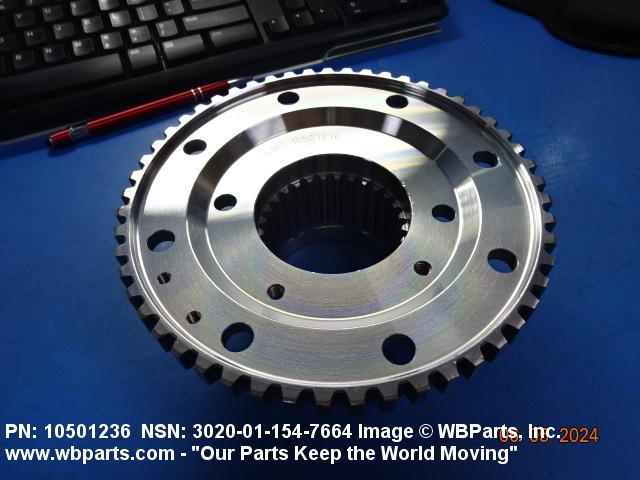

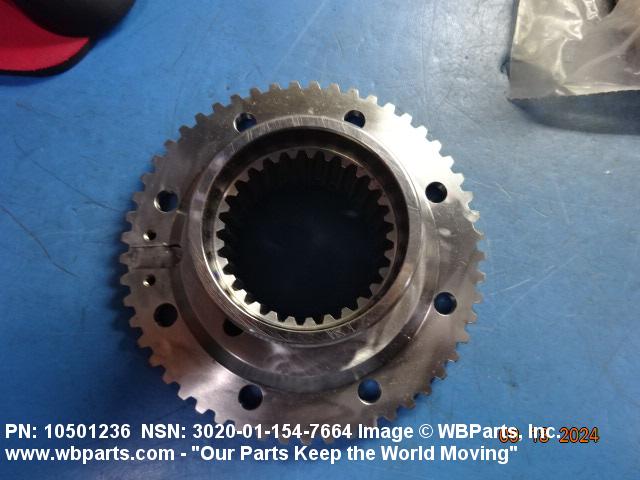

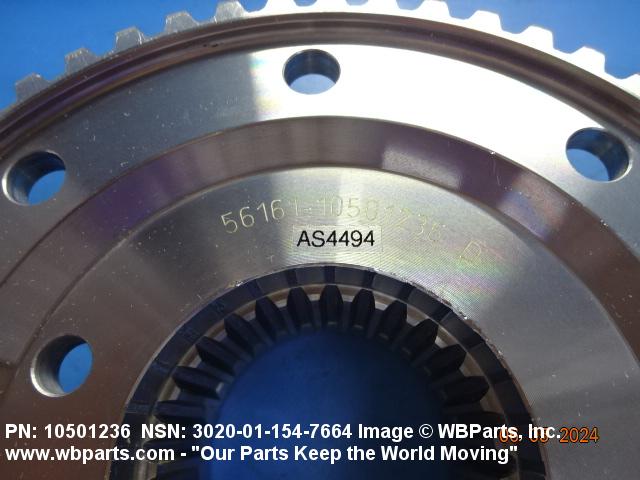

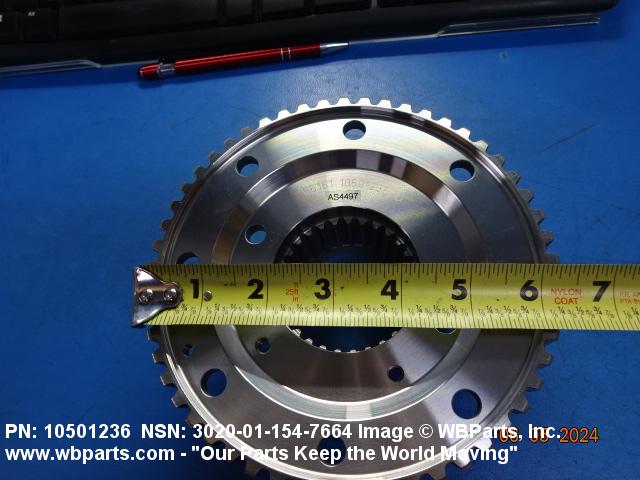

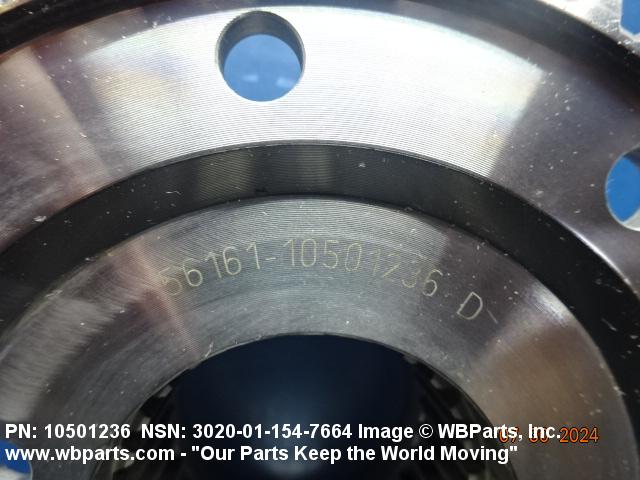

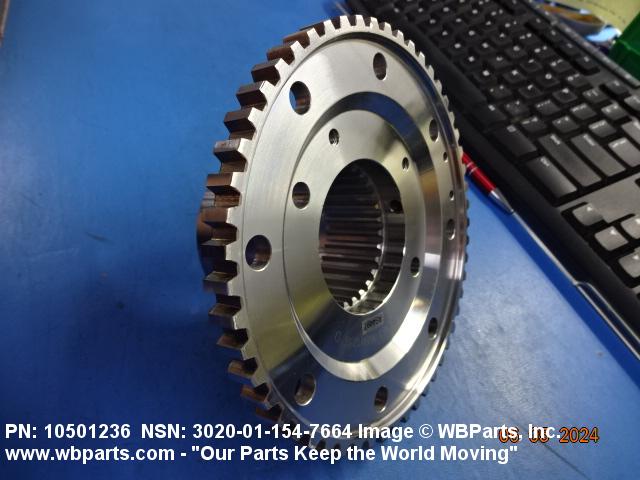

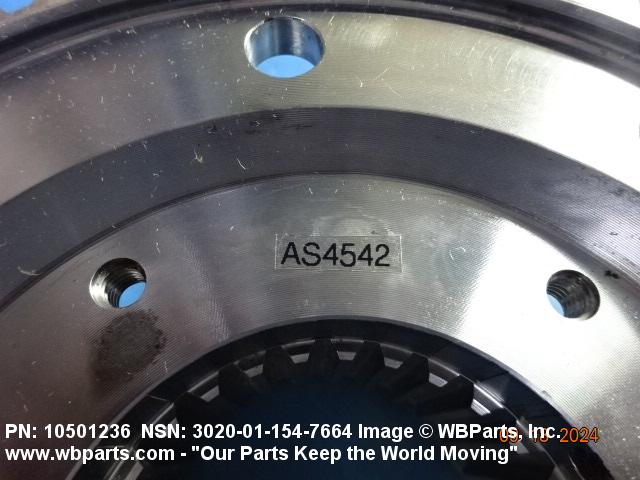

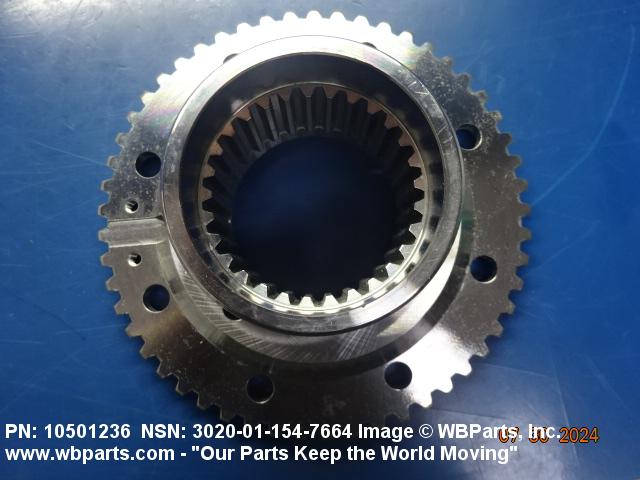

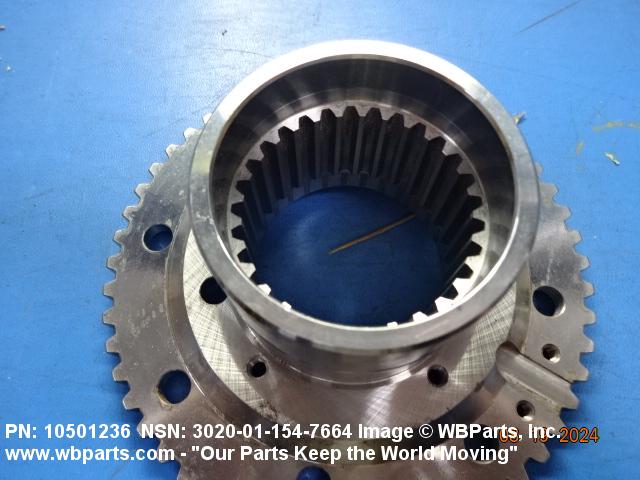

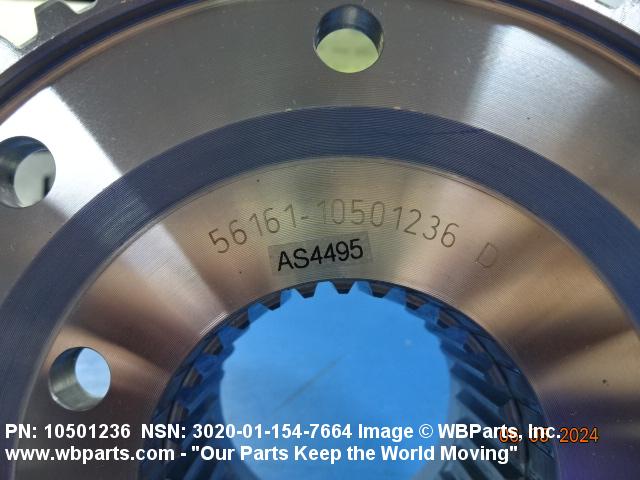

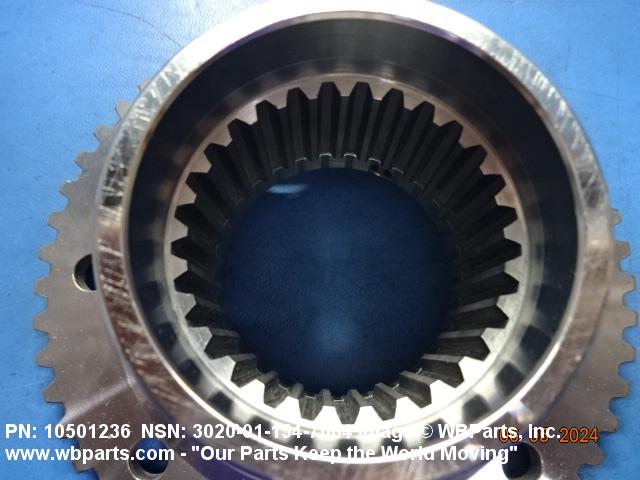

Drawings & Photos | NSN 3020-01-154-7664
Demand History | NSN 3020-01-154-7664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10501236 | 2026-03-60 | 26 | DIBBS |
| 2402-8213.02 | 2026-03-60 | 26 | DIBBS |
| 10501236 | 2025-07-198 | 4 | DIBBS |
| 2402-8213.02 | 2025-07-198 | 4 | DIBBS |
| 10501236 | 2024-09-268 | 45 | DIBBS |
| 2402-8213.02 | 2024-09-268 | 45 | DIBBS |
| 3020-01-154-7664 | 2024-08-238 | 12 | United States |
| 3020-01-154-7664 | 2024-08-219 | 12 | United States |
| 10501236 | 2024-08-214 | 6 | DIBBS |
| 2402-8213.02 | 2024-08-214 | 6 | DIBBS |
| 3020-01-154-7664 | 2024-06-178 | 12 | United States |
| 10501236 | 2024-05-136 | 50 | DIBBS |
| 2402-8213.02 | 2024-05-136 | 50 | DIBBS |
| 10501236 | 2024-05-129 | 17 | DIBBS |
| 2402-8213.02 | 2024-05-129 | 17 | DIBBS |
| 3020-01-154-7664 | 2024-05-123 | 10 | United States |
| 10501236 | 2024-04-121 | 33 | DIBBS |
| 2402-8213.02 | 2024-04-121 | 33 | DIBBS |
| 3020-01-154-7664 | 2024-04-95 | 10 | United States |
| 10501236 | 2024-02-39 | 17 | DIBBS |
| 2402-8213.02 | 2024-02-39 | 17 | DIBBS |
| 3020-01-154-7664 | 2023-07-208 | 1 | CL |
| 3020-01-154-7664 | 2023-07-206 | 10 | CL |
| 10501236 | 2019-03-66 | 69 | DIBBS |
| 2402-8213.02 | 2019-03-66 | 69 | DIBBS |
| 3020-01-154-7664 | 2018-07-201 | 100 | SA |
