NSN 3020-01-166-6403 12269591, 01-166-6403, 011666403
Product Details | CONE PULLEY
3020-01-166-6403 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 12269591, 3020-01-166-6403, 01-166-6403, 3020011666403, 011666403
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 15 NOV 1983 | 01-166-6403 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-01-166-6403
Demand History | NSN 3020-01-166-6403
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-166-6403 | 2025-07-206 | 1 | US |
| 3020-01-166-6403 | 2017-12-356 | 20 | DIBBS |
| 3020-01-166-6403 | 2017-12-355 | 20 | DIBBS |
| 3020-01-166-6403 | 2013-06-156 | 8 | DIBBS |
| 3020-01-166-6403 | 2013-02-53 | 1 | DIBBS |
| 3020-01-166-6403 | 2012-11-318 | 10 | DIBBS |
| 3020-01-166-6403 | 2011-12-342 | 20 | DIBBS |
Cross Reference | NSN 3020-01-166-6403
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12269591 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-166-6403
Related Products | NSN 3020-01-166-6403
Technical Data | NSN 3020-01-166-6403
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| FACE WIDTH | 7.562 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 4.519 INCHES MINIMUM AND 4.569 INCHES MAXIMUM |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 4 |
| GROOVE DEPTH | 0.735 INCHES NOMINAL |
| GROOVE WIDTH | 0.438 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 35.0 AND 36.0 |

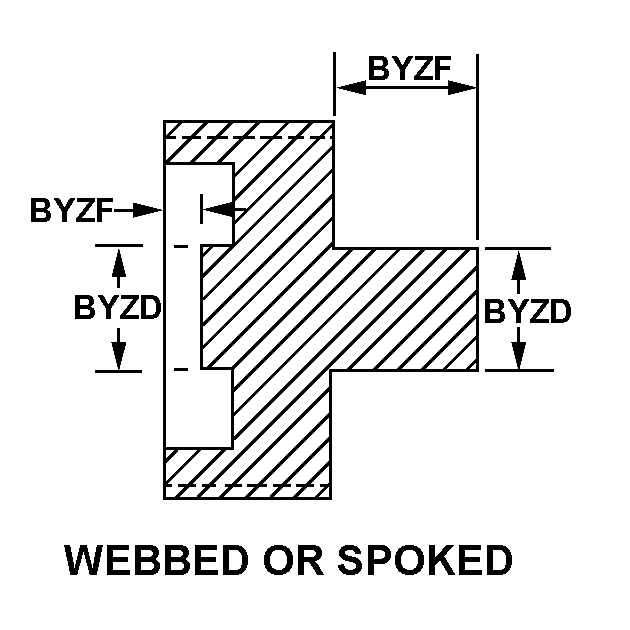

| STYLE DESIGNATOR | E25 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 7.562 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, ASTM A27, GRADE 65-35 OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 1.000 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| BORE LENGTH | 1.875 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.609 INCHES MINIMUM AND 0.613 INCHES MAXIMUM |
| HUB END OUTSIDE DIAMETER AND LOCATION | 4.569 INCHES MINIMUM AA END AND 1.620 INCHES MAXIMUM BB END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.840 INCHES MINIMUM AA END AND 0.832 INCHES MAXIMUM BB END |
Restrictions/Controls & Freight Information | NSN 3020-01-166-6403
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-166-6403
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
