Product Details | CONE PULLEY
3020-01-170-9292 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 9290239, 3020-01-170-9292, 01-170-9292, 3020011709292, 011709292
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 31 JAN 1984 | 01-170-9292 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-01-170-9292
Cross Reference | NSN 3020-01-170-9292
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9290239 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-170-9292
Related Products | NSN 3020-01-170-9292
Technical Data | NSN 3020-01-170-9292

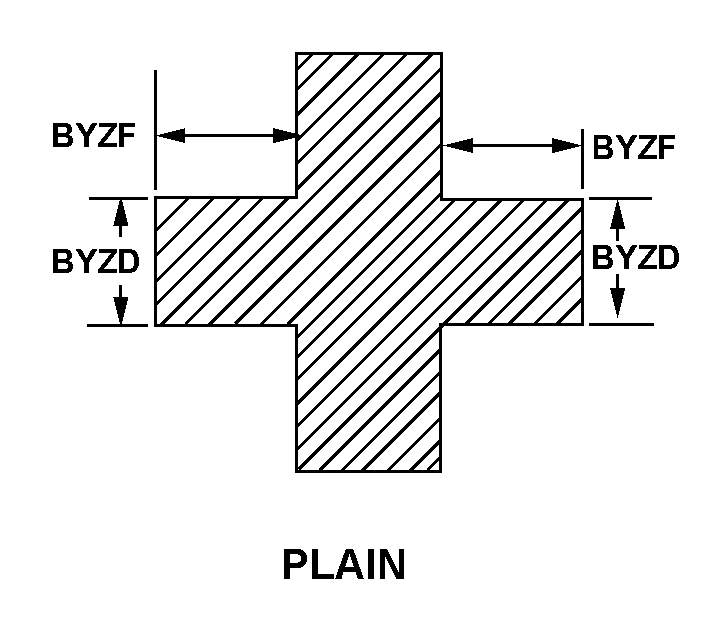

| Characteristic | Specifications |
|---|---|
| FACE TYPE | TAPERED CONE |
| FACE WIDTH | 0.750 INCHES NOMINAL |
| LARGE END OUTSIDE DIAMETER | 10.250 INCHES NOMINAL |
| SMALL END OUTSIDE DIAMETER | 8.609 INCHES NOMINAL |
| STYLE DESIGNATOR | E3 PLAIN |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 2.560 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, MIL-S-6758 OVERALL |
| SURFACE TREATMENT | ENAMELED |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | INVOLUTE SPLINE |
| SPLINE QUANTITY | 16 |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SPLINE PITCH DIAMETER | 2.000 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 2.169 INCHES NOMINAL |
| SPLINE MINOR DIAMETER | 1.881 INCHES NOMINAL |
| SPLINE LENGTH | 0.370 INCHES NOMINAL |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | BB END |
| COUNTERBORE DIAMETER | 2.600 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.380 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | GROOVED |
| FIRST END GROOVE DIAMETER AND LOCATION | 2.380 INCHES NOMINAL AA END |
| FIRST END GROOVE WIDTH AND LOCATION | 0.320 INCHES NOMINAL AA END |
| FIRST END LENGTH FROM GROOVE TO END AND LOCATION | 0.240 INCHES NOMINAL AA END |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.750 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.810 INCHES NOMINAL AA END |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.750 INCHES NOMINAL AA END AND 3.300 INCHES NOMINAL BB END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.810 INCHES NOMINAL AA END AND 0.380 INCHES NOMINAL BB END |
| GROOVE/STEP LOCATION | AA END |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | 24 HOLES 0.812 DIA BEVEL FACE |
