NSN 3020-01-204-5881 0072601, 007260-1, 01-204-5881
Product Details | SPROCKET WHEEL
3020-01-204-5881 A toothed wheel whose teeth or sprockets are designed to be engaged with the links of a pitch chain, track, or the like. It is usually used for transmitting power.
Part Alternates: 0072601, 007260-1, 3020-01-204-5881, 01-204-5881, 3020012045881, 012045881
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 28 MAR 1985 | 01-204-5881 | 04456 ( SPROCKET WHEEL ) |

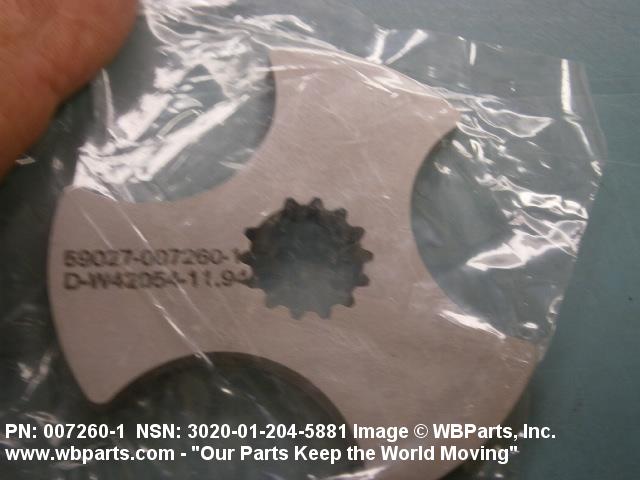

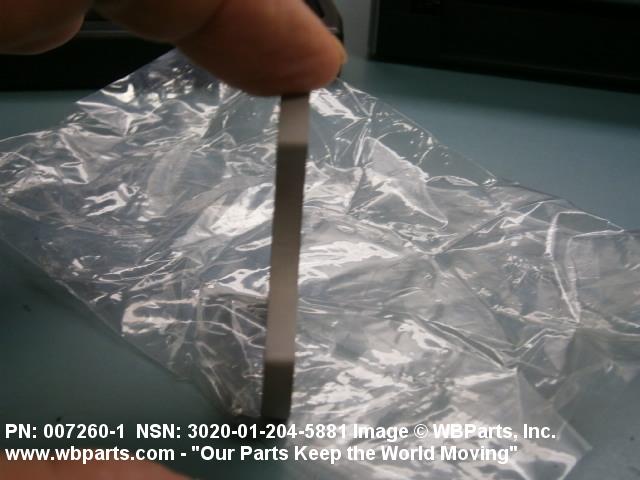

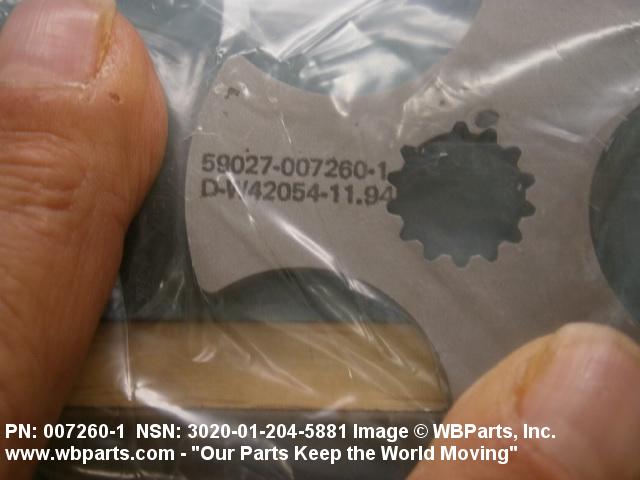

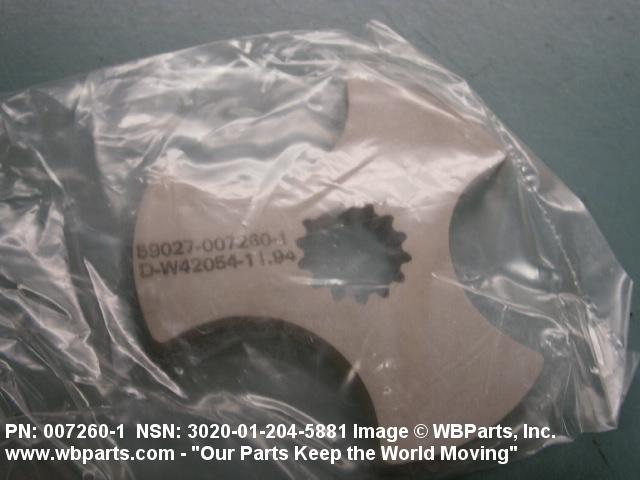

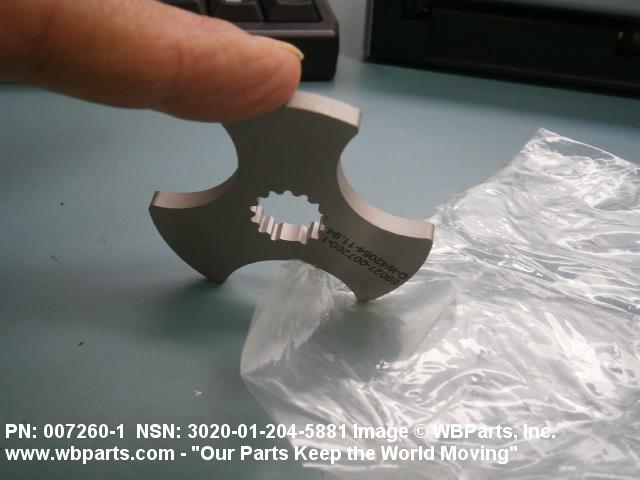

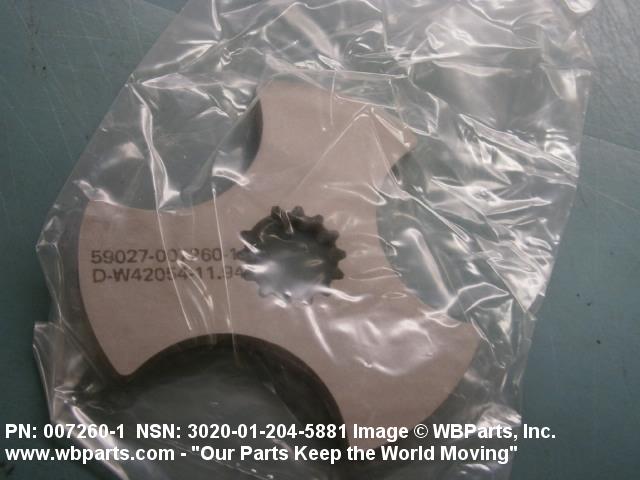

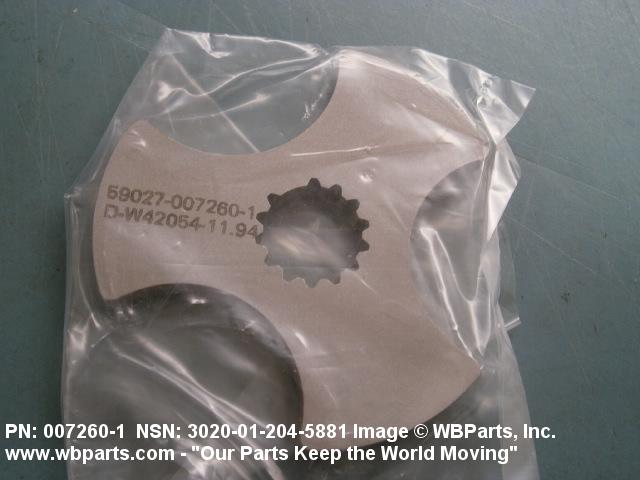

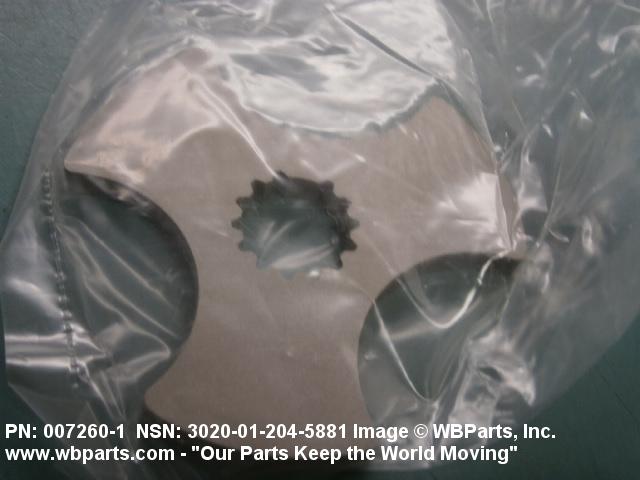

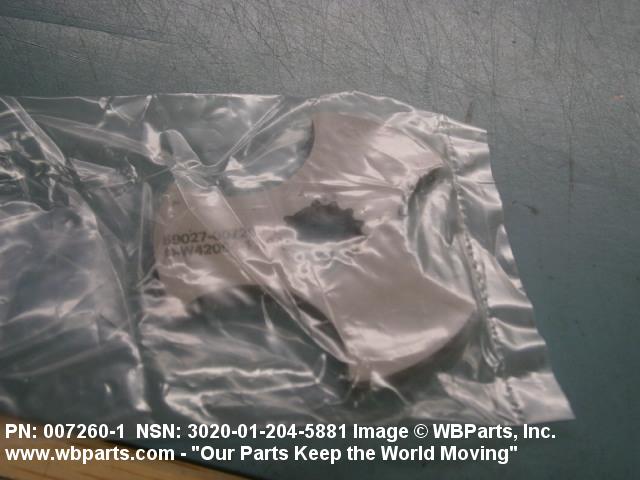

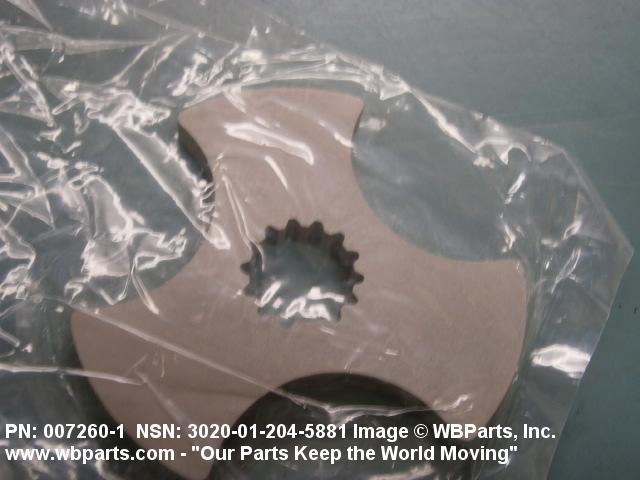

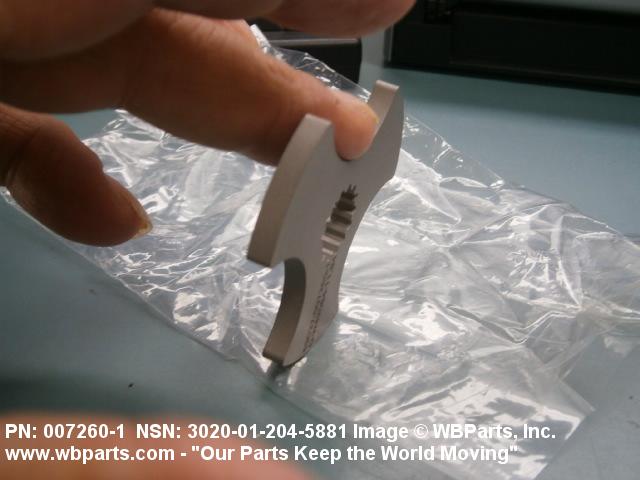

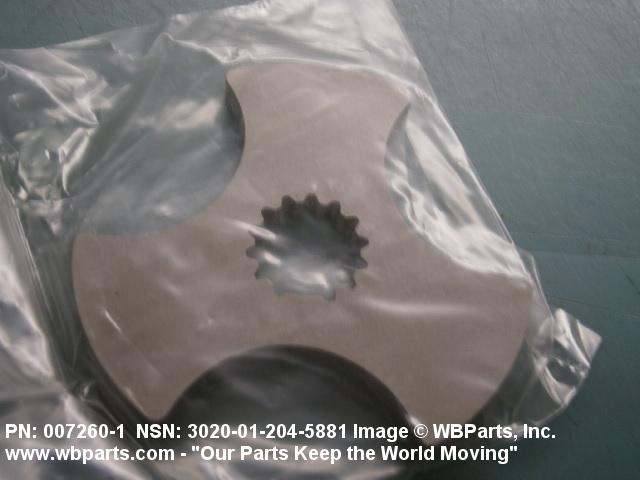

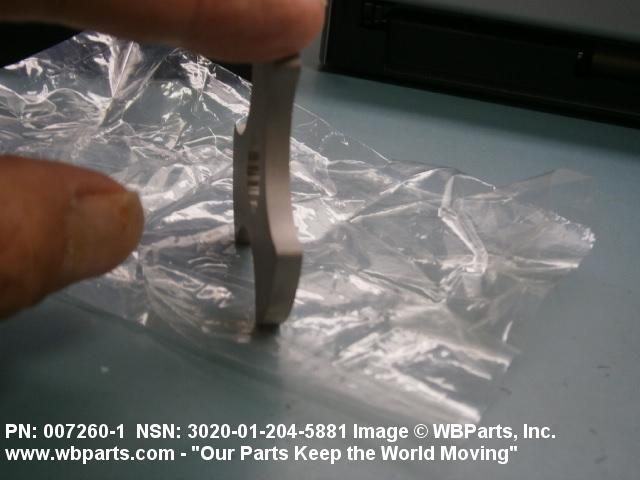

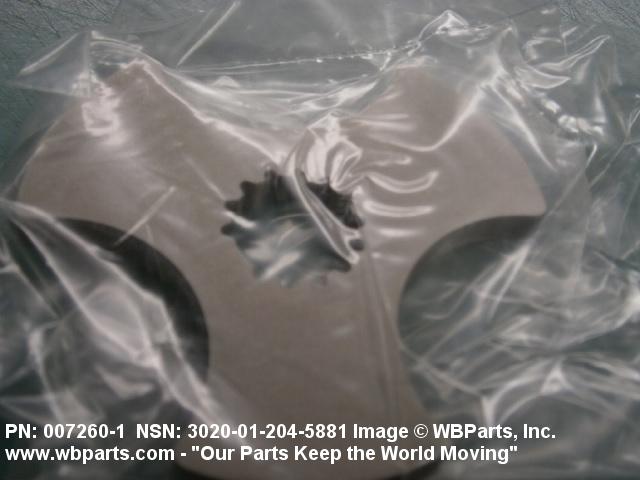

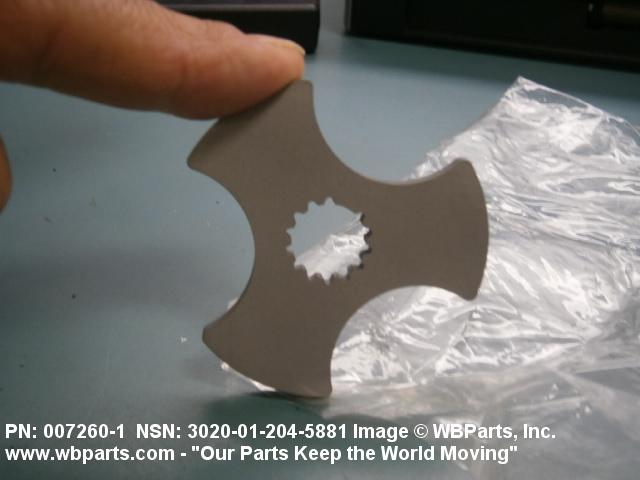

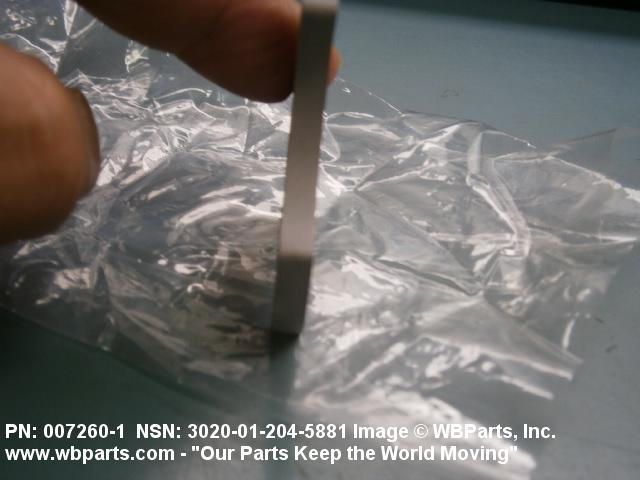

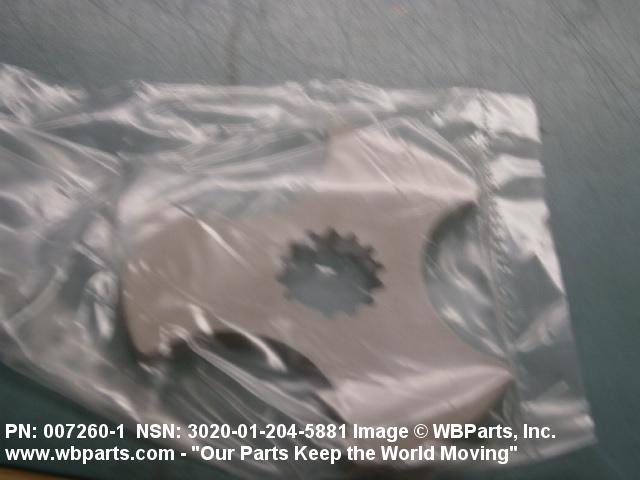

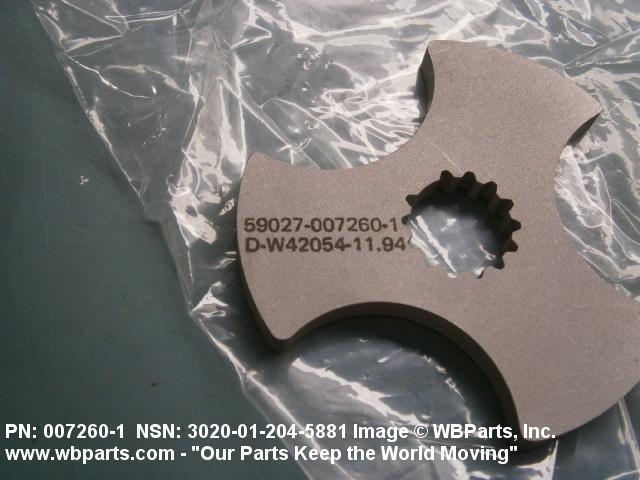

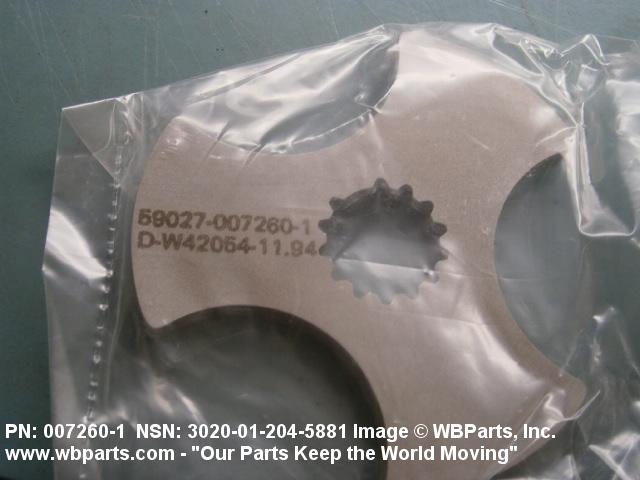

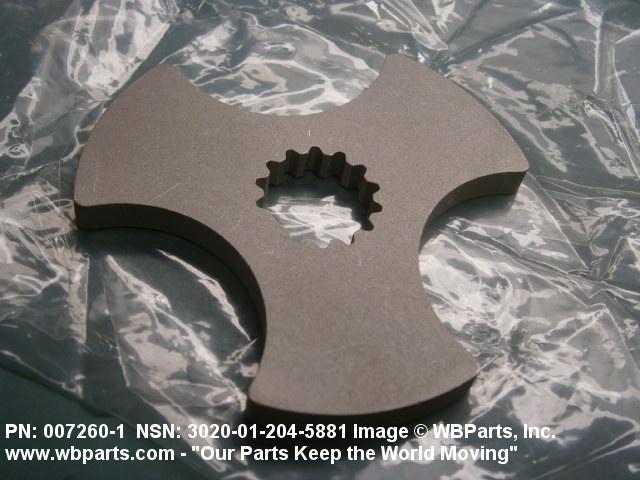

Drawings & Photos | NSN 3020-01-204-5881
Demand History | NSN 3020-01-204-5881
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 007260-1 | 2025-11-310 | 3 | DIBBS |
| 007260-1 | 2019-09-258 | 3 | DIBBS |
| 007260-1 | 2019-02-46 | 3 | DIBBS |
| 007260-1 | 2019-01-03 | 2 | DIBBS |
| 3020-01-204-5881 | 2018-11-330 | 2 | DIBBS |
| 3020-01-204-5881 | 2018-11-319 | 2 | DIBBS |
| 3020-01-204-5881 | 2018-10-274 | 3 | DIBBS |
| 3020-01-204-5881 | 2018-09-273 | 3 | DIBBS |
| 3020-01-204-5881 | 2018-03-61 | 1 | DIBBS |
| 3020-01-204-5881 | 2018-02-50 | 1 | DIBBS |
| 3020-01-204-5881 | 2018-01-26 | 1 | DIBBS |
| 3020-01-204-5881 | 2018-01-15 | 1 | DIBBS |
| 3020-01-204-5881 | 2013-09-267 | 3 | DIBBS |
| 3020-01-204-5881 | 2013-09-259 | 10 | United States |
| 3020-01-204-5881 | 2013-08-226 | 10 | DIBBS |
| 3020-01-204-5881 | 2013-05-143 | 1 | DIBBS |
| 3020-01-204-5881 | 2013-03-74 | 6 | DIBBS |
| 3020-01-204-5881 | 2013-03-66 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-204-5881
Related Products | NSN 3020-01-204-5881
Technical Data | NSN 3020-01-204-5881
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 PLAIN |
| OUTSIDE DIAMETER | 2.362 INCHES NOMINAL |
| PITCH DIAMETER | 2.362 INCHES NOMINAL |
| FACE WIDTH | 0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| TEETH ROW QUANTITY | 1 |
| TEETH QUANTITY PER ROW | 3 |
| MATERIAL | STEEL, AMS 5643 |
| HARDNESS RATING TEST METHOD | NOT RATED |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35, TYPE 2 |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | INVOLUTE SPLINE |
| COUNTERBORE FEATURE | NOT INCLUDED |
| SPLINE QUANTITY | 14 |
| SPLINE MAJOR DIAMETER | 0.644 INCHES NOMINAL |
| SPLINE MINOR DIAMETER | 0.544 INCHES MINIMUM AND 0.549 INCHES MAXIMUM |
| SPLINE LENGTH | 0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SPLINE PITCH DIAMETER | 0.583 INCHES NOMINAL |
| MANUFACTURERS CODE | 59027 |
| DESIGN CONTROL REFERENCE | 007260-1 |
Restrictions/Controls & Freight Information | NSN 3020-01-204-5881
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 117020 | CHAIN AND SPROCKET DRIVES/WHEELS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-204-5881
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
