Product Details | SPUR GEAR
3020-01-228-9264 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 12323335, 12334277, 3020-01-228-9264, 01-228-9264, 3020012289264, 012289264
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 22 MAR 1986 | 01-228-9264 | 05466 ( GEAR, SPUR ) |

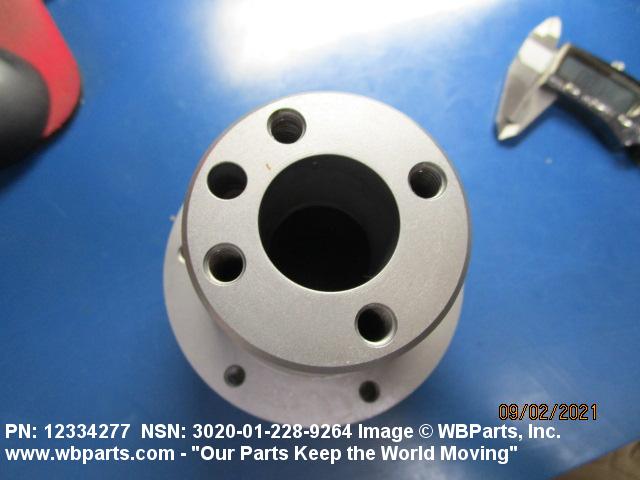

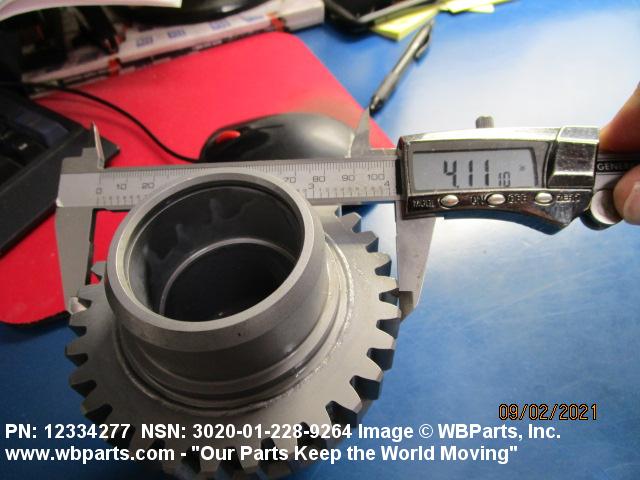

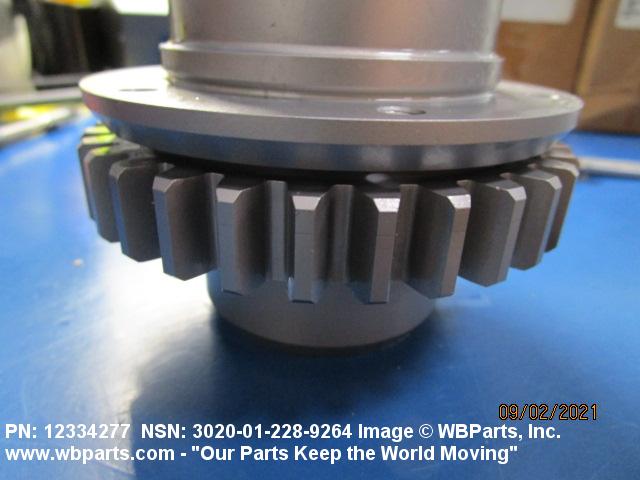

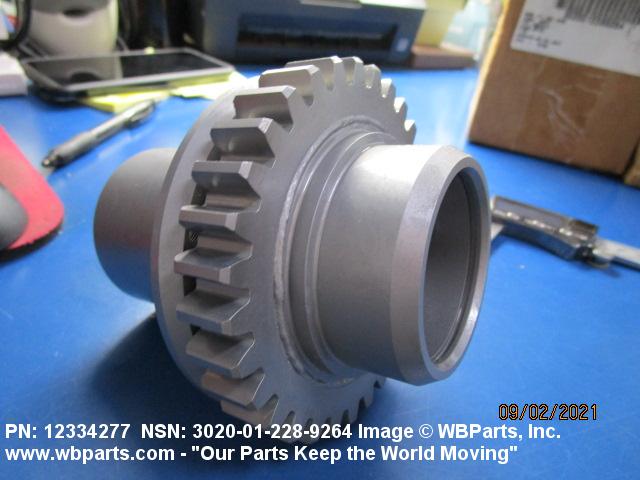

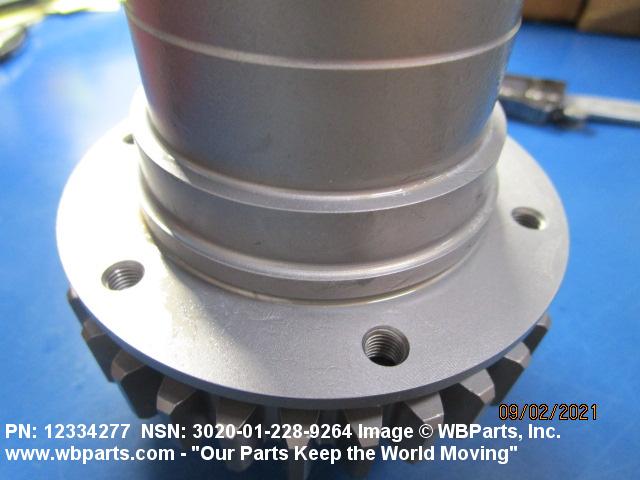

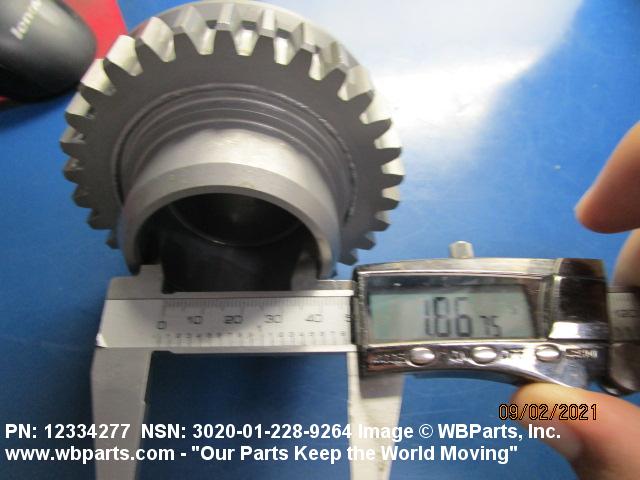

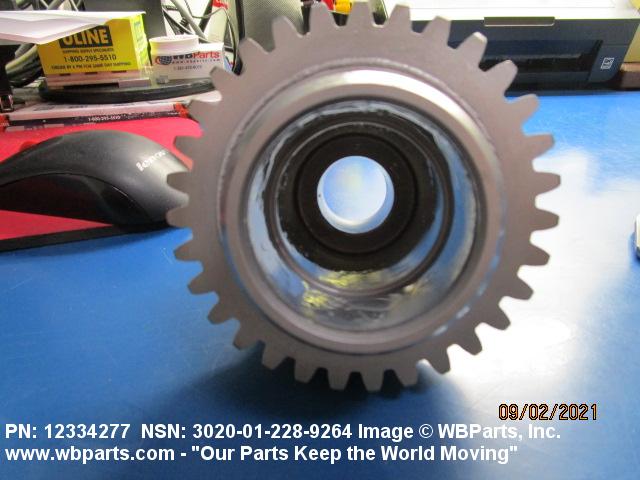

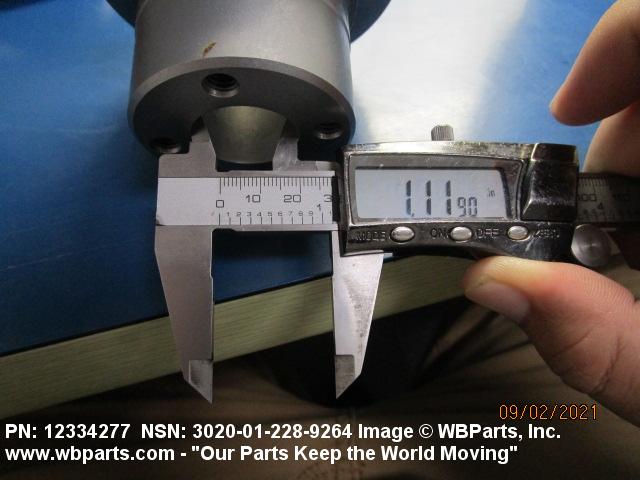

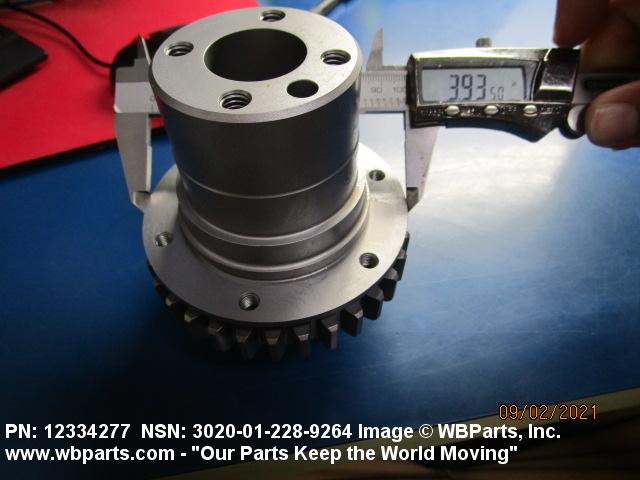

Drawings & Photos | NSN 3020-01-228-9264
Demand History | NSN 3020-01-228-9264
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-228-9264 | 2024-03-81 | 1 | Germany |
| 3020-01-228-9264 | 2021-08-237 | 3 | Germany |
| 3020-01-228-9264 | 2021-04-119 | 2 | Germany |
| 3020-01-228-9264 | 2008-05-127 | 327 | DIBBS |
| 3020-01-228-9264 | 2008-02-50 | 373 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-228-9264
Related Products | NSN 3020-01-228-9264
Technical Data | NSN 3020-01-228-9264
| Characteristic | Specifications |
|---|---|
| END NOMINAL DIAMETER | 2.332 INCHES FIRST END |
| THIRD STEP NOMINAL DIAMETER | 2.780 INCHES FIRST END |
| THIRD STEP NOMINAL LENGTH | 0.250 INCHES FIRST END |
| COUNTERBORE NOMINAL DIAMETER | 1.874 INCHES FIRST COUNTERBORE, SECOND END |
| TEETH QUANTITY | 31 |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.313 INCHES AXIALLY THROUGH HUB, FIRST END |
| BORE STYLE | W/STEPPED COUNTERBORE COUNTER BORE, SECOND END |
| COUNTERBORE NOMINAL DEPTH | 1.970 INCHES SECOND COUNTERBORE, SECOND END |
| FACE NOMINAL WIDTH | 0.625 INCHES |
| END NOMINAL DIAMETER | 2.363 INCHES SECOND END |
| NOMINAL OUTSIDE DIAMETER | 4.120 INCHES |
| COUNTERBORE NOMINAL DEPTH | 1.150 INCHES FIRST COUNTERBORE, SECOND END |
| FIRST STEP NOMINAL DIAMETER | 2.363 INCHES FIRST END |
| COUNTERBORE NOMINAL DIAMETER | 1.750 INCHES SECOND COUNTERBORE, SECOND END |
| MOUNTING HOLE TYPE AND QUANTITY | 4 THREADED AXIALLY THROUGH HUB, FIRST END |
| END NOMINAL LENGTH | 0.921 INCHES SECOND END |
| MATERIAL | STEEL OVERALL |
| PITCH DIAMETER | 3.8750 INCHES NOMINAL |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC AXIALLY THROUGH HUB, FIRST END |
| FIRST STEP NOMINAL LENGTH | 0.201 INCHES SECOND END |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 1.750 INCHES AXIALLY THROUGH HUB, FIRST END |
| HUB STYLE DESIGNATOR | 3 STEPS FIRST END |
| FIRST STEP NOMINAL DIAMETER | 2.620 INCHES SECOND END |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 1.150 INCHES SECOND END |
| FIRST STEP NOMINAL LENGTH | 0.690 INCHES FIRST END |
| SECOND STEP NOMINAL LENGTH | 0.433 INCHES FIRST END |
| PRESSURE ANGLE | 20.0000 DEGREES |
| BODY STYLE | PLAIN, SOLID |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 2.813 INCHES FIRST END |
| SPECIAL FEATURES | FLANGE BETWEEN GEAR FACE AND 3RD STEP OF 1ST END W/6 EQ SPACED THD HOLES,1/4-28UNF-2B |
| HUB STYLE DESIGNATOR | 1 STEP SECOND END |
| ATTACHMENT METHOD | MOUNTING HOLE |
| END NOMINAL LENGTH | 1.060 INCHES FIRST END |
| STYLE DESIGNATOR | PROTRUDING HUBS |
| BORE NOMINAL DIAMETER | 1.120 INCHES FIRST END |
| SECOND STEP NOMINAL DIAMETER | 2.620 INCHES FIRST END |
