NSN 3020-01-241-5637 1353AS122, 1353AS1221, 1353AS122-1
Product Details | GROOVE PULLEY
3020-01-241-5637 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 1353AS122, 1353AS1221, 1353AS122-1, 135AS1221, 135AS122-1, 3020-01-241-5637, 01-241-5637, 3020012415637, 012415637
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 SEP 1986 | 01-241-5637 | 08109 ( PULLEY, GROOVE ) |

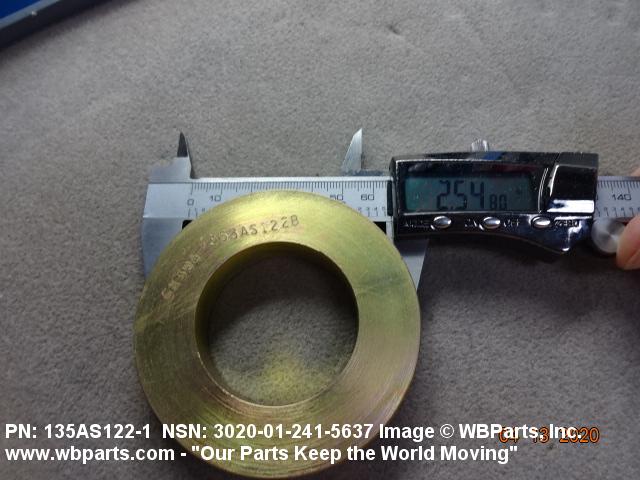

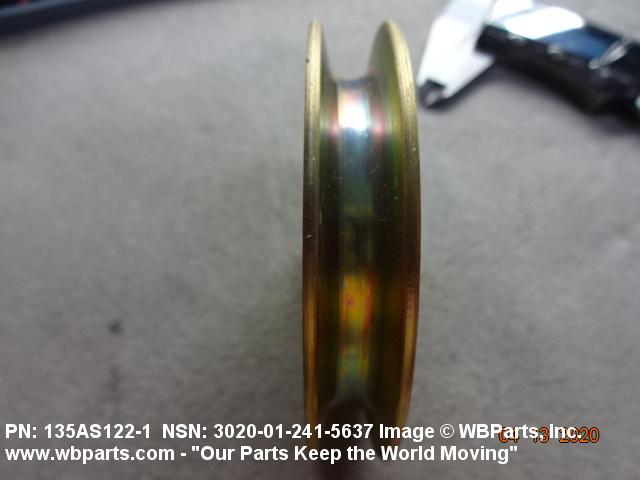

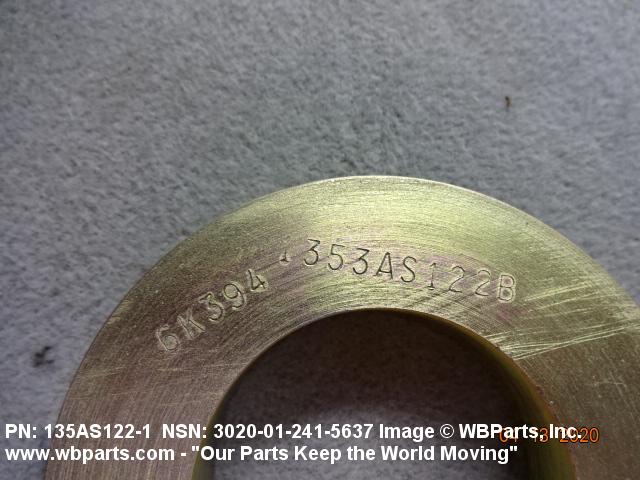

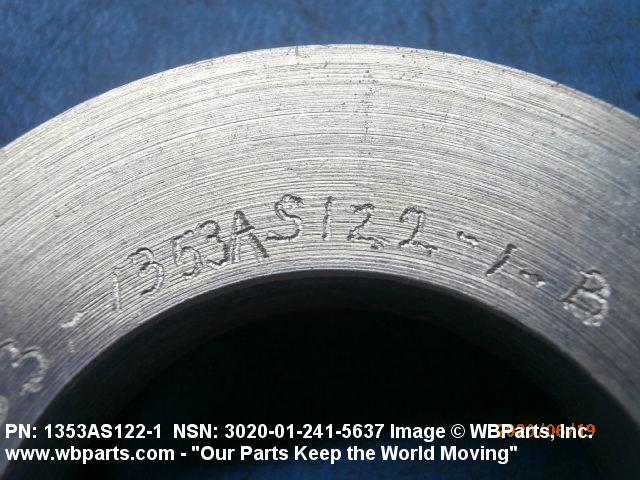

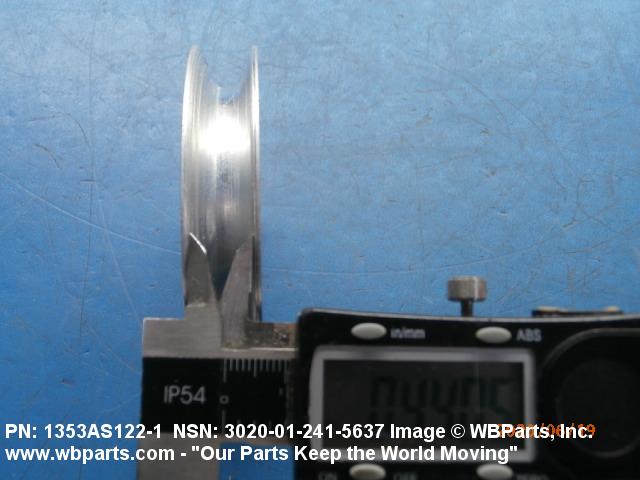

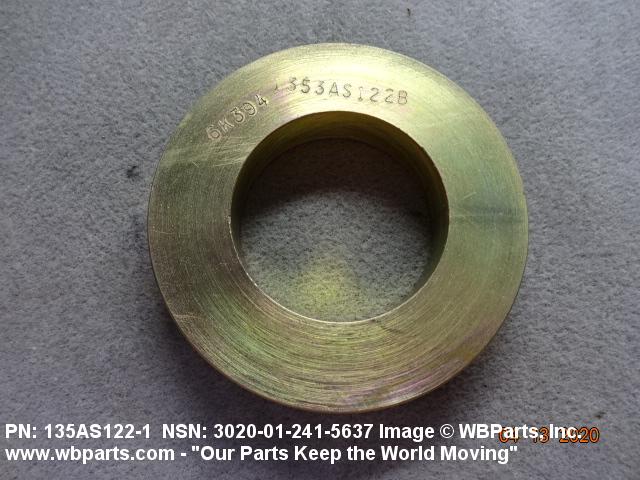

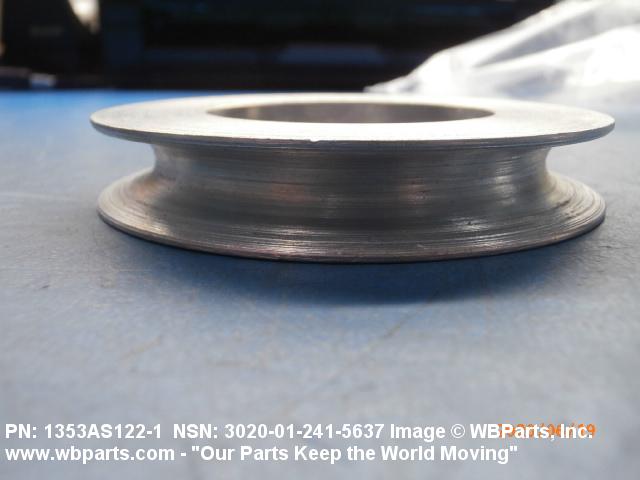

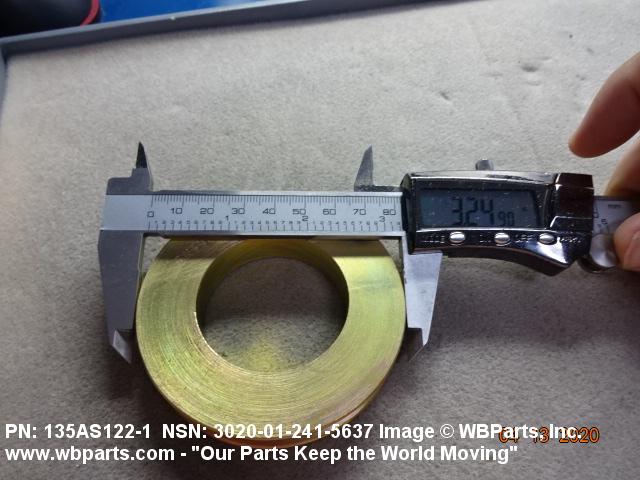

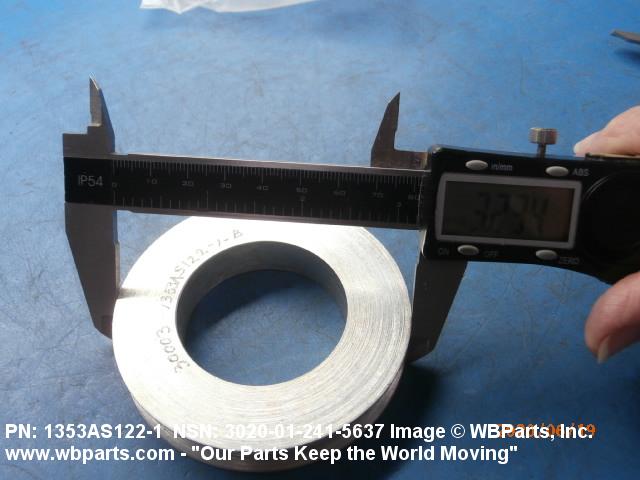

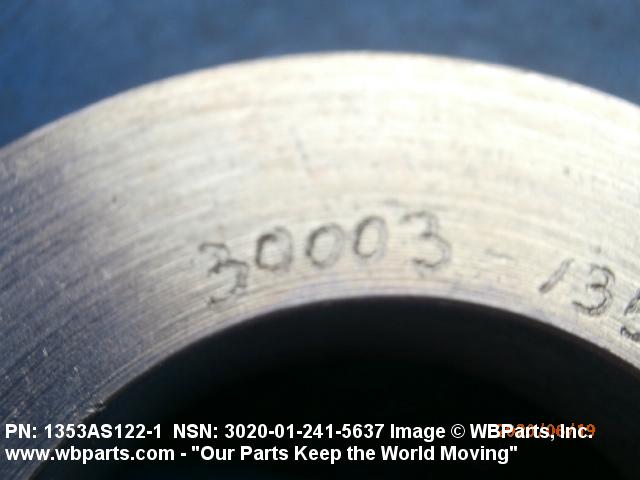

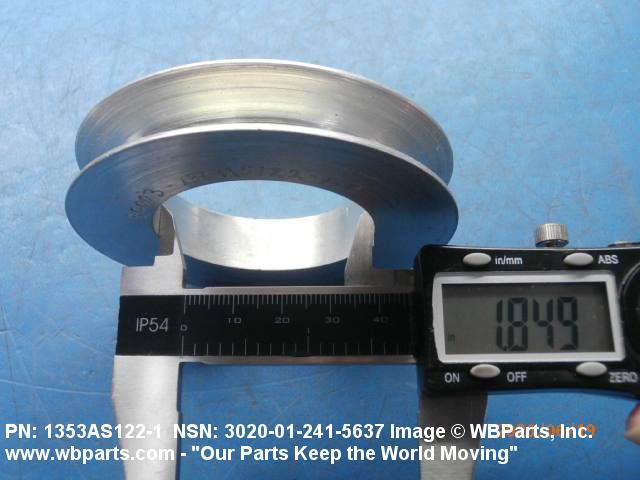

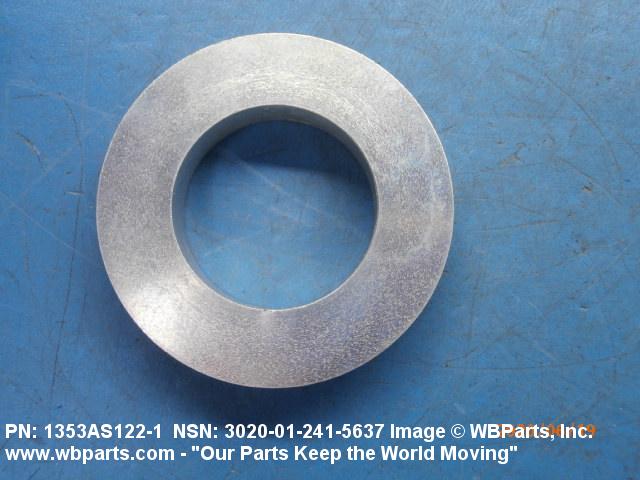

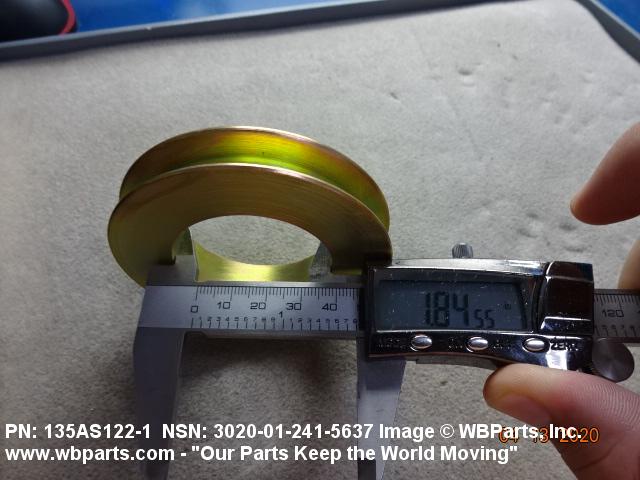

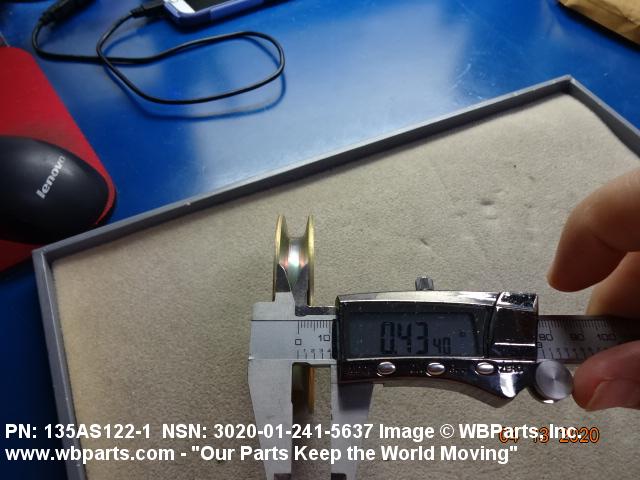

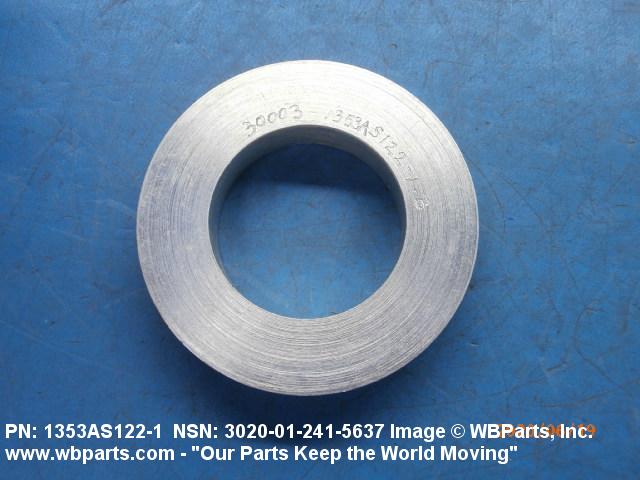

Drawings & Photos | NSN 3020-01-241-5637
Demand History | NSN 3020-01-241-5637
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-241-5637 | 2023-04-99 | 177 | DIBBS |
| 3020-01-241-5637 | 2022-08-214 | 114 | DIBBS |
| 1353AS1221 | 2022-06-152 | 1 | Malaysia |
| 1353AS1221 | 2020-05-132 | 1 | Malaysia |
| 1353AS1221 | 2020-03-72 | 2 | Malaysia |
| 3020-01-241-5637 | 2017-03-73 | 113 | DIBBS |
| 3020-01-241-5637 | 2017-03-61 | 113 | DIBBS |
| 3020-01-241-5637 | 2015-10-291 | 105 | DIBBS |
| 3020-01-241-5637 | 2015-08-216 | 104 | DIBBS |
| 1353AS1221 | 2011-02-40 | 1 | US |
| 3020-01-241-5637 | 2008-06-161 | 191 | DIBBS |
| 3020-01-241-5637 | 2007-10-278 | 97 | DIBBS |
Cross Reference | NSN 3020-01-241-5637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1353AS122 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 1353AS122-1 | 28638 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 1.3.1 BLDG 562-1 |
| 1353AS122-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 1353AS122-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 135AS122-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-241-5637
Related Products | NSN 3020-01-241-5637
Technical Data | NSN 3020-01-241-5637
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 PLAIN |
| OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| FACE WIDTH | 0.562 INCHES NOMINAL |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.375 INCHES NOMINAL |
| GROOVE WIDTH | 0.439 INCHES NOMINAL |
| GROOVE RADIUS | 0.156 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.850 INCHES NOMINAL |
| BORE LENGTH | 0.562 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | F/A-18 HORNET AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 3020-01-241-5637
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127320 | PULLEYS/SHEAVES,NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-241-5637
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
