NSN 3020-01-287-7720 S43-OFFSET LINK, S43OFFSETLINK, 01-287-7720
Product Details | PINTLE CHAIN LINK
3020-01-287-7720 A component of a CHAIN, PINTLE consisting of offset sidebars and a rollerless bushing cast as one piece. The end opposite the rollerless bushing contains a connecting pin.
Part Alternates: S43-OFFSET LINK, S43OFFSETLINK, 3020-01-287-7720, 01-287-7720, 3020012877720, 012877720
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 OCT 1988 | 01-287-7720 | 32596 ( LINK, PINTLE CHAIN ) |

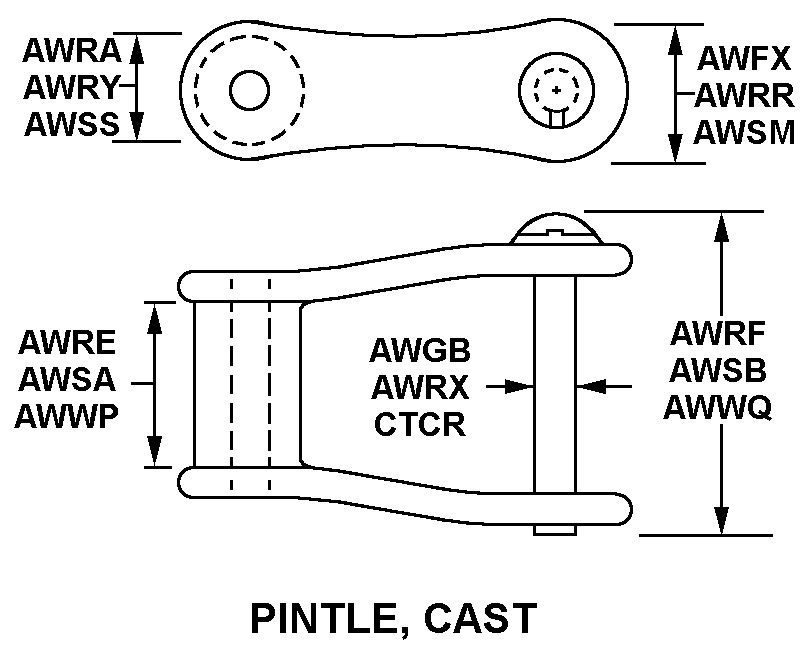

Drawings & Photos | NSN 3020-01-287-7720
Cross Reference | NSN 3020-01-287-7720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S43-OFFSET LINK | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-287-7720
Technical Data | NSN 3020-01-287-7720
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| LINK STYLE | G1 PINTLE, CAST |
| LINK PIN NOMINAL DIAMETER | 0.1250 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.2500 INCHES |
| LINK NOMINAL WIDTH | 0.5000 INCHES |
| LINK BUSHING NOMINAL OUTSIDE DIAMETER | 0.1875 INCHES |
| LINK PLATE WIDTH | 0.312 INCHES NOMINAL |
| END CONNECTION STYLE | 3 PIN HOLE |
| BUSHING HOLE DIAMETER | 0.1250 INCHES NOMINAL |
| PIN FASTENING METHOD | COTTER PIN |
| PIN OVERALL LENGTH | 0.4375 INCHES NOMINAL |
| MANUFACTURERS CODE | 71041 |
| DESIGN CONTROL REFERENCE | S43-OFFSET LINK |
Restrictions/Controls & Freight Information | NSN 3020-01-287-7720
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3020-01-287-7720
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
