NSN 3020-01-318-6283 51577603, 515776-03, 01-318-6283
Product Details | WORM GEAR
3020-01-318-6283 A gear with teeth on its outer surface in the form of helical threads.
Part Alternates: 51577603, 515776-03, 3020-01-318-6283, 01-318-6283, 3020013186283, 013186283
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 21 APR 1990 | 01-318-6283 | 05467 ( GEAR, WORM ) |

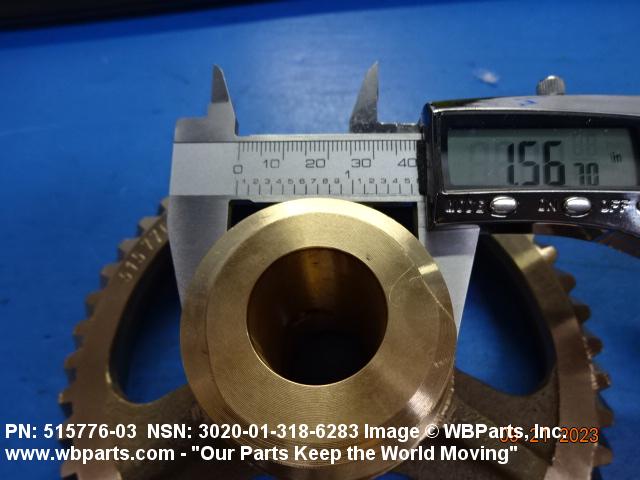

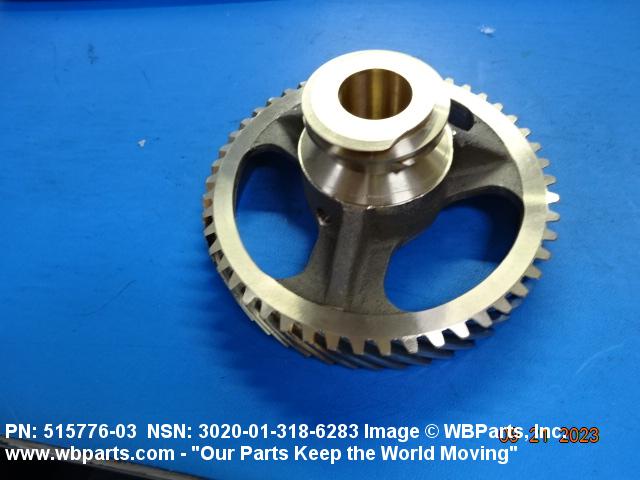

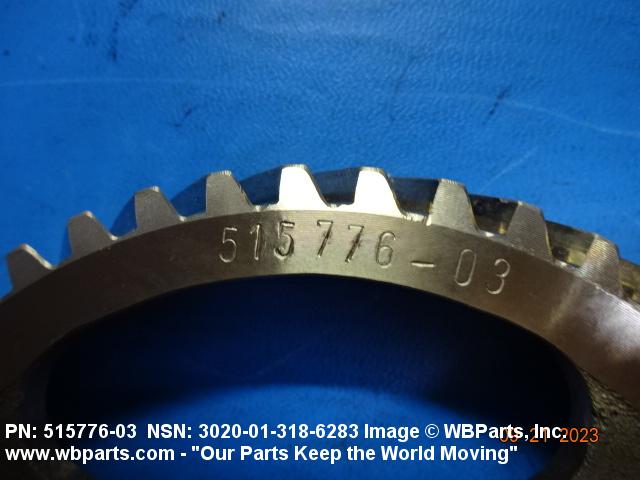

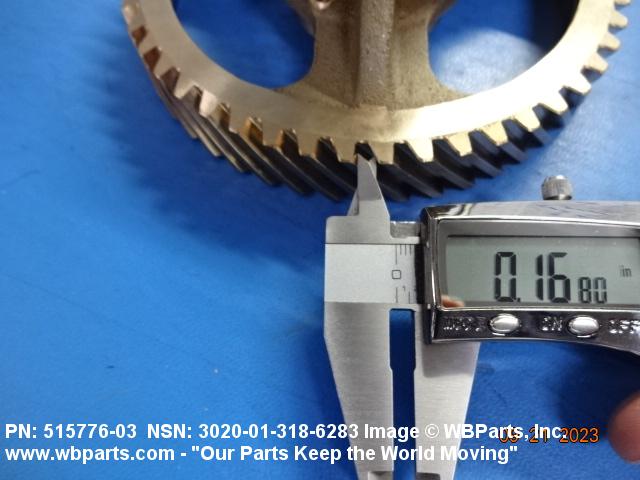

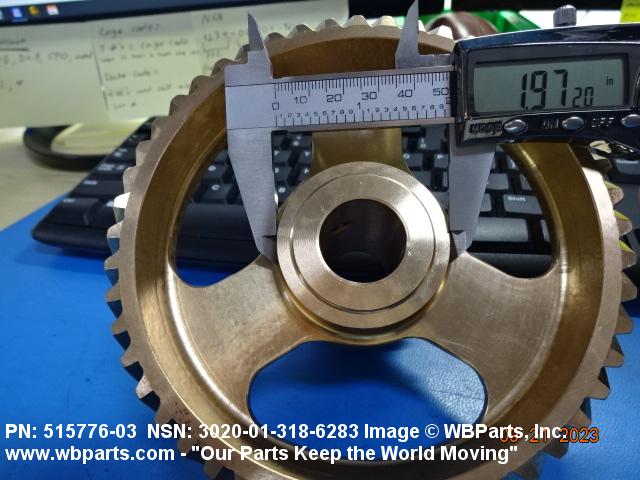

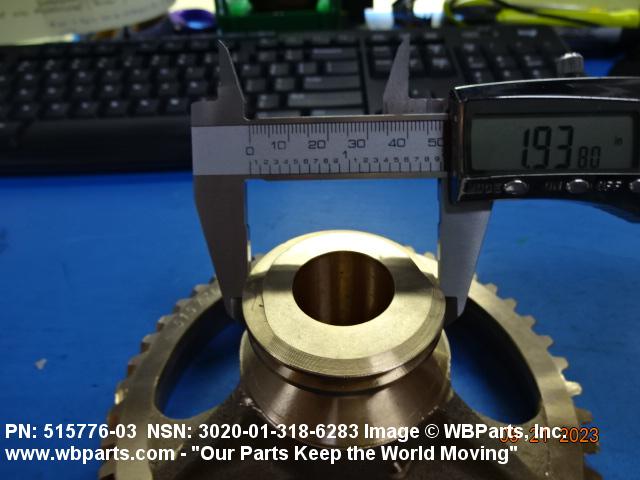

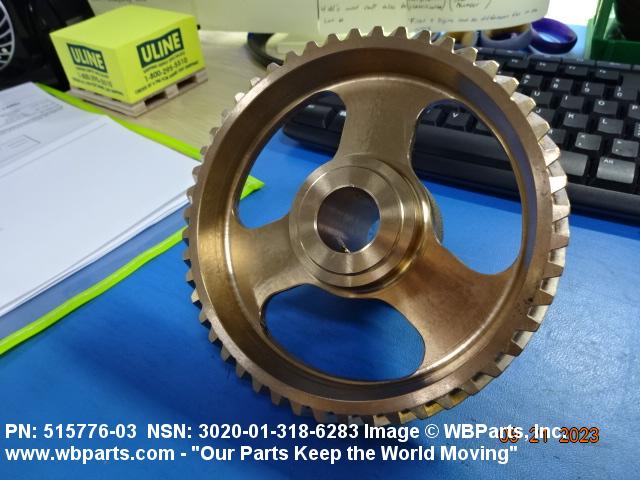

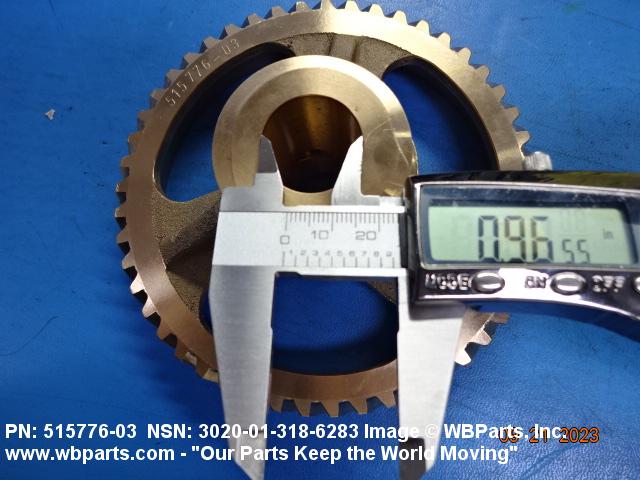

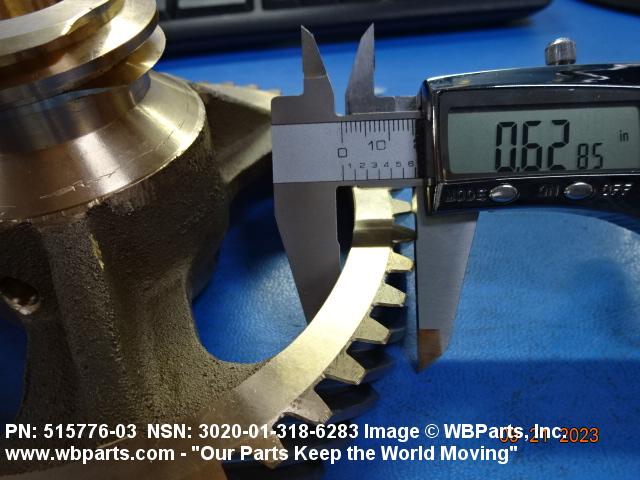

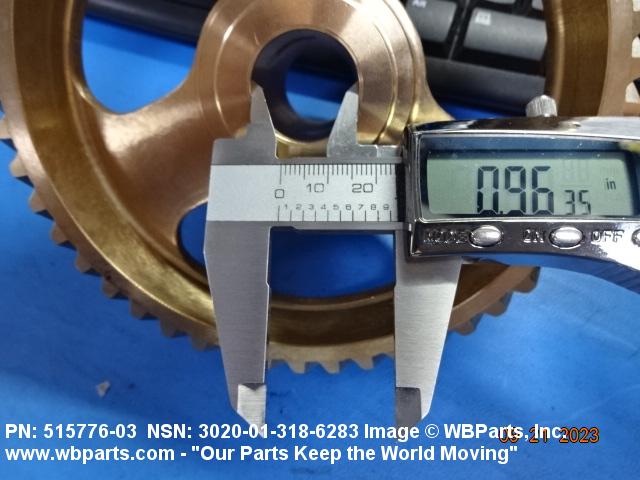

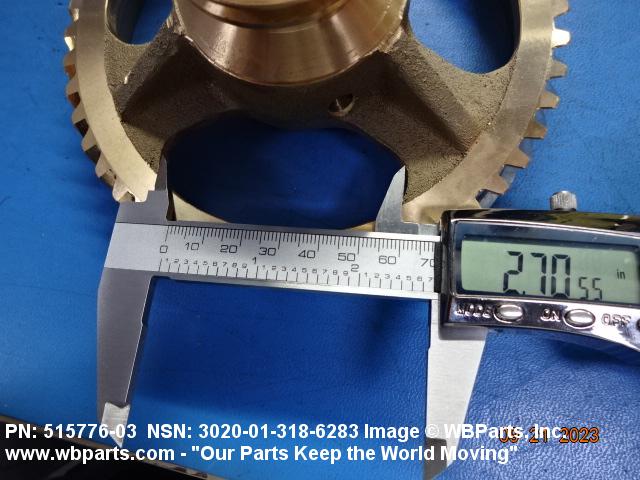

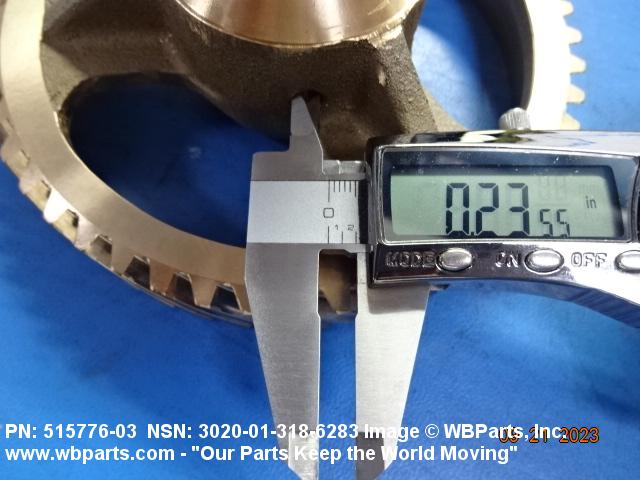

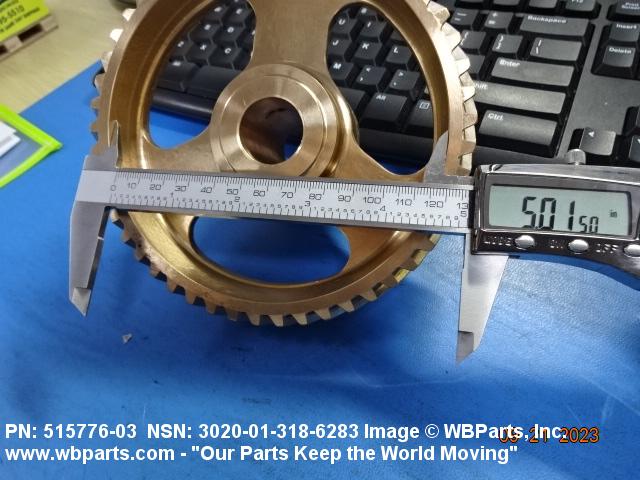

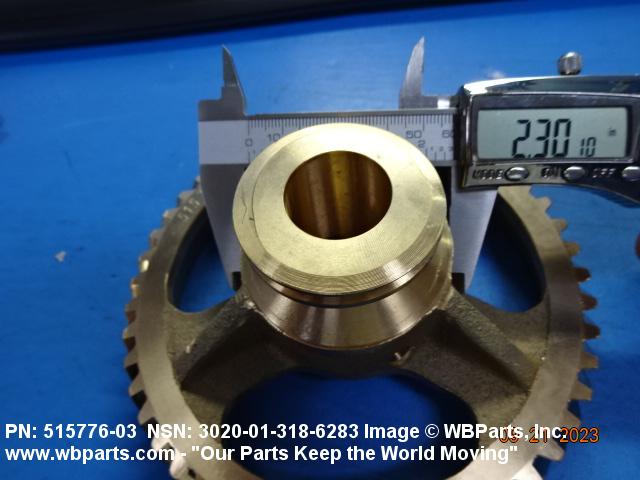

Drawings & Photos | NSN 3020-01-318-6283
Demand History | NSN 3020-01-318-6283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 51577603 | 2025-05-126 | 2 | us |
| 515776-03 | 2024-02-56 | 1 | DIBBS |
| 51577603 | 2023-11-325 | 2 | US |
| 3020-01-318-6283 | 2023-07-207 | 1 | United States |
| 51577603 | 2023-04-96 | 1 | US |
| 51577603 | 2022-07-187 | 1 | US |
| 51577603 | 2022-07-186 | 1 | SA |
| 51577603 | 2020-11-325 | 1 | IN |
| 3020-01-318-6283 | 2018-07-189 | 2 | DIBBS |
| 3020-01-318-6283 | 2018-06-177 | 5 | DIBBS |
| 3020-01-318-6283 | 2017-09-249 | 3 | DIBBS |
| 3020-01-318-6283 | 2017-08-236 | 3 | DIBBS |
| 3020-01-318-6283 | 2013-06-164 | 1 | DIBBS |
| 51577603 | 2008-09-274 | 1 | EC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-318-6283
Related Products | NSN 3020-01-318-6283
Technical Data | NSN 3020-01-318-6283
| Characteristic | Specifications |
|---|---|
| FACE TYPE | CONCAVE |
| THREAD FORM DIRECTION | RIGHT-HAND |
| STYLE DESIGNATOR | 3 RECESSED HUBS |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| III END ITEM IDENTIFICATION | PURIFIER,ALFA-LAVAL INC,MODEL NO. MAB-104B-24-60 |
Restrictions/Controls & Freight Information | NSN 3020-01-318-6283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-318-6283
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
