NSN 3020-01-419-0584 FLA045, FLA-045, 7C805476
Product Details | CABLE CHAIN
3020-01-419-0584 A flexible mechanical device consisting of one or more rows of cast or stamped links without side plates or rollers. The links may be replacable by splicing. Excludes metallic chains and belts.
Part Alternates: FLA045, FLA-045, 7C805476, 7C8-05476, 7D30516816, 7D3-05168-16, 3020-01-419-0584, 01-419-0584, 3020014190584, 014190584
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 SEP 1995 | 01-419-0584 | 38128 ( CHAIN, CABLE ) |
Drawings & Photos | NSN 3020-01-419-0584
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-419-0584
Technical Data | NSN 3020-01-419-0584
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYURETHANE |
| NOMINAL PITCH DISTANCE | 0.157 INCHES |
| FIRST CHAIN LINK JACKET DIAMETER | 0.0800 INCHES |

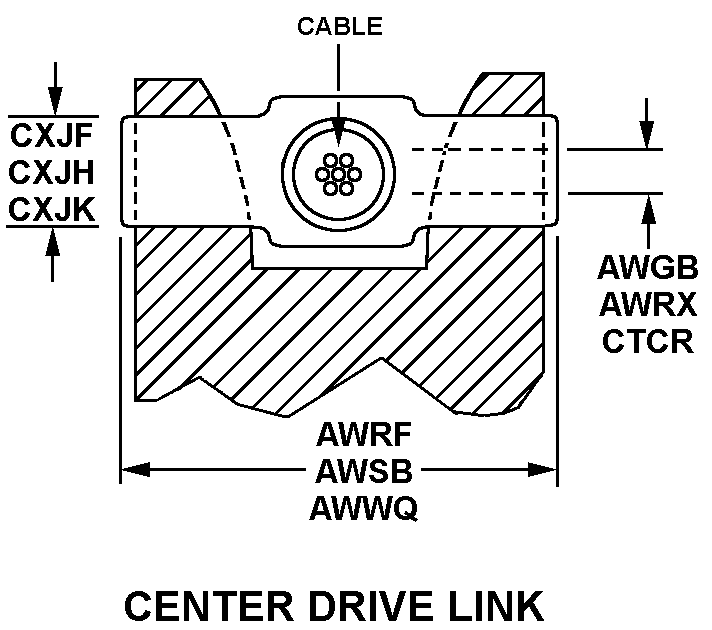

| LINK STYLE | J2 CENTER DRIVE LINK |
| LINK PIN NOMINAL DIAMETER | 0.0700 INCHES |
| LINK NOMINAL WIDTH | 0.2000 INCHES |
| LINK JACKET DIAMETER | 0.0700 INCHES |
| LINK ROW QUANTITY | 1 |
| EFFECTIVE LENGTH | 318.0600 INCHES NOMINAL |
| SPECIAL FEATURES | 45 PINS, 7.068 IN. PD, MATERIAL CLEAR, ORANGE CORE, CORE ARAMID FIBER,USED ON CABLE GUIDE DATA BOX ASSEMBLY, LAKE SHORE INC. |
| III END ITEM IDENTIFICATION | WEAPONS SYSTEM SEAWOLF CLASS SSN |
| MANUFACTURERS CODE | 34712 |
| MFR SOURCE CONTROLLING REFERENCE | 7C8-05476 |
Restrictions/Controls & Freight Information | NSN 3020-01-419-0584
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093940 | CHAINS BELTING/SPROCKET |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-419-0584
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
